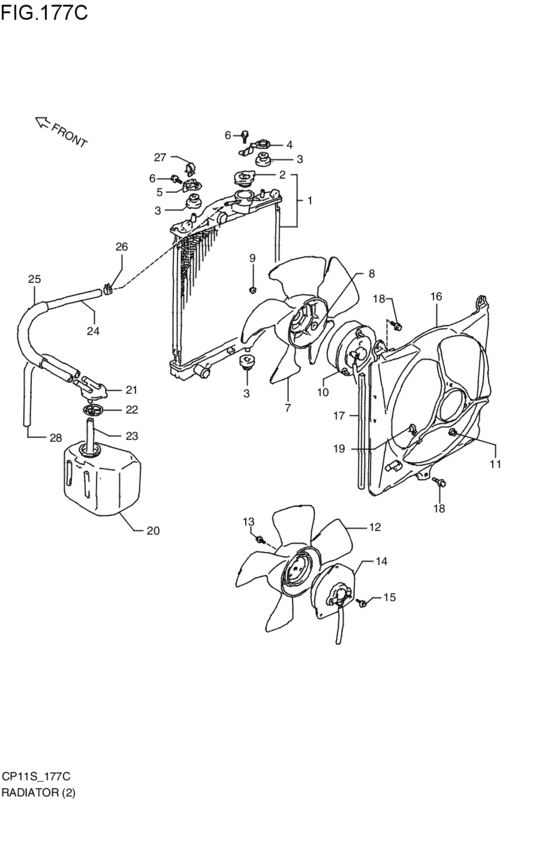

radiator (4WD; 1988-09-01~1989-02-01) Diagram Suzuki FRONTE
- Year
- 1988 - 1989
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- FI
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-70B00-000
ラジエータアッシ
4WD; 1988-09-01~1989-02-01 |
17700-70B00-000 |
— | ||
| replacement | |||||
|
1
|
1
17700-60D03-000 RADIATOR ASSY4WD; 1988-09-01~1989-02-01 |
17700-60D03-000 |
US $353.28 |
||
|
2
|
2
17920-78020-000
CAP,0.9
4WD; 1988-09-01~1989-02-01 |
17920-78020-000 |
— | ||
|
3
|
3
17879-70B00-000
マウント,ラジエータサポート
4WD; 1988-09-01~1989-02-01 |
17879-70B00-000 |
— | ||
| replacement | |||||
|
3
|
3
17879-70B01-000 MOUNT,RDTR SUPPORT4WD; 1988-09-01~1989-02-01 |
17879-70B01-000 |
US $13.44 |
||
|
4
|
4
17862-70B01-000
ブラケット,ラジエータサポート
4WD; 1988-09-01~1989-02-01 |
17862-70B01-000 |
— | ||
|
5
|
5
17861-70B01-000
ブラケット,ラジエータサポート
4WD; 1988-09-01~1989-02-01 |
17861-70B01-000 |
— | ||
| replacement | |||||
|
5
|
5
17860-60810-000
Bracket set,radiator supprot
4WD; 1988-09-01~1989-02-01 |
17860-60810-000 |
— | ||
|
6
|
6
01517-06103-000
ボルト
4WD; 1988-09-01~1989-02-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0610A-000 BOLT4WD; 1988-09-01~1989-02-01 |
01550-0610A-000 |
from US $0.80 |
||
|
6
|
6
01550-0610B-000 BoltBolt 4WD; 1988-09-01~1989-02-01 |
01550-0610B-000 |
from US $0.80 |
||
|
7
|
7
17111-53A00-000
ファン,エンジンクーリング
MITSUBA; 4WD; 1988-09-01~1989-02-01 |
17111-53A00-000 |
— | ||
|
8
|
8
17119-84100-000
WASHER,FAN
MITSUBA; 4WD; 1988-09-01~1989-02-01 |
17119-84100-000 |
— | ||
|
9
|
9
17118-53A00-000
ナット,ファン
MITSUBA; 4WD; 1988-09-01~1989-02-01 |
17118-53A00-000 |
— | ||
| replacements | |||||
|
9
|
9
08316-2005A-000 NUTMITSUBA; 4WD; 1988-09-01~1989-02-01 |
08316-2005A-000 |
from US $0.80 |
||
|
9
|
9
08316-26053-000
ナット
MITSUBA; 4WD; 1988-09-01~1989-02-01 |
08316-26053-000 |
— | ||
|
10
|
10
17120-71B00-000
モータアッシ
MITSUBA; 4WD; 1988-09-01~1989-02-01 |
17120-71B00-000 |
— | ||
|
11
|
11
08316-26063-000
Nut
MITSUBA; 4WD; 1988-09-01~1989-02-01 |
08316-26063-000 |
— | ||
| replacements | |||||
|
11
|
11
08316-2006A-000 NUTMITSUBA; 4WD; 1988-09-01~1989-02-01 |
08316-2006A-000 |
from US $0.76 |
||
|
11
|
11
08316-1006B-000 NUTMITSUBA; 4WD; 1988-09-01~1989-02-01 |
08316-1006B-000 |
from US $0.76 |
||
|
12
|
12
17111-71B20-000
ファン,エンジンクーリング
DENSO; 4WD; 1988-09-01~1989-02-01 |
17111-71B20-000 |
— | ||
|
13
|
13
17119-71B20-000
ボルト,モータ
DENSO; 4WD; 1988-09-01~1989-02-01 |
17119-71B20-000 |
— | ||
| replacements | |||||
|
13
|
13
02112-0406B-000 SCREWDENSO; 4WD; 1988-09-01~1989-02-01 |
02112-0406B-000 |
from US $0.76 |
||
|
13
|
13
02142-0508A-000 SCREWScrew, cap DENSO; 4WD; 1988-09-01~1989-02-01 |
02142-0508A-000 |
from US $0.76 |
||
|
13
|
13
17801-05A00-000
Bolt
DENSO; 4WD; 1988-09-01~1989-02-01 |
17801-05A00-000 |
— | ||
|
13
|
13
02112-04063-000
Screw
DENSO; 4WD; 1988-09-01~1989-02-01 |
02112-04063-000 |
— | ||
|
14
|
14
17120-71B20-000
モータ,ファン
DENSO; 4WD; 1988-09-01~1989-02-01 |
17120-71B20-000 |
— | ||
|
15
|
15
02112-75105-000
Screw
DENSO; 4WD; 1988-09-01~1989-02-01 |
02112-75105-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-7510A-000 SCREWDENSO; 4WD; 1988-09-01~1989-02-01 |
02112-7510A-000 |
from US $1.97 |
||
|
16
|
16
17760-71B00-000
シュラウド,ファン
4WD; 1988-09-01~1989-02-01 |
17760-71B00-000 |
— | ||
|
17
|
17
17799-84010-000
SEAL,FAN SHROUD
4WD; 1988-09-01~1989-02-01 |
17799-84010-000 |
— | ||
|
18
|
18
01517-06103-000
ボルト
4WD; 1988-09-01~1989-02-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0610A-000 BOLT4WD; 1988-09-01~1989-02-01 |
01550-0610A-000 |
from US $0.80 |
||
|
18
|
18
01550-0610B-000 BoltBolt 4WD; 1988-09-01~1989-02-01 |
01550-0610B-000 |
from US $0.80 |
||
|
19
|
19
09408-00061-000
Clamp, decomp read
4WD; 1988-09-01~1989-02-01 |
09408-00061-000 |
— | ||
| replacement | |||||
|
19
|
19
09403-08405-000 CLAMPClamp, decomp lead 4WD; 1988-09-01~1989-02-01 |
09403-08405-000 |
from US $3.47 |
||
|
20
|
20
17931-70B00-000
タンク,ウォータリザーバ
4WD; 1988-09-01~1989-02-01 |
17931-70B00-000 |
— | ||
| replacement | |||||
|
20
|
20
17931-70B10-000
TANK,WATER RESERVE
4WD; 1988-09-01~1989-02-01 |
17931-70B10-000 |
— | ||
|
21
|
21
17932-60B00-000
キャップ,ウォータリザーブタンク
4WD; 1988-09-01~1989-02-01 |
17932-60B00-000 |
— | ||
| replacement | |||||
|
21
|
21
17932-60B10-000 CAP,WATER RESERVE TANK4WD; 1988-09-01~1989-02-01 |
17932-60B10-000 |
from US $9.34 |
||
|
22
|
22
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap 4WD; 1988-09-01~1989-02-01 |
17933-60B00-000 |
from US $1.85 |
||
|
23
|
23
09352-70111-430
ホース,7X11X430
4WD; 1988-09-01~1989-02-01 |
09352-70111-430 |
— | ||
| replacement | |||||
|
23
|
23
09352-70111-600 HOSE(7X11X600)4WD; 1988-09-01~1989-02-01 |
09352-70111-600 |
from US $6.84 |
||
|
24
|
24
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) 4WD; 1988-09-01~1989-02-01 |
09352-70121-600 |
from US $4.84 |
||
|
25
|
25
13998-70B00-000
プロテクタ,ホース
L:165>120; 4WD; 1988-09-01~1989-02-01 |
13998-70B00-000 |
— | ||
| replacement | |||||
|
25
|
25
09352-13162-600 HOSE(13.5X16.5X600)Protector, seat damper L:165>120; 4WD; 1988-09-01~1989-02-01 |
09352-13162-600 |
from US $11.40 |
||
|
26
|
26
09401-11404-000
クリップ
4WD; 1988-09-01~1989-02-01 |
09401-11404-000 |
— | ||
| replacements | |||||
|
26
|
26
09401-11415-000 CLIP4WD; 1988-09-01~1989-02-01 |
09401-11415-000 |
from US $1.06 |
||
|
26
|
26
09401-11407-000
CLIP
4WD; 1988-09-01~1989-02-01 |
09401-11407-000 |
— | ||
|
27
|
27
09408-00030-000
Clip
4WD; 1988-09-01~1989-02-01 |
09408-00030-000 |
— | ||
| replacement | |||||
|
27
|
27
09403-13409-000 CLAMP4WD; 1988-09-01~1989-02-01 |
09403-13409-000 |
US $14 |
||
|
28
|
28
09352-70111-430
ホース,7X11X430
4WD; 1988-09-01~1989-02-01 |
09352-70111-430 |
— | ||
| replacement | |||||
|
28
|
28
09352-70111-600 HOSE(7X11X600)4WD; 1988-09-01~1989-02-01 |
09352-70111-600 |
from US $6.84 |
||
