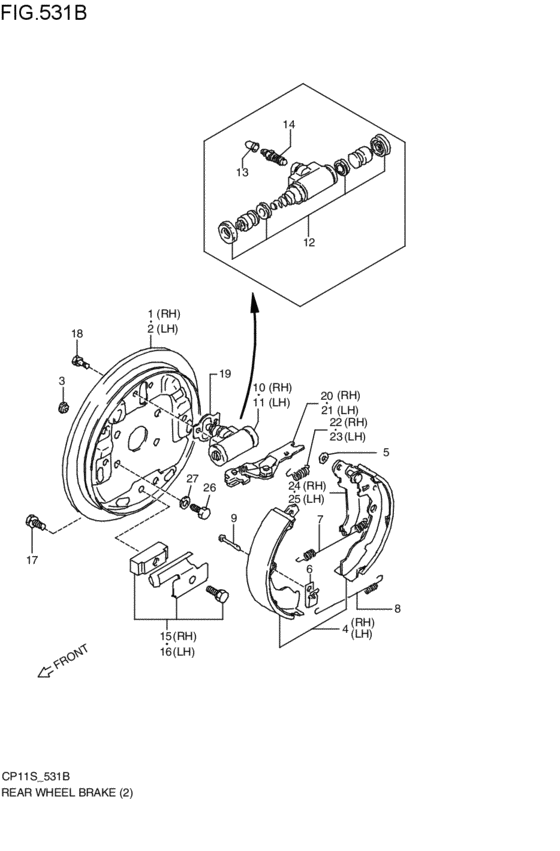

rear wheel brakes (4WD; 1988-09-01~1989-02-01) Diagram Suzuki FRONTE
- Year
- 1988 - 1989
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- FI
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53101-52A10-000
プレート,リヤブレーキバッキング,ライト
4WD; 1988-09-01~1989-02-01 |
53101-52A10-000 |
— | ||
| replacement | |||||
|
1
|
1
53101-52A13-000
プレート,リヤブレーキバッキング,ライト
4WD; 1988-09-01~1989-02-01 |
53101-52A13-000 |
— | ||
|
2
|
2
53102-52A10-000
プレート,リヤブレーキバッキング,レフト
4WD; 1988-09-01~1989-02-01 |
53102-52A10-000 |
— | ||
| replacement | |||||
|
2
|
2
53102-52A13-000
プレート,リヤブレーキバッキング,レフト
4WD; 1988-09-01~1989-02-01 |
53102-52A13-000 |
— | ||
|
3
|
3
53141-84010-000 PLUG,BACKING PLATE4WD; 1988-09-01~1989-02-01 |
53141-84010-000 |
from US $1.52 |
||
|
4
|
4
53820-70B60-000
シューセット,リヤブレーキ,ライト
4WD; 1988-09-01~1989-02-01 |
53820-70B60-000 |
— | ||
| replacement | |||||
|
4
|
4
53800-70811-000 SHOE SET,REAR BRAKE4WD; 1988-09-01~1989-02-01 |
53800-70811-000 |
US $436.48 |
||
|
4
|
4
53830-70B60-000
シューセット,リヤブレーキ,レフト
4WD; 1988-09-01~1989-02-01 |
53830-70B60-000 |
— | ||
|
5
|
5
09148-06005-000
Nut seat moldin
4WD; 1988-09-01~1989-02-01 |
09148-06005-000 |
— | ||
| replacement | |||||
|
5
|
5
09148-06008-000 NUTNut, adjuster knob 4WD; 1988-09-01~1989-02-01 |
09148-06008-000 |
from US $0.83 |
||
|
6
|
6
52243-84010-000 SPRING,SHOE HOLD DOWN4WD; 1988-09-01~1989-02-01 |
52243-84010-000 |
US $2.74 |
||
|
7
|
7
53231-84010-000 SPRING,SHOE RETURN UPR4WD; 1988-09-01~1989-02-01 |
53231-84010-000 |
US $7.36 |
||
|
8
|
8
53232-70B00-000
スプリング,シューリターン
4WD; 1988-09-01~1989-02-01 |
53232-70B00-000 |
— | ||
| replacement | |||||
|
8
|
8
53232-70G00-000 SPRING,SHOE RETURN LOWER4WD; 1988-09-01~1989-02-01 |
53232-70G00-000 |
US $5.47 |
||
|
9
|
9
53241-84210-000
PIN,SHOE HOLD DOWN
4WD; 1988-09-01~1989-02-01 |
53241-84210-000 |
— | ||
|
10
|
10
53401-70B10-000
シリンダアッシ,リヤホイール,ライト
4WD; 1988-09-01~1989-02-01 |
53401-70B10-000 |
— | ||
| replacement | |||||
|
10
|
10
53401-70B12-000
CYLINDER ASSY,RR WHEEL,R
4WD; 1988-09-01~1989-02-01 |
53401-70B12-000 |
— | ||
|
11
|
11
53402-70B10-000
シリンダアッシ,リヤホイール,レフト
4WD; 1988-09-01~1989-02-01 |
53402-70B10-000 |
— | ||
| replacement | |||||
|
11
|
11
53402-70B12-000 CYLINDER ASSY,RR WHEEL,L4WD; 1988-09-01~1989-02-01 |
53402-70B12-000 |
US $230 |
||
|
12
|
12
53810-70B10-000
カップ/ブーツセット
4WD; 1988-09-01~1989-02-01 |
53810-70B10-000 |
— | ||
| replacement | |||||
|
12
|
12
53810-70B11-000
PISTON CUP&BOOT SET
4WD; 1988-09-01~1989-02-01 |
53810-70B11-000 |
— | ||
|
13
|
13
52474-60010-000
キャップ,ブリーダプラグ
4WD; 1988-09-01~1989-02-01 |
52474-60010-000 |
— | ||
| replacements | |||||
|
13
|
13
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 4WD; 1988-09-01~1989-02-01 |
55156-66310-000 |
from US $1.98 |
||
|
13
|
13
59122-18410-000
Cap, bleeder plug
4WD; 1988-09-01~1989-02-01 |
59122-18410-000 |
— | ||
|
14
|
14
53473-84010-000 PLUG,BLEEDER4WD; 1988-09-01~1989-02-01 |
53473-84010-000 |
US $45.63 |
||
|
15
|
15
53620-84210-000
アンカアッシ,リヤブレーキ,レフト
4WD; 1988-09-01~1989-02-01 |
53620-84210-000 |
— | ||
|
16
|
16
53610-84210-000
アンカアッシ,リヤブレーキ,ライト
4WD; 1988-09-01~1989-02-01 |
53610-84210-000 |
— | ||
|
17
|
17
52477-84010-000
ボルト
4WD; 1988-09-01~1989-02-01 |
52477-84010-000 |
— | ||
| replacements | |||||
|
17
|
17
01580-0816A-000 Bolt4WD; 1988-09-01~1989-02-01 |
01580-0816A-000 |
from US $0.96 |
||
|
17
|
17
01580-08163-000
Bolt, bracket
4WD; 1988-09-01~1989-02-01 |
01580-08163-000 |
— | ||
|
18
|
18
52476-84010-000
ボルト
4WD; 1988-09-01~1989-02-01 |
52476-84010-000 |
— | ||
| replacements | |||||
|
18
|
18
01570-0610A-000 Bolt4WD; 1988-09-01~1989-02-01 |
01570-0610A-000 |
from US $2.48 |
||
|
18
|
18
01570-06103-000
Bolt
4WD; 1988-09-01~1989-02-01 |
01570-06103-000 |
— | ||
|
19
|
19
53446-50A10-000 SEAT,REAR WHEEL CYLINDER4WD; 1988-09-01~1989-02-01 |
53446-50A10-000 |
US $2.29 |
||
|
20
|
20
53702-84010-000 STRUT ASSY,PARKING SHOE4WD; 1988-09-01~1989-02-01 |
53702-84010-000 |
US $50.40 |
||
|
21
|
21
53701-84010-000 STRUT ASSY,PARKING SHOE4WD; 1988-09-01~1989-02-01 |
53701-84010-000 |
US $56 |
||
|
22
|
22
53716-84010-000 SPRING,STRUT SHOE RETURN R4WD; 1988-09-01~1989-02-01 |
53716-84010-000 |
US $2.24 |
||
|
23
|
23
53715-84010-000 SPRING,STRUT SHOE RETURN L4WD; 1988-09-01~1989-02-01 |
53715-84010-000 |
US $6.40 |
||
|
24
|
24
53751-50A10-000 LEVER,PARKING SHOEライト; 4WD; 1988-09-01~1989-02-01 |
53751-50A10-000 |
US $20.80 |
||
|
25
|
25
53761-50A10-000 LEVER,PARKING SHOEレフト; 4WD; 1988-09-01~1989-02-01 |
53761-50A10-000 |
US $21.60 |
||
|
26
|
26
09100-08265-000
ボルト,8X19
4WD; 1988-09-01~1989-02-01 |
09100-08265-000 |
— | ||
|
27
|
27
08321-31083-000
New Genuine Part
4WD; 1988-09-01~1989-02-01 |
08321-31083-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0108A-000 WASHER,LOCK4WD; 1988-09-01~1989-02-01 |
08321-0108A-000 |
from US $0.80 |
||
|
27
|
27
08321-0108B-000 WASHER,LOCK4WD; 1988-09-01~1989-02-01 |
08321-0108B-000 |
from US $0.76 |
||
