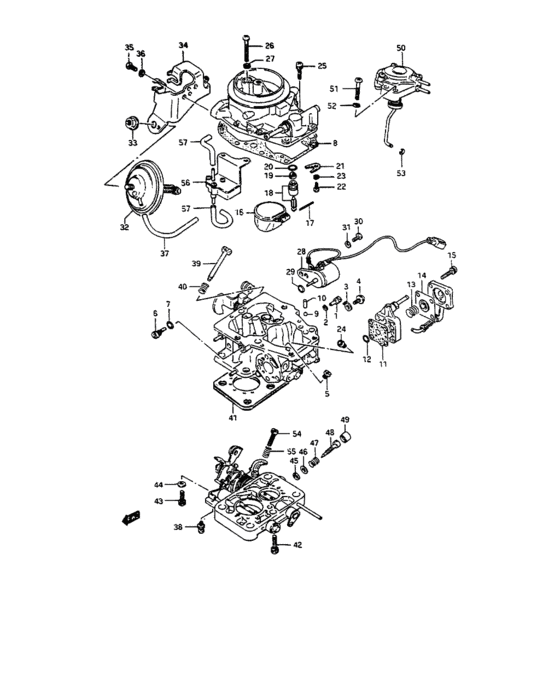

Carburetor (AT) Diagram Suzuki FRONTE
- Year
- -
- Sales region
- Pacific
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-84330-000
Carburetor assy
|
13200-84330-000 |
— | ||
|
1
|
1
09492-42013-000 JET,PILOT(41.3) |
09492-42013-000 |
US $9.64 |
||
|
2
|
2
13278-45010-000 O RINGO-ring |
13278-45010-000 |
from US $2.72 |
||
|
3
|
3
13398-78110-000 PLATE |
13398-78110-000 |
US $3.97 |
||
|
4
|
4
13397-81000-000
スクリュ
|
13397-81000-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
4
|
4
02112-05107-000 SCREWScrew, bracket |
02112-05107-000 |
from US $0.80 |
||
|
5
|
5
09491-33004-000 JET,MAIN(165)Jet, main (#165) |
09491-33004-000 |
from US $13.38 |
||
|
6
|
6
09492-60011-000 JET,PILOT(60)Jet, pilot (60) |
09492-60011-000 |
from US $9.64 |
||
|
7
|
7
13294-28010-000 O RING |
13294-28010-000 |
from US $2.65 |
||
|
8
|
8
13251-78100-000
Gasket, float chamber
|
13251-78100-000 |
— | ||
|
9
|
9
13596-18900-000 ボール |
13596-18900-000 |
US $2.71 |
||
| replacement | |||||
|
9
|
9
13322-84000-000 BALL |
13322-84000-000 |
US $4.34 |
||
|
10
|
10
13325-84000-000
ウエイト
|
13325-84000-000 |
— | ||
| replacement | |||||
|
10
|
10
13240-840T0-000 WEIGHT SET,PUMP |
13240-840T0-000 |
US $3.97 |
||
|
11
|
11
13363-84300-000
Gasket
|
13363-84300-000 |
— | ||
|
12
|
12
13516-65710-000 O-RING |
13516-65710-000 |
US $2.17 |
||
|
13
|
13
13494-37010-000 SPRING,ACCEL PUMP |
13494-37010-000 |
US $1.47 |
||
|
14
|
14
13491-79110-000
ダイヤフラム
|
13491-79110-000 |
— | ||
|
15
|
15
13601-04226-000
SCREW
|
13601-04226-000 |
— | ||
|
16
|
16
13319-84300-000
Float
|
13319-84300-000 |
— | ||
|
17
|
17
13254-78110-000
ピン,フロート
|
13254-78110-000 |
— | ||
|
18
|
18
13370-78110-000
バルブアッシ,ニードル
|
13370-78110-000 |
— | ||
|
19
|
19
13376-84110-000
13376-19f00
|
13376-84110-000 |
— | ||
| replacement | |||||
|
19
|
19
13376-19F00-000 FILTER |
13376-19F00-000 |
from US $5.47 |
||
|
20
|
20
13381-84020-000
ワッシャ
|
13381-84020-000 |
— | ||
|
20
|
20
13378-73000-000
ワッシャ
|
13378-73000-000 |
— | ||
|
20
|
20
13378-84110-000
ワッシャ
|
13378-84110-000 |
— | ||
|
20
|
20
13378-84100-000
ワッシャ
|
13378-84100-000 |
— | ||
|
21
|
21
13373-39110-000 PLATE |
13373-39110-000 |
from US $3.97 |
||
|
22
|
22
02112-04106-000
Screw
|
02112-04106-000 |
— | ||
| replacement | |||||
|
22
|
22
02112-0410A-000 SCREW |
02112-0410A-000 |
from US $2.04 |
||
|
23
|
23
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
24
|
24
09491-98004-000
Jet, main
|
09491-98004-000 |
— | ||
| replacement | |||||
|
24
|
24
09491-98007-000
JET,MAIN
|
09491-98007-000 |
— | ||
|
25
|
25
13601-05186-000
SCREW(5X18)
|
13601-05186-000 |
— | ||
|
26
|
26
02112-05306-000
Screw
|
02112-05306-000 |
— | ||
| replacement | |||||
|
26
|
26
02112-0530A-000 SCREW |
02112-0530A-000 |
from US $0.76 |
||
|
27
|
27
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
27
|
27
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
28
|
28
13260-84300-000
Valve assy, solenoid
|
13260-84300-000 |
— | ||
|
29
|
29
13521-78100-000 O-RING |
13521-78100-000 |
from US $1.62 |
||
|
30
|
30
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
30
|
30
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
31
|
31
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
31
|
31
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
31
|
31
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
32
|
32
13330-84300-000 CHAMBER ASSY |
13330-84300-000 |
US $109.30 |
||
|
33
|
33
08316-26086-000
Nut
|
08316-26086-000 |
— | ||
| replacements | |||||
|
33
|
33
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
33
|
33
08316-20087-000 NUT |
08316-20087-000 |
from US $3.77 |
||
|
34
|
34
13281-84300-000
BRACKET
|
13281-84300-000 |
— | ||
|
35
|
35
02112-05106-000
Screw
|
02112-05106-000 |
— | ||
| replacement | |||||
|
35
|
35
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
36
|
36
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
36
|
36
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
36
|
36
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
37
|
37
13341-84300-000
Hose
|
13341-84300-000 |
— | ||
| replacements | |||||
|
37
|
37
09355-30705-600
HOSE(3X7X600)
|
09355-30705-600 |
— | ||
|
37
|
37
09354-31684-300
Hose (3x7x800)
|
09354-31684-300 |
— | ||
|
37
|
37
09355-30001-600 Hose (7.4X3.2X135) |
09355-30001-600 |
from US $5.17 |
||
|
38
|
38
13375-84300-000
SCREW
|
13375-84300-000 |
— | ||
|
39
|
39
13267-78120-000
Screw
|
13267-78120-000 |
— | ||
| replacement | |||||
|
39
|
39
13275-781T0-000
SCREW SET,THROTTLE
|
13275-781T0-000 |
— | ||
|
40
|
40
13268-81000-000
Spring
|
13268-81000-000 |
— | ||
|
41
|
41
13361-84301-000
Packing
|
13361-84301-000 |
— | ||
|
42
|
42
13601-05226-000
SCREW(5X22)
|
13601-05226-000 |
— | ||
|
43
|
43
13248-78100-000
Screw
|
13248-78100-000 |
— | ||
| replacements | |||||
|
43
|
43
09125-05105-XC0 SCREW(5X22) |
09125-05105-XC0 |
from US $5.59 |
||
|
43
|
43
09125-05105-000
Cross screw
|
09125-05105-000 |
— | ||
|
44
|
44
13249-78100-000 WASHER |
13249-78100-000 |
from US $2.17 |
||
|
45
|
45
13433-79110-000
PACKING
|
13433-79110-000 |
— | ||
|
46
|
46
13432-47090-000 WASHER |
13432-47090-000 |
from US $1.47 |
||
|
47
|
47
13271-93011-000 SPRINGSpring |
13271-93011-000 |
from US $1.92 |
||
|
48
|
48
13371-84300-000
Screw
|
13371-84300-000 |
— | ||
|
49
|
49
13699-77000-000
キャップ,アイドルリミッタ
|
13699-77000-000 |
— | ||
|
50
|
50
13530-78420-000
Depression chamber assy
|
13530-78420-000 |
— | ||
|
51
|
51
02112-05206-000
Screw
|
02112-05206-000 |
— | ||
| replacement | |||||
|
51
|
51
02112-0520B-000 SCREW |
02112-0520B-000 |
from US $0.77 |
||
|
52
|
52
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
52
|
52
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
52
|
52
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
53
|
53
13415-81030-000
Eリング
|
13415-81030-000 |
— | ||
| replacement | |||||
|
53
|
53
13384-78330-000 E-RING |
13384-78330-000 |
US $2.08 |
||
|
54
|
54
13372-84301-000
SCREW
|
13372-84301-000 |
— | ||
|
55
|
55
13271-93011-000 SPRINGSpring |
13271-93011-000 |
from US $1.92 |
||
|
56
|
56
13231-81000-000
Bimetal assy
|
13231-81000-000 |
— | ||
|
57
|
57
13683-81030-000
HOSE
|
13683-81030-000 |
— | ||
|
58
|
58
13200-84820-000
Gasket set
NOT SHOWN |
13200-84820-000 |
— | ||
| replacement | |||||
|
58
|
58
13380-845T0-000 GASKET SETNOT SHOWN |
13380-845T0-000 |
US $81.33 |
||
