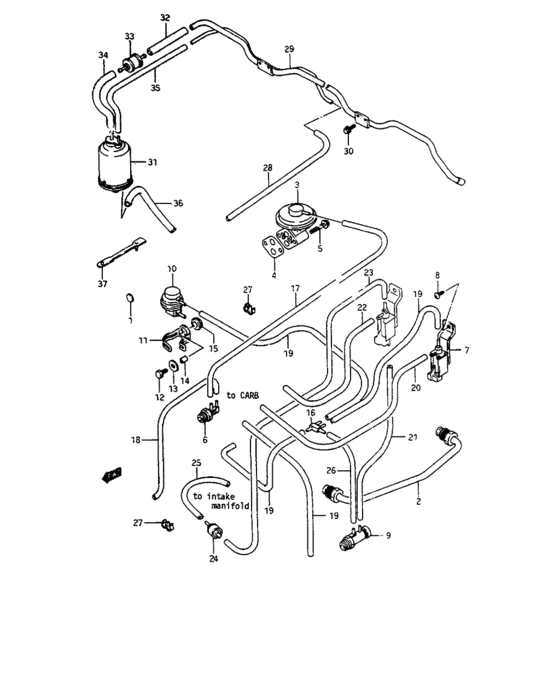

Emission control (AT:W/AIR CON) Diagram Suzuki FRONTE
- Year
- -
- Sales region
- Pacific
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77111-78000-000
シール,ホール
|
77111-78000-000 |
— | ||
| replacement | |||||
|
1
|
1
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
2
|
2
18530-78111-000
Pipe, eor
|
18530-78111-000 |
— | ||
|
3
|
3
18111-81110-000
VALVE,EGR
|
18111-81110-000 |
— | ||
|
4
|
4
18529-78101-000
ガスケット,EGRバルブ
|
18529-78101-000 |
— | ||
| replacement | |||||
|
4
|
4
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
US $1.60 |
||
|
5
|
5
01537-06453-000
ボルト
|
01537-06453-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
6
|
6
18123-84300-000 VALVE,BVS |
18123-84300-000 |
US $35.14 |
||
|
7
|
7
18117-84000-000
VALVE ASSY,3WAY SOLENOID
|
18117-84000-000 |
— | ||
|
8
|
8
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
9
|
9
18540-78110-000
VALVE ASSY,TVS
|
18540-78110-000 |
— | ||
|
10
|
10
18570-84010-000 SWITCH,VACUUM |
18570-84010-000 |
US $52.62 |
||
|
11
|
11
18569-82002-000
クランプ,バキュームスイッチ
|
18569-82002-000 |
— | ||
| replacement | |||||
|
11
|
11
18569-63D00-000 CLAMP,VACUUM SWITCH |
18569-63D00-000 |
US $4.82 |
||
|
12
|
12
01107-06163-000 Bolt m6x1x16 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
12
|
12
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
13
|
13
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
14
|
14
09180-06140-000
Spacer, guide
|
09180-06140-000 |
— | ||
| replacement | |||||
|
14
|
14
09180-06309-000 SPACER(6.5X10X5)Spacer, guide |
09180-06309-000 |
from US $1.52 |
||
|
15
|
15
09308-10001-000
New Genuine Part
|
09308-10001-000 |
— | ||
| replacement | |||||
|
15
|
15
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
16
|
16
09367-04003-000 JOINT,4 WAY |
09367-04003-000 |
US $2.24 |
||
|
17
|
17
09343-03079-000
New Genuine Part
|
09343-03079-000 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
09343-03096-000
ホース,#8/3.5X7.5X170
|
09343-03096-000 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
09343-03100-000
New Genuine Part
|
09343-03100-000 |
— | ||
| replacements | |||||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
09343-03114-000
ホース,#19/3.5X7.5X310
|
09343-03114-000 |
— | ||
| replacements | |||||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09343-03097-000
ホース,#26/3.5X7.5X180
|
09343-03097-000 |
— | ||
| replacements | |||||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
09343-03089-000
ホース,#3/3.5X7.5X80
|
09343-03089-000 |
— | ||
| replacements | |||||
|
22
|
22
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
22
|
22
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
23
|
23
09358-35754-525
Hose, carb to distributor
|
09358-35754-525 |
— | ||
| replacements | |||||
|
23
|
23
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
23
|
23
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
24
|
24
95569-78040-000 VALVE,CHECKValve, check |
95569-78040-000 |
from US $21.34 |
||
|
25
|
25
09343-03087-000
ホース,#2/3.5X7.5X50
|
09343-03087-000 |
— | ||
| replacements | |||||
|
25
|
25
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
25
|
25
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
26
|
26
09343-03101-000
ホース,#21/3.5X7.5X240
|
09343-03101-000 |
— | ||
| replacements | |||||
|
26
|
26
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
26
|
26
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
27
|
27
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
28
|
28
09358-35754-260
ホース,3.5X7.5X260
|
09358-35754-260 |
— | ||
| replacements | |||||
|
28
|
28
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
28
|
28
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
29
|
29
18340-84000-000
パイプ,パージ
|
18340-84000-000 |
— | ||
|
30
|
30
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
30
|
30
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
31
|
31
18560-78400-000
Canister
|
18560-78400-000 |
— | ||
|
32
|
32
09354-54115-210
ホース,5.4X11.4X210
L:210->170 |
09354-54115-210 |
— | ||
| replacement | |||||
|
32
|
32
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:210->170 |
09355-54115-600 |
from US $7.20 |
||
|
33
|
33
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
34
|
34
09354-54115-210
ホース,5.4X11.4X210
L:210->55 |
09354-54115-210 |
— | ||
| replacement | |||||
|
34
|
34
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:210->55 |
09355-54115-600 |
from US $7.20 |
||
|
35
|
35
09358-35754-260
ホース,3.5X7.5X260
|
09358-35754-260 |
— | ||
| replacements | |||||
|
35
|
35
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
35
|
35
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
36
|
36
09354-70123-170
ホース(7X12X170)
|
09354-70123-170 |
— | ||
| replacements | |||||
|
36
|
36
09354-65113-600
HOSE(6.5X11.5X600)
|
09354-65113-600 |
— | ||
|
36
|
36
44421-12FR0-000 HOSE |
44421-12FR0-000 |
from US $16.64 |
||
|
36
|
36
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) |
09355-70125-600 |
from US $5.51 |
||
|
36
|
36
09355-65001-600 Hose(6.5X11.5X600) |
09355-65001-600 |
from US $14.74 |
||
|
37
|
37
09407-05405-000
Clamp (l:103)
|
09407-05405-000 |
— | ||
| replacement | |||||
|
37
|
37
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
