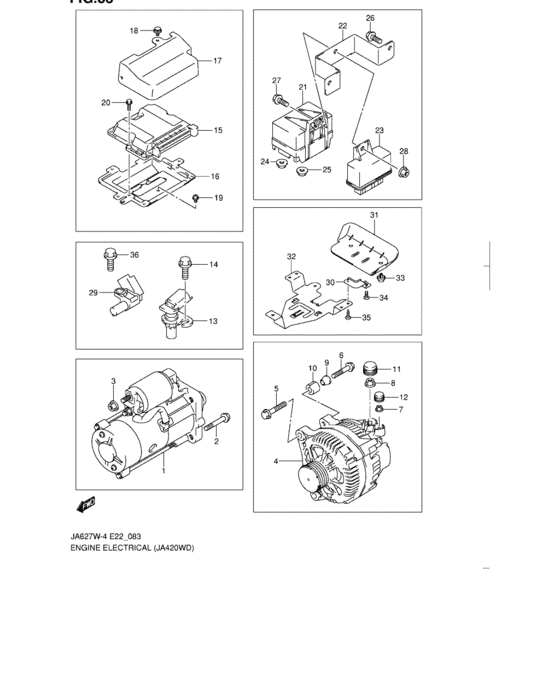

Engine electrical (JA420WD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-68D00-000 MOTOR ASSY,STARTING |
31100-68D00-000 |
US $746.24 |
||
|
2
|
2
01550-10503-000
Bolt
|
01550-10503-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
3
|
3
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
31400-68D02-000 GENERATOR ASSY |
31400-68D02-000 |
US $872.96 |
||
|
5
|
5
01550-10453-000
Bolt
|
01550-10453-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
6
|
6
21342-68D20-000 BOLT,BLOCK&T/M CASE NO.2 |
21342-68D20-000 |
US $2.17 |
||
|
7
|
7
08316-10053-000
Nut
|
08316-10053-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
|
8
|
8
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
9
|
9
31493-68D00-000
Bush, generator
|
31493-68D00-000 |
— | ||
| replacement | |||||
|
9
|
9
31493-68D0V-000 BUSH,GENERATOR |
31493-68D0V-000 |
US $4.75 |
||
|
10
|
10
31494-68D00-000
Spacer, generator
|
31494-68D00-000 |
— | ||
| replacement | |||||
|
10
|
10
31494-68D0V-000
SPACER,GENERATOR
|
31494-68D0V-000 |
— | ||
|
11
|
11
31492-66G00-000
CAP,GENERATOR TERMINAL
|
31492-66G00-000 |
— | ||
|
12
|
12
31492-66G10-000
CAP,GENERATOR TERMINAL
|
31492-66G10-000 |
— | ||
|
13
|
13
33220-67G01-000
Sensor, engine speed
|
33220-67G01-000 |
— | ||
| replacement | |||||
|
13
|
13
33220-67G02-000 SENSOR ASSY,ENGINE SPEED |
33220-67G02-000 |
US $93.84 |
||
|
14
|
14
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
33920-53J20-000 CONTROLLER ASSY,EPI2-ROW |
33920-53J20-000 |
US $1,795.68 |
||
|
15
|
15
33920-53J11-000 CONTROLLER ASSY,EPI3-ROW |
33920-53J11-000 |
US $1,795.68 |
||
|
16
|
16
33924-53J00-000
Bracket,epi cont
|
33924-53J00-000 |
— | ||
|
16
|
16
33924-53J02-000
BRACKET,EPI CONT
JSAHTX83V00200033~,JS3TX83V 64300001~ |
33924-53J02-000 |
— | ||
|
17
|
17
33925-53J00-000
COVER,EPI CONT
|
33925-53J00-000 |
— | ||
|
18
|
18
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
19
|
19
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
19
|
19
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
20
|
20
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
20
|
20
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
21
|
21
38850-53J00-000 RELAY ASSY,GLOW PLUG2-ROW |
38850-53J00-000 |
US $74.70 |
||
|
21
|
21
38850-67G00-000 RELAY,GLOW PLUG3-ROW |
38850-67G00-000 |
US $195.04 |
||
|
22
|
22
38851-53J01-000
Bracket,glow relay
|
38851-53J01-000 |
— | ||
|
23
|
23
38860-67G00-000
RELAY ASSY
|
38860-67G00-000 |
— | ||
|
24
|
24
09159-05047-000
NUT
|
09159-05047-000 |
— | ||
|
25
|
25
09159-06097-000 NUT |
09159-06097-000 |
US $14.40 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
27
|
27
02162-0620A-000
Bolt
|
02162-0620A-000 |
— | ||
| replacement | |||||
|
27
|
27
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.80 |
||
|
28
|
28
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
28
|
28
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
29
|
29
33220-67G10-000
Sensor assy,cam position
|
33220-67G10-000 |
— | ||
| replacement | |||||
|
29
|
29
33220-69K20-000 SENSOR,CAM POSITION |
33220-69K20-000 |
US $81.33 |
||
|
30
|
30
33924-50J10-000 BRACKET,EPI CONTLHD |
33924-50J10-000 |
US $5.59 |
||
|
30
|
30
33924-50J20-000
BRACKET,EPI CONT
RHD |
33924-50J20-000 |
— | ||
|
31
|
31
33925-50J00-000 COVER,EPI CONTLHD |
33925-50J00-000 |
US $9.83 |
||
|
31
|
31
33925-50J10-000
COVER,EPI CONT
RHD |
33925-50J10-000 |
— | ||
|
32
|
32
95591-53J00-000
BRACKET,A/C CONTROLLER
|
95591-53J00-000 |
— | ||
|
33
|
33
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
34
|
34
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
34
|
34
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
35
|
35
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
35
|
35
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
36
|
36
33225-67G00-000
Bolt, cam position sensor
|
33225-67G00-000 |
— | ||
