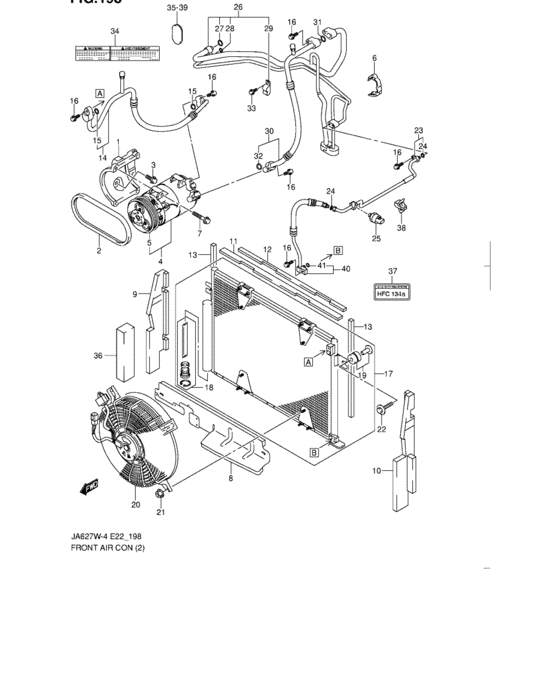

Front air conditioner (JA627W:LHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95111-54J00-000
BRACKET,CPRSR
|
95111-54J00-000 |
— | ||
|
2
|
2
95141-65D00-000 BELT,CPRSR |
95141-65D00-000 |
from US $40 |
||
|
3
|
3
01550-10303-000
Bolt
|
01550-10303-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-1030B-000 BOLTBolt, axle housing rear |
01550-1030B-000 |
from US $5.07 |
||
|
3
|
3
01550-1030A-000 BOLT |
01550-1030A-000 |
from US $1.12 |
||
|
4
|
4
95200-54JB0-000 COMPRESSOR ASSYW/SINGLE AIR CON |
95200-54JB0-000 |
US $1,169.60 |
||
|
4
|
4
95200-54JA0-000 COMPRESSOR ASSYW/DUAL AIR CON |
95200-54JA0-000 |
from US $1,045.69 |
||
|
5
|
5
95210-54JA0-000 CLUTCH,MAGNET |
95210-54JA0-000 |
US $375.36 |
||
|
6
|
6
09408-00184-000 CLAMP |
09408-00184-000 |
from US $4.64 |
||
|
7
|
7
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
8
|
8
95824-54J00-000 INSULATOR,RDTR LWR |
95824-54J00-000 |
US $66.61 |
||
|
9
|
9
95826-54J00-000
INSULATOR,RDTR SIDE,R
|
95826-54J00-000 |
— | ||
|
10
|
10
95827-54J00-000
INSULATOR,RDTR SIDE,L
|
95827-54J00-000 |
— | ||
|
11
|
11
95823-54J00-000
INSULATOR,COND FR
|
95823-54J00-000 |
— | ||
|
12
|
12
95828-54J00-000 INSULATOR,COND UPR |
95828-54J00-000 |
US $12.77 |
||
|
13
|
13
95829-54J00-000 INSULATOR,COND SIDE |
95829-54J00-000 |
US $9.31 |
||
|
14
|
14
95720-54J20-000 HOSE,DISCHARGE |
95720-54J20-000 |
from US $93.33 |
||
|
15
|
15
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
16
|
16
01550-06203-000
Bolt
W/SINGLE AIR CON |
01550-06203-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0620B-000 BOLTBolt, inspection cap W/SINGLE AIR CON |
01550-0620B-000 |
from US $0.76 |
||
|
17
|
17
95310-54J10-000
Condenser comp
|
95310-54J10-000 |
— | ||
| replacement | |||||
|
17
|
17
95310-54J11-000 CONDENSER |
95310-54J11-000 |
from US $426.08 |
||
|
18
|
18
95339-58J00-000
ドライヤキット
|
95339-58J00-000 |
— | ||
| replacement | |||||
|
18
|
18
95339-58J10-000 DRYER KIT |
95339-58J10-000 |
from US $48.35 |
||
|
19
|
19
95851-60B00-000
BUSH,COND
|
95851-60B00-000 |
— | ||
|
20
|
20
95560-54J02-000 FAN ASSY,COND |
95560-54J02-000 |
US $287.28 |
||
|
21
|
21
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
22
|
22
09116-06129-000 BOLT(6X30) |
09116-06129-000 |
US $1.44 |
||
|
23
|
23
95731-54J20-000
Hose,liquid
|
95731-54J20-000 |
— | ||
| replacement | |||||
|
23
|
23
95731-54J21-000 HOSE,LIQUID |
95731-54J21-000 |
US $171.20 |
||
|
24
|
24
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
25
|
25
95526-78F00-000 SWITCH,TRIPLE PRESSURE |
95526-78F00-000 |
US $58.51 |
||
|
26
|
26
95732-54J30-000 PIPE,LIQUIDW/SINGLE AIR CON |
95732-54J30-000 |
US $202.40 |
||
|
26
|
26
95732-54J10-000
PIPE,LIQUID NO.1
W/DUAL AIR CON |
95732-54J10-000 |
— | ||
|
27
|
27
95896-54J00-000 O-RING |
95896-54J00-000 |
from US $1.60 |
||
|
28
|
28
95891-54J00-000 O-RING |
95891-54J00-000 |
US $1.60 |
||
|
29
|
29
95771-54J00-000
CLIP
|
95771-54J00-000 |
— | ||
|
30
|
30
95710-54J11-000
HOSE,SUCTION
|
95710-54J11-000 |
— | ||
|
31
|
31
95896-54J10-000 O-RING |
95896-54J10-000 |
US $1.60 |
||
|
32
|
32
95896-54J00-000 O-RING |
95896-54J00-000 |
from US $1.60 |
||
|
33
|
33
02162-0612A-000 SCREWBolt, bracket W/SINGLE AIR CON |
02162-0612A-000 |
from US $0.80 |
||
|
33
|
33
02162-06163-000
Screw
W/DUAL AIR CON |
02162-06163-000 |
— | ||
| replacement | |||||
|
33
|
33
02162-0616B-000 SCREWBolt, adjust W/DUAL AIR CON |
02162-0616B-000 |
from US $0.80 |
||
|
34
|
34
95951-54J20-000 PLATE,WARNING A/CW/SINGLE AIR CON |
95951-54J20-000 |
US $9.79 |
||
|
34
|
34
95951-54J30-000
PLATE,WARNING A/C
W/DUAL AIR CON |
95951-54J30-000 |
— | ||
|
35
|
35
74812-70B01-000 GROMMET,A/C HOLEW/SINGLE AIR CON |
74812-70B01-000 |
US $5.45 |
||
|
36
|
36
95821-54J00-000
INSULATOR,LWR
|
95821-54J00-000 |
— | ||
|
37
|
37
95955-72B00-000 LABEL,REFRIGERANTChina |
95955-72B00-000 |
US $1.60 |
||
|
38
|
38
09403-08406-000 CLAMP |
09403-08406-000 |
from US $1.44 |
||
|
39
|
39
95831-54J00-000 GROMMET,A/C HOLE |
95831-54J00-000 |
US $4.71 |
||
|
40
|
40
95731-54J80-000
HOSE,LIQUID
|
95731-54J80-000 |
— | ||
|
41
|
41
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
