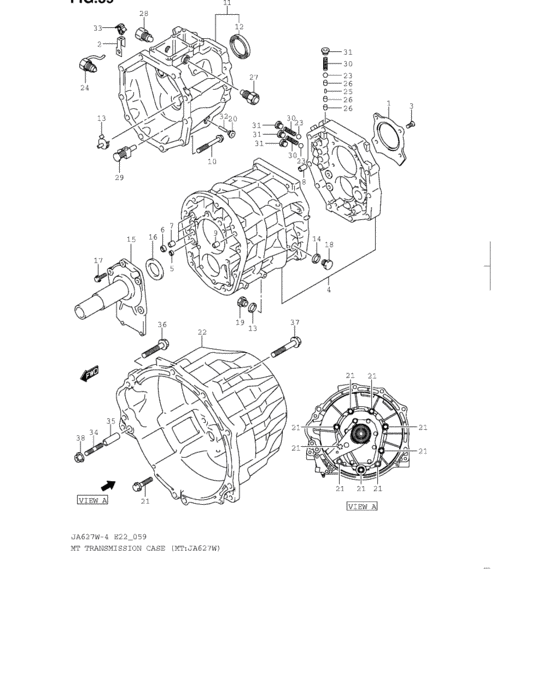

Mt tm case (MT:JA627W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24138-54J00-000 RETAINER,OUTPUT SHAFT RR BRG |
24138-54J00-000 |
US $21.90 |
||
|
2
|
2
24355-78E50-000
CLAMP,NO,1
|
24355-78E50-000 |
— | ||
|
3
|
3
24552-78E50-000
Bolt
|
24552-78E50-000 |
— | ||
|
4
|
4
24700-54J00-000
CASE ASSY,T/M
|
24700-54J00-000 |
— | ||
|
5
|
5
24715-54J00-000
PLUG,SHIFT SHAFT
|
24715-54J00-000 |
— | ||
|
6
|
6
24715-68D50-000
PLUG,SHIFT SHAFT
|
24715-68D50-000 |
— | ||
|
7
|
7
24719-54J00-000
BUSH,GEAR SHIFT SHAFT
|
24719-54J00-000 |
— | ||
|
8
|
8
24781-78E50-000
KNOCK,FR INTERMEDIATE
|
24781-78E50-000 |
— | ||
|
9
|
9
24782-68D50-000
KNOCK,FR INTERMEDIATE
|
24782-68D50-000 |
— | ||
|
10
|
10
24725-78E50-000
BOLT,T/M CASE NO.1
|
24725-78E50-000 |
— | ||
|
11
|
11
24730-54J80-000
ADAPTER S/ASSY,TRANSFER R.DOT
|
24730-54J80-000 |
— | ||
|
12
|
12
24732-54J00-000 SEAL,TYPE T OIL |
24732-54J00-000 |
from US $18.25 |
||
|
13
|
13
24735-54J00-000 GUTTER,T/M CASE |
24735-54J00-000 |
US $3.50 |
||
|
14
|
14
24735-68D50-000 GASKET,DRAIN PLUG |
24735-68D50-000 |
from US $2.99 |
||
|
15
|
15
24741-54J00-000 RETAINER,INPUT SFT BRG |
24741-54J00-000 |
US $110.03 |
||
|
16
|
16
24742-54J00-000 SEAL,INPUT SHAFT OIL |
24742-54J00-000 |
US $9.64 |
||
|
17
|
17
24745-78E50-000
BOLT,RETAINER INPUT SFT
|
24745-78E50-000 |
— | ||
|
18
|
18
24791-68D50-000 PLUG,OIL DRAIN |
24791-68D50-000 |
US $5.81 |
||
|
19
|
19
24791-78E50-000
PLUG,OIL DRAIN
|
24791-78E50-000 |
— | ||
|
20
|
20
25535-78E50-000
SCREW,SHIFT SFT LOCATING
|
25535-78E50-000 |
— | ||
|
21
|
21
01550-10453-000
Bolt
|
01550-10453-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
22
|
22
21341-52D00-000
HOUSING,CLUTCH
|
21341-52D00-000 |
— | ||
|
22
|
22
21341-52D01-000
HOUSING,CLUTCH
JSAHTX92V00200829~,JS3TX92V 44200718~,JSAHTX92V44200001~,JSAHTX92V40200006~ |
21341-52D01-000 |
— | ||
|
23
|
23
25511-78E50-000
BALL,LOCATING
|
25511-78E50-000 |
— | ||
|
24
|
24
25354-82D00-000
SWITCH,REV SHIFT
|
25354-82D00-000 |
— | ||
|
25
|
25
25522-54J00-000
ROLLER,SHF SFT INTERLOCK NO.1
|
25522-54J00-000 |
— | ||
|
26
|
26
25523-78E50-000
ROLLER,LOCATING NO.3
|
25523-78E50-000 |
— | ||
|
27
|
27
25524-54J00-000
BOLT,RETURN SPRING REV
|
25524-54J00-000 |
— | ||
|
28
|
28
25525-68D50-000
BOLT,RETURN SPRING LOW
|
25525-68D50-000 |
— | ||
|
29
|
29
25526-54J00-000
Cam,5th rev interlock
|
25526-54J00-000 |
— | ||
|
30
|
30
25534-54J00-000 SPRING,GEAR SHIFT LOCATING |
25534-54J00-000 |
US $4.12 |
||
|
31
|
31
25535-78E50-000
SCREW,SHIFT SFT LOCATING
|
25535-78E50-000 |
— | ||
|
32
|
32
25541-54J00-000
PIN,5TH REV INTERLOCK CAM
|
25541-54J00-000 |
— | ||
|
33
|
33
09403-05404-000
CLAMP
|
09403-05404-000 |
— | ||
|
34
|
34
09108-12007-000
Bolt,stud
|
09108-12007-000 |
— | ||
| replacement | |||||
|
34
|
34
09108-12012-000 BOLT,STUD |
09108-12012-000 |
from US $2.50 |
||
|
35
|
35
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
US $1.92 |
||
|
36
|
36
01550-12653-000
ボルト
|
01550-12653-000 |
— | ||
| replacement | |||||
|
36
|
36
01550-1265B-000 Bolt |
01550-1265B-000 |
US $1.76 |
||
|
37
|
37
01550-12753-000
ボルト
|
01550-12753-000 |
— | ||
| replacement | |||||
|
37
|
37
01550-1275A-000 BOLT |
01550-1275A-000 |
US $1.92 |
||
|
38
|
38
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
38
|
38
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
