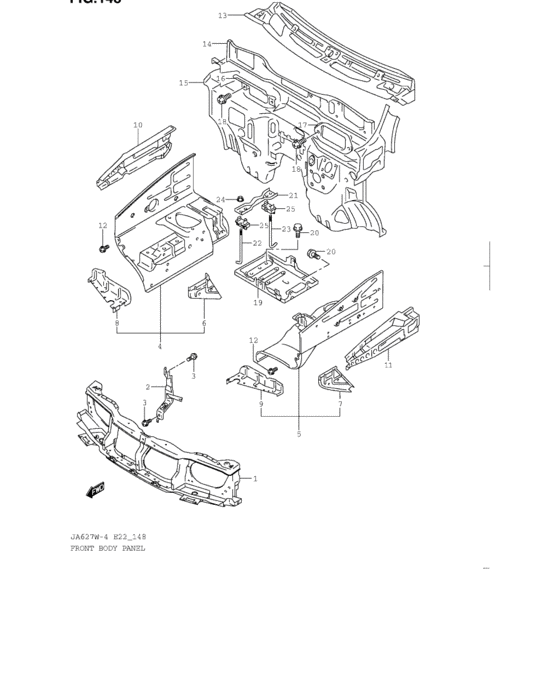

Front body panel (FRONT BODY PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58100-52D01-000 PANEL,FRONT |
58100-52D01-000 |
US $750.40 |
||
|
2
|
2
58160-65D01-000 STAY,AIR CLEANER |
58160-65D01-000 |
US $22.63 |
||
|
3
|
3
09122-76003-000 SCREW(6X16)Bolt (6x16) |
09122-76003-000 |
US $11.80 |
||
|
4
|
4
58700-65D70-000 PANEL ASSY,FR WHEEL HOUSING,RLHD |
58700-65D70-000 |
US $408.32 |
||
|
4
|
4
58700-65D60-000
PANEL ASSY,FR WHEEL HOUSING,R
RHD |
58700-65D60-000 |
— | ||
|
5
|
5
58900-65DV1-000
PANEL ASSY,FR WHEEL HOUSING,L
LHD:JA420WD |
58900-65DV1-000 |
— | ||
|
5
|
5
58900-65DB2-000
PANEL ASSY,FR WHEEL HOUSING,L
LHD:JA420WD,JSAHTX83V00200610~,JS3TX83V 64300001~ |
58900-65DB2-000 |
— | ||
|
5
|
5
58900-65D80-000
Panel assy,fr wheel housing,l
LHD:JA627W |
58900-65D80-000 |
— | ||
|
5
|
5
58900-65DA1-000
Panel assy,fr wheel housing,l
RHD:JA420WD |
58900-65DA1-000 |
— | ||
|
5
|
5
58900-65DA2-000
Panel assy,fr wheel housing,l
RHD:JA420WD,JSAHTX83V00200610~,JS3TX83V 64300001~ |
58900-65DA2-000 |
— | ||
|
5
|
5
58900-65D90-000
Panel assy,fr wheel housing,l
RHD:JA627W |
58900-65D90-000 |
— | ||
|
6
|
6
58712-65D00-000 EXTENSION,FR WHL HOUSING,R |
58712-65D00-000 |
US $13.87 |
||
|
7
|
7
58912-65D00-000 EXTENSION,FR WHL HOUSING,L |
58912-65D00-000 |
US $13.87 |
||
|
8
|
8
58714-65D20-000 GUSSET,FR LWR MEMBER,R |
58714-65D20-000 |
US $31.46 |
||
|
9
|
9
58914-65D20-000 GUSSET,FR LWR MEMBER,L |
58914-65D20-000 |
US $31.46 |
||
|
10
|
10
58770-65D30-000 MEMBER,FR BODY SIDE,R |
58770-65D30-000 |
US $78.75 |
||
|
11
|
11
58970-65D00-000 MEMBER,FR BODY SIDE,L |
58970-65D00-000 |
US $78.75 |
||
|
12
|
12
09122-76003-000 SCREW(6X16)Bolt (6x16) |
09122-76003-000 |
US $11.80 |
||
|
13
|
13
59110-65D01-000 PANEL,COWL TOPLHD |
59110-65D01-000 |
US $218.96 |
||
|
13
|
13
59110-65D11-000 PANEL,COWL TOPRHD |
59110-65D11-000 |
US $375.36 |
||
|
14
|
14
59211-65D03-000 PANEL,COWL FRONTLHD |
59211-65D03-000 |
US $112.61 |
||
|
14
|
14
59211-65D13-000
PANEL,COWL FRONT
RHD |
59211-65D13-000 |
— | ||
|
15
|
15
59300-65D62-000
PANEL,DASH
LHD:AT |
59300-65D62-000 |
— | ||
|
15
|
15
59300-65D72-000
Panel,dash
RHD:AT |
59300-65D72-000 |
— | ||
|
16
|
16
72420-65D00-000 LID,WIPER LINK SVCE HOLELHD |
72420-65D00-000 |
US $22.08 |
||
|
17
|
17
72422-60A10-000
LID,WIPER LINK SVCE HOLE SIDE
RHD |
72422-60A10-000 |
— | ||
|
18
|
18
02162-06123-000
Bolt (6x12)
LHD |
02162-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02162-0612B-000 SCREWBolt LHD |
02162-0612B-000 |
from US $0.80 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket LHD |
02162-0612A-000 |
from US $0.80 |
||
|
19
|
19
58780-65D10-000 BRACKET,BATTERYLHD |
58780-65D10-000 |
US $56.67 |
||
|
19
|
19
58780-65D00-000 BRACKET,BATTERYRHD |
58780-65D00-000 |
US $56.67 |
||
|
20
|
20
09122-76003-000 SCREW(6X16)Bolt (6x16) |
09122-76003-000 |
US $11.80 |
||
|
21
|
21
72511-60A03-000 BAND,BATTERY |
72511-60A03-000 |
from US $12 |
||
|
22
|
22
72512-82002-000 BOLT,BATTERY |
72512-82002-000 |
from US $5.20 |
||
|
23
|
23
72512-82002-000 BOLT,BATTERY |
72512-82002-000 |
from US $5.20 |
||
|
24
|
24
08361-15063-000
Nut
|
08361-15063-000 |
— | ||
| replacement | |||||
|
24
|
24
08361-1506A-000 NUT |
08361-1506A-000 |
from US $0.74 |
||
|
25
|
25
72514-60A01-000 PAD,BATTERY BANDRHD |
72514-60A01-000 |
US $2.72 |
||
