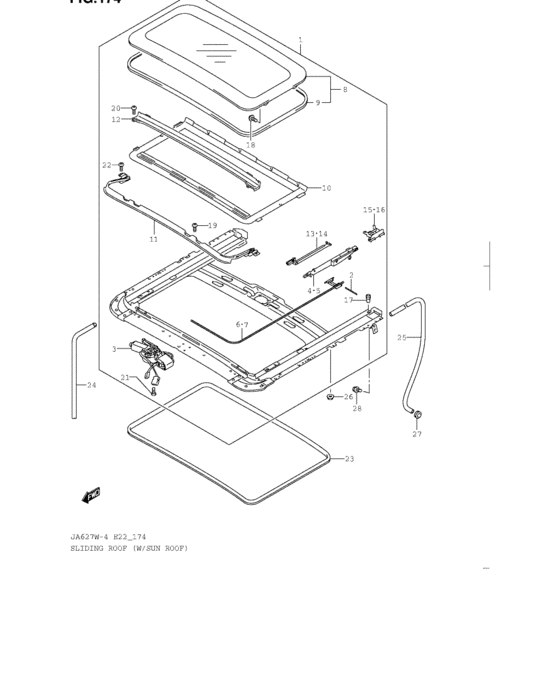

Sliding roof (W/SUN ROOF) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78710-65D11-6GS
ROOF ASSY,SLIDING
,Chile,2,4,Saudi Arabia,Israel,Guatemala |
78710-65D11-6GS |
— | ||
|
1
|
1
78710-65D11-R8H
ROOF ASSY,SLIDING
Taiwan,Saudi Arabia,China,BODY COLOR:ZA4,ZA5,,ZJ3,Z2T,Z5K,ZDK,ZY8 |
78710-65D11-R8H |
— | ||
|
2
|
2
78711-65D00-000
SHAFT
|
78711-65D00-000 |
— | ||
|
3
|
3
78712-65D10-000
MOTOR ASSY
|
78712-65D10-000 |
— | ||
|
4
|
4
78713-65D00-000
LIFTER ASSY,R
|
78713-65D00-000 |
— | ||
|
5
|
5
78714-65D00-000
LIFTER ASSY,L
|
78714-65D00-000 |
— | ||
|
6
|
6
78715-65D00-000
CABLE,R
|
78715-65D00-000 |
— | ||
|
7
|
7
78716-65D00-000
CABLE,L
|
78716-65D00-000 |
— | ||
|
8
|
8
78717-65D02-000 GLASS ASSY,SLIDING ROOF |
78717-65D02-000 |
US $243.30 |
||
|
9
|
9
78718-65D00-000
WEATHERSTRIP,GLASS
|
78718-65D00-000 |
— | ||
|
10
|
10
78719-65D00-6GS
SUNSHADE,SLIDING ROOF
,Chile,2,4,Saudi Arabia,Israel,Guatemala |
78719-65D00-6GS |
— | ||
|
10
|
10
78719-65D00-R8H
Sunshade assy,sliding roof
Taiwan,Saudi Arabia,China,BODY COLOR:ZA4,ZA5,,ZJ3,Z2T,Z5K,ZDK,ZY8 |
78719-65D00-R8H |
— | ||
|
11
|
11
78721-65D00-000
DEFLECTOR,SLIDING ROOF
|
78721-65D00-000 |
— | ||
|
12
|
12
78722-65D00-000
RAIL,DRIP
|
78722-65D00-000 |
— | ||
|
13
|
13
78723-65D00-000
LINK,DRIP,R
|
78723-65D00-000 |
— | ||
|
14
|
14
78724-65D00-000
LINK,DRIP,L
|
78724-65D00-000 |
— | ||
|
15
|
15
78725-65D00-000
SHOE,DRIP,R
|
78725-65D00-000 |
— | ||
|
16
|
16
78726-65D00-000
SHOE,DRIP,L
|
78726-65D00-000 |
— | ||
|
17
|
17
78727-65D00-000
CLIP
|
78727-65D00-000 |
— | ||
|
18
|
18
78728-65D00-000 SCREW |
78728-65D00-000 |
US $3.75 |
||
|
19
|
19
78729-65D00-000
Screw
|
78729-65D00-000 |
— | ||
|
20
|
20
78731-65D00-000
Screw
|
78731-65D00-000 |
— | ||
|
21
|
21
78732-65D00-000
Screw
|
78732-65D00-000 |
— | ||
|
22
|
22
78734-65D00-000
Screw
|
78734-65D00-000 |
— | ||
|
23
|
23
78821-65D00-6GS
TRIM,SLIDING ROOF
,Chile,2,4,Saudi Arabia,Israel,Guatemala |
78821-65D00-6GS |
— | ||
|
23
|
23
78821-65D00-R8H
TRIM,SLIDING ROOF
Taiwan,Saudi Arabia,China,BODY COLOR:ZA4,ZA5,,ZJ3,Z2T,Z5K,ZDK,ZY8 |
78821-65D00-R8H |
— | ||
|
24
|
24
78832-52D00-000
HOSE,RR DRAIN
L:2180->1800 |
78832-52D00-000 |
— | ||
|
25
|
25
78832-52D00-000
HOSE,RR DRAIN
|
78832-52D00-000 |
— | ||
|
26
|
26
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
27
|
27
09308-13001-000 GROMMET |
09308-13001-000 |
from US $2.38 |
||
|
28
|
28
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
