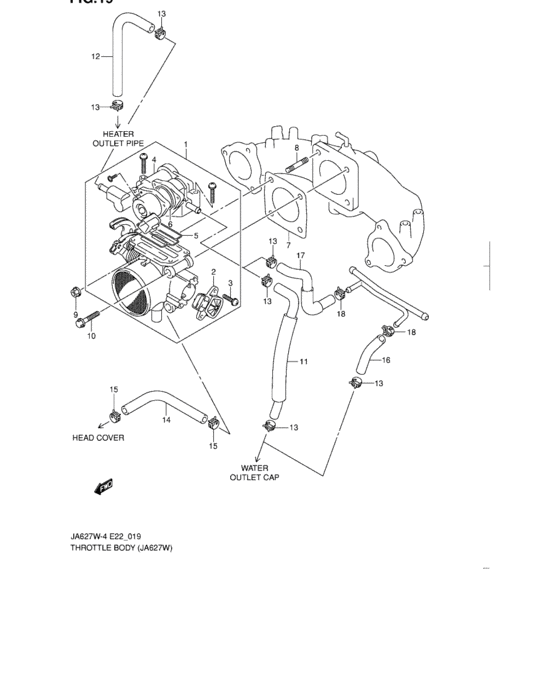

Throttle body (JA627W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-52D00-000 BODY ASSY,THROTTLE |
13400-52D00-000 |
US $1,652 |
||
|
2
|
2
13420-65D00-000
センサ,スロットルポジション
|
13420-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-65D01-000 SENSOR,THROTTLE POSITION |
13420-65D01-000 |
from US $196.11 |
||
|
3
|
3
13428-65D00-000 SCREW,TP-SENSOR |
13428-65D00-000 |
US $2.10 |
||
|
4
|
4
18137-52D00-000 VALVE,IAC |
18137-52D00-000 |
from US $336.67 |
||
|
5
|
5
13411-52D00-000 O-RING,IAC VALVE NO.1 |
13411-52D00-000 |
from US $7.40 |
||
|
6
|
6
13412-52D00-000 O-RING,IAC VALVE NO.2 |
13412-52D00-000 |
from US $3.29 |
||
|
7
|
7
13421-52D00-000 GASKET,THROTTLE BODY |
13421-52D00-000 |
US $4.48 |
||
|
8
|
8
01421-08503-000
Bolt, stud
|
01421-08503-000 |
— | ||
| replacement | |||||
|
8
|
8
01421-0850A-000 BOLT,STUD |
01421-0850A-000 |
from US $4.18 |
||
|
9
|
9
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
11
|
11
11190-77820-000 HOSE&PIPE SET,PCV H27~JSAHTX92V00207549,~JSAHTX92V50200056,~JSAHTX92V44200055,~JS3TX92V 54200752 |
11190-77820-000 |
US $42.69 |
||
|
12
|
12
09356-75141-600 HOSE(7.5X14.5X600)L:600->300 |
09356-75141-600 |
from US $6.30 |
||
|
13
|
13
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
14
|
14
09355-13207-600 HOSE(13X20X600)Hose, breather L:600->170 |
09355-13207-600 |
from US $11.63 |
||
|
15
|
15
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.33 |
||
|
16
|
16
13491-77E10-000 HOSE,WTR THB INLET NO.1JSAHTX92V00207550~,JSAHTX92V50200057~,JSAHTX92V44200056~,JS3TX92V 54200753~ |
13491-77E10-000 |
US $6.15 |
||
|
17
|
17
13492-52D10-000 HOSE,WTR THB INLET NO.2JSAHTX92V00207550~,JSAHTX92V50200057~,JSAHTX92V44200056~,JS3TX92V 54200753~ |
13492-52D10-000 |
from US $8.28 |
||
|
18
|
18
09401-12410-000 CLIPClip, filter outlet JSAHTX92V00207550~,JSAHTX92V50200057~,JSAHTX92V44200056~,JS3TX92V 54200753~ |
09401-12410-000 |
from US $1.19 |
||
