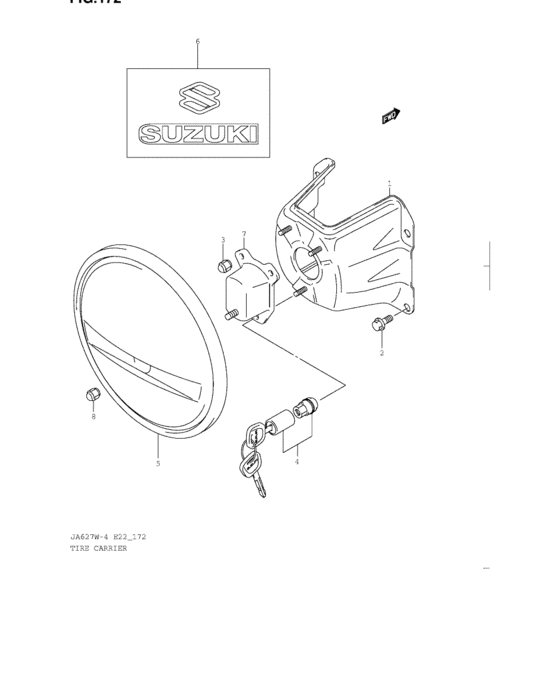

Tire carrier (TIRE CARRIER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83961-65D00-000
CARRIER,SPARE TIRE
|
83961-65D00-000 |
— | ||
|
2
|
2
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
2
|
2
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
3
|
3
09159-12024-000 NUT |
09159-12024-000 |
from US $2.40 |
||
|
4
|
4
83900-65820-000
KEY,SPARE TIRE NUT LOCK
|
83900-65820-000 |
— | ||
|
5
|
5
72820-65D80-ZA4 COVER,SPARE TIRE |
72820-65D80-ZA4 |
US $235.19 |
||
|
5
|
5
72820-65D80-27S COVER,SPARE TIRE |
72820-65D80-27S |
US $210.06 |
||
|
5
|
5
72820-65D80-ZDK
COVER,SPARE TIRE WHEEL
|
72820-65D80-ZDK |
— | ||
|
6
|
6
72830-65D00-N92 DECAL SET,SPARE TIRE COVER |
72830-65D00-N92 |
US $39.29 |
||
|
7
|
7
72831-65D10-000
BRACKET,SPARE TIRE COVER
|
72831-65D10-000 |
— | ||
|
8
|
8
09159-12024-000 NUT |
09159-12024-000 |
from US $2.40 |
||
