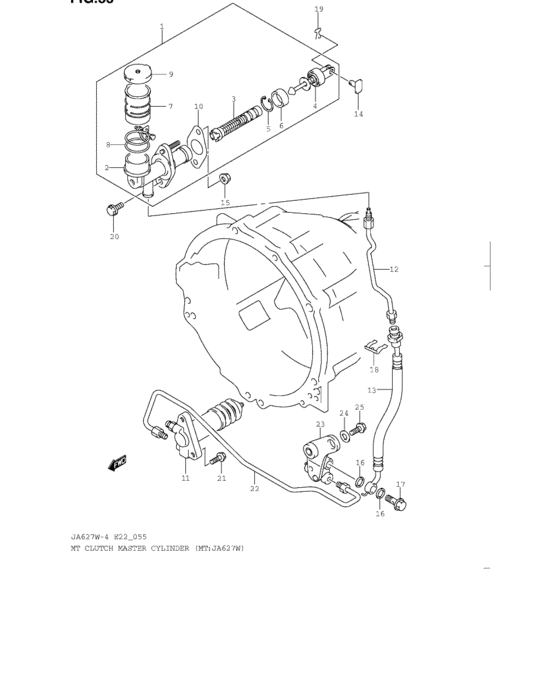

Mt cl master cyl (MT:JA627W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23810-65D00-000
Cylinder assy,clutch master
|
23810-65D00-000 |
— | ||
| replacement | |||||
|
1
|
1
23810-65D01-000 CYLINDER ASSY,CLUTCH MASTER |
23810-65D01-000 |
from US $129.24 |
||
|
2
|
2
23811-65D00-000 BODY,CLUTCH MASTER CYLINDER |
23811-65D00-000 |
US $114.40 |
||
|
3
|
3
23812-65D00-000 PISTON ASSY |
23812-65D00-000 |
US $38.64 |
||
|
4
|
4
23813-65D00-000 PUSH ROD DAMPER ASSY |
23813-65D00-000 |
US $32.75 |
||
|
5
|
5
23814-65D00-000 CIRCLIP |
23814-65D00-000 |
US $2.10 |
||
|
6
|
6
23815-65D00-000 BOOT |
23815-65D00-000 |
US $3.64 |
||
|
7
|
7
23816-65D00-000 RESERVOIR |
23816-65D00-000 |
US $10.08 |
||
|
8
|
8
23817-65D00-000 BAND ASSY |
23817-65D00-000 |
US $3.31 |
||
|
9
|
9
23818-65D00-000 CAP |
23818-65D00-000 |
from US $11.59 |
||
|
10
|
10
23819-65D00-000 SEAL,CLUTCH MASTER CYLINDER |
23819-65D00-000 |
US $2.39 |
||
|
11
|
11
23820-65D20-000
Cylinder assy,clutch
|
23820-65D20-000 |
— | ||
| replacement | |||||
|
11
|
11
23820-65D21-000 CYLINDER ASSY,CLUTCH MASTER |
23820-65D21-000 |
from US $98.48 |
||
|
12
|
12
23830-78E12-000 PIPE,CLUTCH OILLHD |
23830-78E12-000 |
US $11.92 |
||
|
12
|
12
23830-68D01-000
Pipe,clutch oil
RHD |
23830-68D01-000 |
— | ||
|
13
|
13
23850-54J00-000 HOSE,CLUTCH OIL |
23850-54J00-000 |
US $72.50 |
||
|
14
|
14
23875-65D00-000 PIN,CLUTCH MASTER CYL JOINT |
23875-65D00-000 |
US $2.88 |
||
|
15
|
15
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
15
|
15
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
16
|
16
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
17
|
17
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
18
|
18
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
19
|
19
09385-08007-000 PIN,SNAPClip |
09385-08007-000 |
from US $1.09 |
||
|
20
|
20
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
20
|
20
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
21
|
21
01550-10503-000
Bolt
|
01550-10503-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
22
|
22
23832-54J00-000 PIPE,CLUTCH OIL |
23832-54J00-000 |
US $7.95 |
||
|
23
|
23
23856-54J00-000 JOINT ASSY,CLUTCH PIPE |
23856-54J00-000 |
from US $26.28 |
||
|
24
|
24
09160-12094-000 WASHER(12.5X32X4.5)Washer (12.5x32x4.5) |
09160-12094-000 |
from US $1.07 |
||
|
25
|
25
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
25
|
25
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
