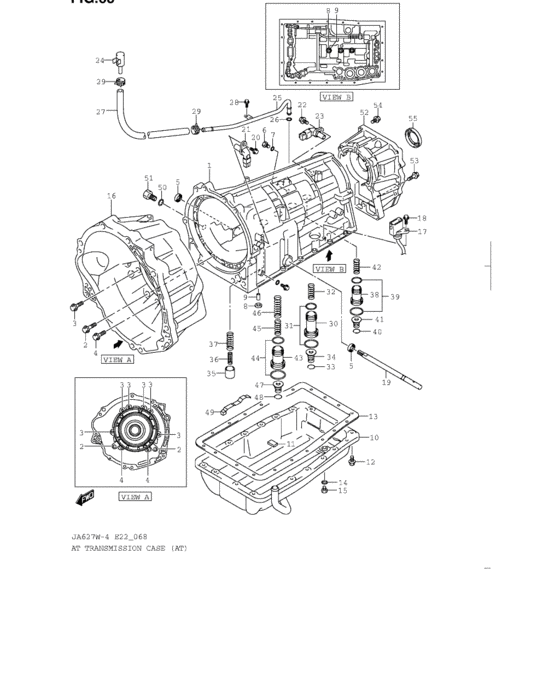

At transmission case (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24720-54JV0-000
ケース,トランスミッション
->24720-64JV0,USED WITH 24734-59J10 (1PCS),AND 24733-53J10 (1PCS) |
24720-54JV0-000 |
— | ||
| replacement | |||||
|
1
|
1
24720-64JV0-000
CASE,T/M
->24720-64JV0,USED WITH 24734-59J10 (1PCS),AND 24733-53J10 (1PCS) |
24720-64JV0-000 |
— | ||
|
2
|
2
24736-54J10-000
BOLT,CONVERTER HOUSING NO.1
|
24736-54J10-000 |
— | ||
|
3
|
3
24723-53J10-000
BOLT,HSG&CASE NO.3
|
24723-53J10-000 |
— | ||
|
4
|
4
24736-54J30-000 BOLT,CONVERTER HOUSING NO.3 |
24736-54J30-000 |
US $4.16 |
||
|
5
|
5
25981-60G10-000 SEAL,OIL |
25981-60G10-000 |
from US $5.83 |
||
|
6
|
6
29849-57B00-000 PLUG,T/M CASE |
29849-57B00-000 |
US $5.89 |
||
|
7
|
7
29738-57B00-000 O-RING |
29738-57B00-000 |
US $2.40 |
||
|
8
|
8
24781-54J10-000
ガスケット,トランスミッションケース
|
24781-54J10-000 |
— | ||
| replacement | |||||
|
8
|
8
24818-68J10-000 GASKET,GOVERNOR APPLY NO.1 |
24818-68J10-000 |
from US $5.18 |
||
|
9
|
9
24819-54J10-000 GASKET,BRAKE DRUM |
24819-54J10-000 |
US $13.98 |
||
|
10
|
10
24760-54J10-000
PAN,TRANSMISSION OIL
|
24760-54J10-000 |
— | ||
|
11
|
11
24745-57B00-000 MAGNET,T/M OIL PAN |
24745-57B00-000 |
US $5.60 |
||
|
12
|
12
09117-06002-000 BOLT(6X14) |
09117-06002-000 |
US $1.28 |
||
|
13
|
13
24892-54J10-000 GASKET,T/M OIL PAN |
24892-54J10-000 |
from US $21.83 |
||
|
14
|
14
24781-57B00-000 GASKET,DRAIN PLUG |
24781-57B00-000 |
from US $1.52 |
||
|
15
|
15
24823-79C10-000 PLUG,DRAIN |
24823-79C10-000 |
from US $2.13 |
||
|
16
|
16
24711-54J10-000
HOUSING,CONVERTER
|
24711-54J10-000 |
— | ||
|
17
|
17
24893-54J10-000 HARNESS,SOLENOID WIRE |
24893-54J10-000 |
US $239.20 |
||
|
18
|
18
29989-57B00-000 Bolt |
29989-57B00-000 |
US $5.59 |
||
|
19
|
19
29541-54J10-000 SHAFT,MANUAL VALVE LEVER |
29541-54J10-000 |
US $23.92 |
||
|
20
|
20
24746-53J10-000 BOLT,INPUT SPEED SENSOR |
24746-53J10-000 |
US $2.74 |
||
|
21
|
21
26143-79C10-000 SENSOR,SPEED INPUT |
26143-79C10-000 |
from US $113.63 |
||
|
22
|
22
24746-53J10-000 BOLT,INPUT SPEED SENSOR |
24746-53J10-000 |
US $2.74 |
||
|
23
|
23
26143-79C10-000 SENSOR,SPEED INPUT |
26143-79C10-000 |
from US $113.63 |
||
|
24
|
24
24773-57B00-000 BREATHER,AT T/M |
24773-57B00-000 |
US $19.20 |
||
|
25
|
25
24772-54J10-000
UNION,T/M BREATHER
|
24772-54J10-000 |
— | ||
|
26
|
26
24774-54J10-000
O-RING,T/M BREATHER UNION
|
24774-54J10-000 |
— | ||
|
27
|
27
24771-54J10-000
HOSE,T/M BREATHER
|
24771-54J10-000 |
— | ||
|
28
|
28
29969-57B00-000
BOLT,THROTTLE CABLE CLAMP
|
29969-57B00-000 |
— | ||
|
29
|
29
24735-57B00-000 CLIP,BREATHER HOSE |
24735-57B00-000 |
US $5.76 |
||
|
30
|
30
26542-54J10-000
ピストン,Bー3アキュムレータ
|
26542-54J10-000 |
— | ||
| replacement | |||||
|
30
|
30
26542-64J10-000
PISTON,B-3 ACCUMULATOR
|
26542-64J10-000 |
— | ||
|
31
|
31
26544-54JT0-000
O-RING SET,BRAKE NO.3 ACC
|
26544-54JT0-000 |
— | ||
|
32
|
32
26588-54J30-000
SPRING,B-3 ACCUMULATOR NO.3
|
26588-54J30-000 |
— | ||
|
33
|
33
26412-57B00-000 CIRCLIP,FWD CL ACC PSTN |
26412-57B00-000 |
US $5.23 |
||
|
34
|
34
26588-54J50-000
SPRING,B-3 ACCUMULATOR NO.2
|
26588-54J50-000 |
— | ||
|
35
|
35
26541-54J10-000 VALVE,C-1 ACCUMULATOR |
26541-54J10-000 |
US $11.44 |
||
|
36
|
36
26587-54J10-000
SPRING,C-1 ACCUMULATOR NO.1
|
26587-54J10-000 |
— | ||
|
37
|
37
26587-54J30-000
SPRING,C-1 ACCUMULATOR NO.2
|
26587-54J30-000 |
— | ||
|
38
|
38
26541-54J30-000
ピストン,Cー2アキュムレータ
|
26541-54J30-000 |
— | ||
| replacement | |||||
|
38
|
38
26541-64J30-000
PISTON,C-2 ACCUMULATOR
|
26541-64J30-000 |
— | ||
|
39
|
39
26522-54JT0-000
O-RING SET,FORWARD CLUTCH ACC
|
26522-54JT0-000 |
— | ||
|
40
|
40
26412-57B00-000 CIRCLIP,FWD CL ACC PSTN |
26412-57B00-000 |
US $5.23 |
||
|
41
|
41
26525-53J10-000
SPRING,FWD CL ACC NO.2
|
26525-53J10-000 |
— | ||
|
42
|
42
26587-54J50-000
SPRING,C-2 ACCUMULATOR NO.2
|
26587-54J50-000 |
— | ||
|
43
|
43
26541-54J50-000
ピストン,Cー3アキュムレータ
|
26541-54J50-000 |
— | ||
| replacement | |||||
|
43
|
43
26541-64J50-000
PISTON,C-3 ACCUMULATOR
|
26541-64J50-000 |
— | ||
|
44
|
44
26523-54JT0-000
O-RING SET,REV CLUTCH ACC
|
26523-54JT0-000 |
— | ||
|
45
|
45
26587-54J70-000
SPRING,C-3 ACCUMULATOR NO.1
|
26587-54J70-000 |
— | ||
|
46
|
46
26587-54J90-000
SPRING,C-3 ACCUMULATOR NO.2
|
26587-54J90-000 |
— | ||
|
47
|
47
26588-54J10-000
SPRING,C-3 ACCUMULATOR NO.3
|
26588-54J10-000 |
— | ||
|
48
|
48
26412-57B00-000 CIRCLIP,FWD CL ACC PSTN |
26412-57B00-000 |
US $5.23 |
||
|
49
|
49
24726-54J10-000
SPRING,PLATE STOPPER
|
24726-54J10-000 |
— | ||
|
50
|
50
24733-53J10-000 O-RING,OIL PIPE UNION |
24733-53J10-000 |
US $1.60 |
||
|
51
|
51
24732-53J10-000 UNION,OIL PIPE |
24732-53J10-000 |
US $22.40 |
||
|
52
|
52
24730-54J10-000
CASE ASSY,EXTENTION
|
24730-54J10-000 |
— | ||
|
53
|
53
29972-57B00-000 BOLT,ADAPTOR&T/M CASE NO.3 |
29972-57B00-000 |
US $16.34 |
||
|
54
|
54
24724-53J10-000
BOLT,ADAPTER&T/M CASE NO.1
|
24724-53J10-000 |
— | ||
|
55
|
55
24731-54J10-000 SEAL,ADAPTER CASE OIL |
24731-54J10-000 |
from US $11.32 |
||
