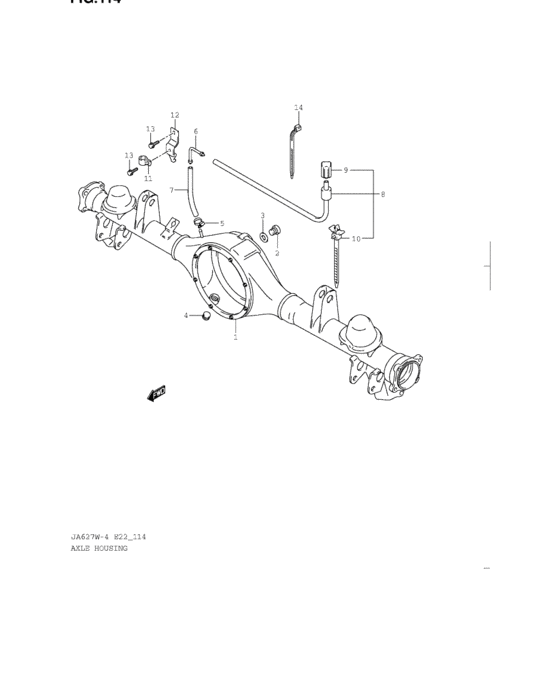

Axle housing (AXLE HOUSING) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46510-52D01-000
Housing,rear axle
N/ABS |
46510-52D01-000 |
— | ||
|
1
|
1
46510-52D51-000 HOUSING,RR AXLEW/ABS |
46510-52D51-000 |
US $1,183.36 |
||
|
2
|
2
09248-20003-000 PLUG |
09248-20003-000 |
from US $2.59 |
||
|
3
|
3
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $2.28 |
||
|
4
|
4
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
4
|
4
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
5
|
5
09400-16304-000 CLAMP |
09400-16304-000 |
from US $4.96 |
||
|
6
|
6
09367-08003-000 UNION |
09367-08003-000 |
US $42.70 |
||
|
7
|
7
46546-65D00-000 HOSE,BREATHER L:310L:310->270 |
46546-65D00-000 |
US $10.49 |
||
|
8
|
8
46550-52D00-000
HOSE ASSY,BREATHER NO.2
|
46550-52D00-000 |
— | ||
|
9
|
9
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
from US $1.92 |
||
|
10
|
10
09407-11402-000 CLAMP(L:90) |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
10
|
10
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
11
|
11
09403-14408-000 CLAMP |
09403-14408-000 |
from US $4.62 |
||
|
12
|
12
46548-52D00-000
BRACKET,UNION CLAMP
|
46548-52D00-000 |
— | ||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
14
|
14
09407-19401-000 CLAMP(L:190) |
09407-19401-000 |
from US $4.17 |
||
