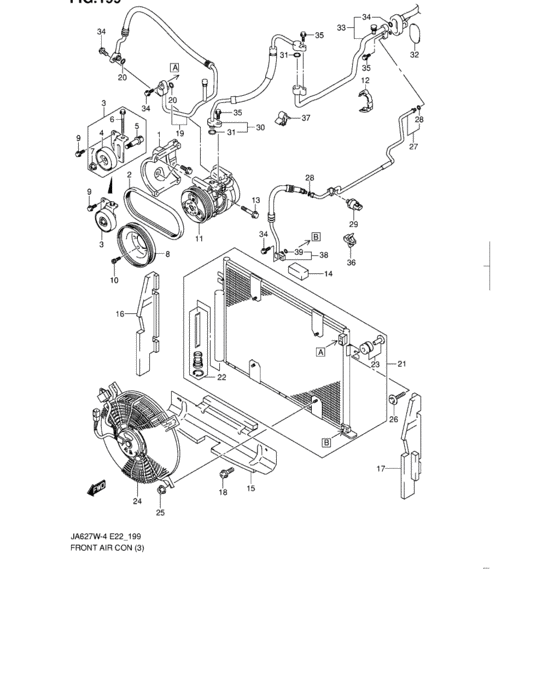

Front air conditioner (RHD:JA420WD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-54J40-000
Air conditioner set
|
95000-54J40-000 |
— | ||
|
1
|
1
95111-54J00-000
BRACKET,CPRSR
|
95111-54J00-000 |
— | ||
|
2
|
2
17521-61A00-000 BELT,WATER PUMP 4PK800 |
17521-61A00-000 |
from US $31.77 |
||
| replacement | |||||
|
2
|
2
17521-61A00-CDN
Belt,wtr pump 4pk800
|
17521-61A00-CDN |
— | ||
|
3
|
3
95130-66D00-000 BRACKET,TENSIONER |
95130-66D00-000 |
US $111.87 |
||
|
4
|
4
49160-50G10-000 PULLEY,BELT TENSION |
49160-50G10-000 |
US $135.79 |
||
|
5
|
5
49161-60B10-000 BOLT,BELT TENSION PULLEY |
49161-60B10-000 |
from US $7.84 |
||
|
6
|
6
09103-08352-000 BOLT(8X75) |
09103-08352-000 |
US $19.50 |
||
|
7
|
7
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
95131-66D00-000
PULLEY ADDITIONAL
|
95131-66D00-000 |
— | ||
|
9
|
9
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
9
|
9
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
10
|
10
07130-06123-000
Bolt
|
07130-06123-000 |
— | ||
| replacement | |||||
|
10
|
10
07130-0612A-000 BOLT |
07130-0612A-000 |
from US $0.96 |
||
|
11
|
11
95200-65DH0-000
Compressor assy
W/SINGLE AIR CON |
95200-65DH0-000 |
— | ||
| replacement | |||||
|
11
|
11
95200-65DH1-000 COMPRESSOR ASSYW/SINGLE AIR CON |
95200-65DH1-000 |
US $1,351.92 |
||
|
11
|
11
95200-65DJ0-000
COMPRESSOR ASSY
W/DUAL AIR CON |
95200-65DJ0-000 |
— | ||
|
12
|
12
09408-00184-000 CLAMP |
09408-00184-000 |
from US $4.64 |
||
|
13
|
13
01550-08753-000
Bolt
|
01550-08753-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0875B-000 BOLT |
01550-0875B-000 |
from US $1.40 |
||
|
13
|
13
01550-0875A-000 BOLT |
01550-0875A-000 |
from US $1.60 |
||
|
14
|
14
95821-54J00-000
INSULATOR,LWR
|
95821-54J00-000 |
— | ||
|
15
|
15
95824-54J00-000 INSULATOR,RDTR LWR |
95824-54J00-000 |
US $66.61 |
||
|
16
|
16
95826-54J00-000
INSULATOR,RDTR SIDE,R
|
95826-54J00-000 |
— | ||
|
17
|
17
95827-54J00-000
INSULATOR,RDTR SIDE,L
|
95827-54J00-000 |
— | ||
|
18
|
18
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
19
|
19
95720-54J40-000 HOSE,DISCHARGE |
95720-54J40-000 |
US $112.24 |
||
|
20
|
20
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
21
|
21
95310-54J10-000
Condenser comp
|
95310-54J10-000 |
— | ||
| replacement | |||||
|
21
|
21
95310-54J11-000 CONDENSER |
95310-54J11-000 |
from US $426.08 |
||
|
22
|
22
95339-58J00-000
ドライヤキット
|
95339-58J00-000 |
— | ||
| replacement | |||||
|
22
|
22
95339-58J10-000 DRYER KIT |
95339-58J10-000 |
from US $48.35 |
||
|
23
|
23
95851-60B00-000
BUSH,COND
|
95851-60B00-000 |
— | ||
|
24
|
24
95560-65D03-000 CONDENSER FAN ASSY |
95560-65D03-000 |
from US $266.09 |
||
|
25
|
25
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
26
|
26
09116-06129-000 BOLT(6X30) |
09116-06129-000 |
US $1.44 |
||
|
27
|
27
95731-54J40-000
Hose,liquid
W/SINGLE AIR CON |
95731-54J40-000 |
— | ||
| replacement | |||||
|
27
|
27
95731-54J42-000 HOSE,LIQUIDW/SINGLE AIR CON |
95731-54J42-000 |
US $164.86 |
||
|
27
|
27
95731-54J60-000
Hose,liquid
W/DUAL AIR CON |
95731-54J60-000 |
— | ||
| replacement | |||||
|
27
|
27
95731-54J62-000 HOSE,LIQUIDW/DUAL AIR CON |
95731-54J62-000 |
US $160.08 |
||
|
28
|
28
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
29
|
29
95526-50G10-000
Switch, dual pressure
|
95526-50G10-000 |
— | ||
| replacement | |||||
|
29
|
29
95526-50G30-000 SWITCH,DUAL PRESSURE |
95526-50G30-000 |
US $44.84 |
||
|
30
|
30
95710-54J40-000
HOSE,SUCTION
|
95710-54J40-000 |
— | ||
|
31
|
31
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
32
|
32
74812-70B01-000 GROMMET,A/C HOLEW/SINGLE AIR CON |
74812-70B01-000 |
US $5.45 |
||
|
33
|
33
95741-54J40-000
PIPE,SUCTION
W/SINGLE AIR CON |
95741-54J40-000 |
— | ||
|
33
|
33
95730-54J60-000
PIPE,LIQUID NO.1
W/DUAL AIR CON |
95730-54J60-000 |
— | ||
|
34
|
34
95896-54J00-000 O-RING |
95896-54J00-000 |
from US $1.60 |
||
|
35
|
35
01550-06203-000
Bolt
W/SINGLE AIR CON |
01550-06203-000 |
— | ||
| replacement | |||||
|
35
|
35
01550-0620B-000 BOLTBolt, inspection cap W/SINGLE AIR CON |
01550-0620B-000 |
from US $0.76 |
||
|
36
|
36
09403-08406-000 CLAMP |
09403-08406-000 |
from US $1.44 |
||
|
37
|
37
09403-16410-000 CLAMP |
09403-16410-000 |
from US $1.67 |
||
|
38
|
38
95731-54J80-000
HOSE,LIQUID
|
95731-54J80-000 |
— | ||
|
39
|
39
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
