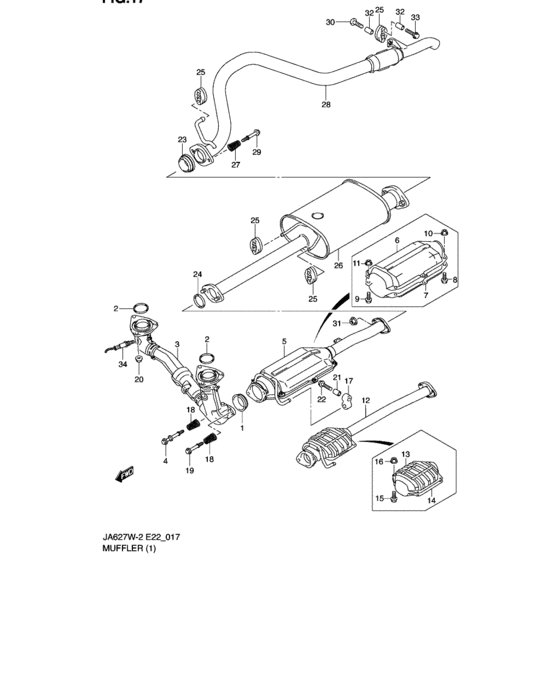

Muffler Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
2
|
2
14184-65D00-000 GASKET,EXH PIPE |
14184-65D00-000 |
from US $8.93 |
||
|
3
|
3
14190-67D14-000
Pipe, exhaust no.1
,2,Israel |
14190-67D14-000 |
— | ||
| replacement | |||||
|
3
|
3
14190-67DVV-000 PIPE SET,EXHAUST,2,Israel |
14190-67DVV-000 |
US $535.04 |
||
|
3
|
3
14190-67D05-000
パイプ,エキゾースト,NO.1
Chile,Australia,Brazil,Taiwan,Saudi Arabia |
14190-67D05-000 |
— | ||
| replacement | |||||
|
3
|
3
14190-67DVV-000 PIPE SET,EXHAUSTChile,Australia,Brazil,Taiwan,Saudi Arabia |
14190-67DVV-000 |
US $535.04 |
||
|
4
|
4
14193-77E00-000 BOLT,EXH PIPE |
14193-77E00-000 |
from US $13.68 |
||
|
5
|
5
14250-67D00-000
Pipe, exhaust no.2
,2,Taiwan,Israel,->14250-67D01,USED WITH 14300-52D21,AND 14630-52D21 |
14250-67D00-000 |
— | ||
| replacement | |||||
|
5
|
5
14250-67D4V-000
PIPE,EXH NO.2
,2,Taiwan,Israel,->14250-67D01,USED WITH 14300-52D21,AND 14630-52D21 |
14250-67D4V-000 |
— | ||
|
6
|
6
14251-65D20-000
カバー,キャタリストケース,アッパ
,2,Taiwan,Israel |
14251-65D20-000 |
— | ||
| replacement | |||||
|
6
|
6
14251-65D2V-000 COVER,CATACASE UPPER,2,Taiwan,Israel |
14251-65D2V-000 |
from US $23.55 |
||
|
7
|
7
14252-65D20-000
カバー,キャタリストケース,ロア
,2,Taiwan,Israel |
14252-65D20-000 |
— | ||
| replacement | |||||
|
7
|
7
14252-65D2V-000 COVER,CATACASE LOWER 77E-C03,2,Taiwan,Israel |
14252-65D2V-000 |
US $28.52 |
||
|
8
|
8
01550-06163-000
Bolt
,2,Taiwan,Israel |
01550-06163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0616B-000 BOLT,2,Taiwan,Israel |
01550-0616B-000 |
from US $0.76 |
||
|
8
|
8
01550-0616A-000 BOLT,2,Taiwan,Israel |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
01550-08163-000
Bolt, holder
,2,Taiwan,Israel |
01550-08163-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0816B-000 BOLT,2,Taiwan,Israel |
01550-0816B-000 |
from US $0.91 |
||
|
9
|
9
01550-0816A-000 BOLTBolt, rear ,2,Taiwan,Israel |
01550-0816A-000 |
from US $0.91 |
||
|
10
|
10
08316-10063-000
Nut
,2,Taiwan,Israel |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT,2,Taiwan,Israel |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
08316-10083-000
Nut
,2,Taiwan,Israel |
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT,2,Taiwan,Israel |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
14250-67D20-000
Pipe, exhaust no.2
Chile,->14250-67D21,USED WITH 14300-52D21,AND 14630-52D11,Australia,Brazil,Saudi Arabia,->14250-67D21,USED WITH 14300-52D21,AND 14630-52D21 |
14250-67D20-000 |
— | ||
|
13
|
13
14251-65D00-000
カバー,キャタリストケース,アッパ
Chile,Australia,Brazil,Saudi Arabia |
14251-65D00-000 |
— | ||
| replacement | |||||
|
13
|
13
14251-65D0V-000 COVER,CATACASE UPPERChile,Australia,Brazil,Saudi Arabia |
14251-65D0V-000 |
US $41.60 |
||
|
14
|
14
14252-65D60-000
カバー,キャタリストケースロア
Chile,Australia,Brazil,Saudi Arabia |
14252-65D60-000 |
— | ||
| replacement | |||||
|
14
|
14
14252-65D6V-000 COVER,CATACASE LOWER 65D-C02Chile,Australia,Brazil,Saudi Arabia |
14252-65D6V-000 |
US $20.42 |
||
|
15
|
15
01550-08163-000
Bolt, holder
Chile,Australia,Brazil,Saudi Arabia |
01550-08163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0816B-000 BOLTChile,Australia,Brazil,Saudi Arabia |
01550-0816B-000 |
from US $0.91 |
||
|
15
|
15
01550-0816A-000 BOLTBolt, rear Chile,Australia,Brazil,Saudi Arabia |
01550-0816A-000 |
from US $0.91 |
||
|
16
|
16
08316-10083-000
Nut
Chile,Australia,Brazil,Saudi Arabia |
08316-10083-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1008B-000 NUTChile,Australia,Brazil,Saudi Arabia |
08316-1008B-000 |
from US $0.76 |
||
|
17
|
17
14281-71C01-000 MOUNTING,MUF |
14281-71C01-000 |
from US $7.49 |
||
|
18
|
18
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
18
|
18
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
19
|
19
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
19
|
19
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
20
|
20
09159-10098-000 NUT |
09159-10098-000 |
from US $1.28 |
||
|
21
|
21
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
21
|
21
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
22
|
22
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
22
|
22
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
23
|
23
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
24
|
24
14184-67D00-000 GASKET,MUFFLER |
14184-67D00-000 |
from US $6.55 |
||
|
25
|
25
14281-58B01-000 MOUNTING,MUF |
14281-58B01-000 |
US $22.40 |
||
|
26
|
26
14300-52D20-000
Muffler, exhaust
Chile,->14300-52D21,USED WITH 14250-67D21,AND 14630-52D11,Australia,Brazil,Saudi Arabia,->14300-52D21,USED WITH 14250-67D21,AND 14630-52D21 |
14300-52D20-000 |
— | ||
| replacement | |||||
|
26
|
26
14300-52D21-000 MUFFLERChile,->14300-52D21,USED WITH 14250-67D21,AND 14630-52D11,Australia,Brazil,Saudi Arabia,->14300-52D21,USED WITH 14250-67D21,AND 14630-52D21 |
14300-52D21-000 |
US $436.48 |
||
|
27
|
27
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
27
|
27
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
28
|
28
14630-52D20-000
Pipe, tail
,2,4,Brazil,Taiwan,Saudi Arabia,Israel,->14630-52D21,USED WITH 14300-52D21,AND 14250-67D21 |
14630-52D20-000 |
— | ||
| replacement | |||||
|
28
|
28
14630-52D21-000 PIPE,TAIL,2,4,Brazil,Taiwan,Saudi Arabia,Israel,->14630-52D21,USED WITH 14300-52D21,AND 14250-67D21 |
14630-52D21-000 |
US $200.56 |
||
|
28
|
28
14630-52D10-000
Pipe,tail
Chile,->14630-52D11,USED WITH 14300-52D21,AND 14250-67D21 |
14630-52D10-000 |
— | ||
|
29
|
29
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
29
|
29
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
30
|
30
09139-08019-000 SCREW(8X35) |
09139-08019-000 |
US $23.60 |
||
|
31
|
31
09159-10049-000
Nut
|
09159-10049-000 |
— | ||
| replacement | |||||
|
31
|
31
09159-10102-000 NUT |
09159-10102-000 |
from US $0.97 |
||
|
32
|
32
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
32
|
32
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
33
|
33
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
33
|
33
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
34
|
34
18213-65D40-000
Sensor, oxygen lower
,2,Israel |
18213-65D40-000 |
— | ||
| replacement | |||||
|
34
|
34
18213-65D43-000
SENSOR,OXYGEN
,2,Israel |
18213-65D43-000 |
— | ||
