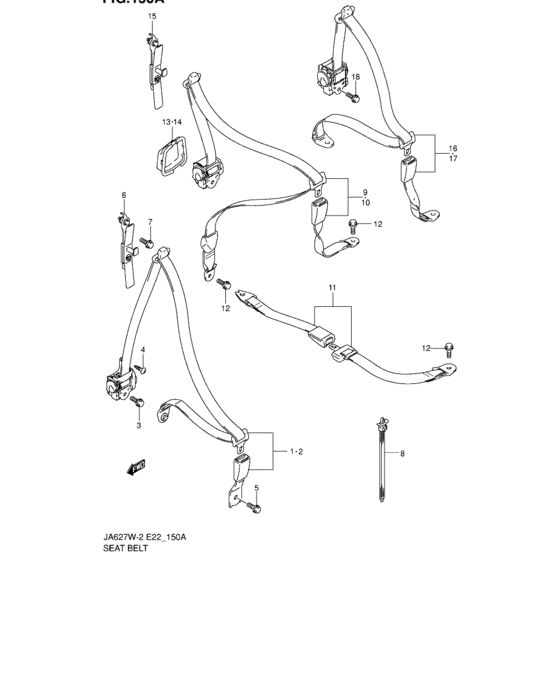

Seat belt Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-52DL0-L8Z
Belt assy, front rh
, |
84901-52DL0-L8Z |
— | ||
| replacement | |||||
|
1
|
1
84901-52DL1-L8Z
BELT ASSY,FR,R
, |
84901-52DL1-L8Z |
— | ||
|
1
|
1
84901-52DP0-L8Z
Belt assy, front rh
Australia |
84901-52DP0-L8Z |
— | ||
| replacements | |||||
|
1
|
1
84910-52D20-5PK
BUCKLE ASSY,FR BELT
Australia |
84910-52D20-5PK |
— | ||
|
1
|
1
84920-52DL1-L8Z
TONGUE ASSY,FR BELT,R
Australia |
84920-52DL1-L8Z |
— | ||
|
1
|
1
84901-52DM0-L8Z
Belt assy,fr,r
General,EC,Taiwan |
84901-52DM0-L8Z |
— | ||
|
1
|
1
84901-52DQ0-L8Z
Belt assy, front rh
Chile,Germany,Brazil,Saudi Arabia,China,Israel |
84901-52DQ0-L8Z |
— | ||
| replacements | |||||
|
1
|
1
84910-52D00-R8J
BUCKLE ASSY,FR BELT
Chile,Germany,Brazil,Saudi Arabia,China,Israel |
84910-52D00-R8J |
— | ||
|
1
|
1
84920-52DQ1-KK1 TONGUE ASSY,FR BELT,RChile,Germany,Brazil,Saudi Arabia,China,Israel |
84920-52DQ1-KK1 |
US $299.92 |
||
|
2
|
2
84902-52DM0-L8Z
BELT ASSY,FR,L
General,EC |
84902-52DM0-L8Z |
— | ||
|
2
|
2
84902-52DQ0-L8Z
Belt assy, front lh
,,4 |
84902-52DQ0-L8Z |
— | ||
| replacement | |||||
|
2
|
2
84902-52DQ1-L8Z
Seat-belt pretensioners
,,4 |
84902-52DQ1-L8Z |
— | ||
|
2
|
2
84902-52DL0-L8Z
Belt assy, front lh
Chile,Germany,Brazil,China,Israel |
84902-52DL0-L8Z |
— | ||
| replacement | |||||
|
2
|
2
84902-52DL1-L8Z
Seat-belt pretensioners
Chile,Germany,Brazil,China,Israel |
84902-52DL1-L8Z |
— | ||
|
2
|
2
84902-52DN0-L8Z
BELT ASSY,FR,L
Taiwan |
84902-52DN0-L8Z |
— | ||
|
2
|
2
84902-52DP0-L8Z
Belt assy, front lh
Saudi Arabia |
84902-52DP0-L8Z |
— | ||
| replacement | |||||
|
2
|
2
84902-52DP1-L8Z
BELT ASSY,FR,L
Saudi Arabia |
84902-52DP1-L8Z |
— | ||
|
3
|
3
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
4
|
4
03141-06103-000
Screw
|
03141-06103-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
5
|
5
09117-11001-000
Bolt (11x20)
|
09117-11001-000 |
— | ||
| replacement | |||||
|
5
|
5
09117-11002-000 BOLT(11X20) |
09117-11002-000 |
US $20.20 |
||
|
6
|
6
84990-65DB0-6GS ADJUSTER ASSY,FR SHLDR |
84990-65DB0-6GS |
US $72.50 |
||
|
7
|
7
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
8
|
8
09407-11402-000 CLAMP(L:90)Australia,Taiwan,Saudi Arabia |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
8
|
8
09407-17402-000 CLAMPAustralia,Taiwan,Saudi Arabia |
09407-17402-000 |
from US $1.98 |
||
|
9
|
9
84904-52DL0-L8Z
Belt assy,rr,r
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84904-52DL0-L8Z |
— | ||
| replacements | |||||
|
9
|
9
84950-52D00-T01
BUCKLE ASSY,RR BELT
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84950-52D00-T01 |
— | ||
|
9
|
9
84960-52DL0-L8Z
TONGUE ASSY,RR BELT,R
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84960-52DL0-L8Z |
— | ||
|
9
|
9
84904-52DN0-L8Z
Belt assy,rr r
,2,Israel,SEE NOTE 2 |
84904-52DN0-L8Z |
— | ||
|
10
|
10
84905-52DL0-L8Z
Belt assy,rr,l
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84905-52DL0-L8Z |
— | ||
| replacements | |||||
|
10
|
10
84950-52D00-T01
BUCKLE ASSY,RR BELT
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84950-52D00-T01 |
— | ||
|
10
|
10
84980-52DL0-L8Z
TONGUE ASSY,RR BELT,L
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84980-52DL0-L8Z |
— | ||
|
10
|
10
84905-52DN0-L8Z
BELT ASSY,RR,L
,2,Israel,SEE NOTE 2 |
84905-52DN0-L8Z |
— | ||
|
11
|
11
84906-52DL0-T01
Belt assy,rr center
,,Chile,General,1,2,4,,Brazil,Saudi Arabia,China,Israel |
84906-52DL0-T01 |
— | ||
| replacements | |||||
|
11
|
11
84975-52DA0-T01
BUCKLE ASSY,RR CTR BELT
,,Chile,General,1,2,4,,Brazil,Saudi Arabia,China,Israel |
84975-52DA0-T01 |
— | ||
|
11
|
11
84985-52DL0-T01
TONGUE ASSY,CTR BELT
,,Chile,General,1,2,4,,Brazil,Saudi Arabia,China,Israel |
84985-52DL0-T01 |
— | ||
|
11
|
11
84906-52DA0-T01
BELT ASSY,RR CENTER
Taiwan |
84906-52DA0-T01 |
— | ||
|
12
|
12
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
13
|
13
84967-52DA0-000
COVER,RR ELR HOLE,R
|
84967-52DA0-000 |
— | ||
|
14
|
14
84977-52DA0-000 COVER,RR ELR HOLE,L |
84977-52DA0-000 |
US $19.69 |
||
|
15
|
15
84990-65DB0-6GS ADJUSTER ASSY,FR SHLDR |
84990-65DB0-6GS |
US $72.50 |
||
|
16
|
16
84904-52DQ0-L8Z
Belt assy,3rd,r
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84904-52DQ0-L8Z |
— | ||
| replacements | |||||
|
16
|
16
84950-52D50-T01
BUCKLE ASSY,RR BELT
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84950-52D50-T01 |
— | ||
|
16
|
16
84960-52DQ0-L8Z
TONGUE ASSY,FR BELT
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84960-52DQ0-L8Z |
— | ||
|
16
|
16
84904-52DR0-L8Z
BELT ASSY,3RD,R
,2,Israel,SEE NOTE 2 |
84904-52DR0-L8Z |
— | ||
|
17
|
17
84905-52DQ0-L8Z
Belt assy,3rd,l
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84905-52DQ0-L8Z |
— | ||
| replacements | |||||
|
17
|
17
84950-52D00-T01
BUCKLE ASSY,RR BELT
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84950-52D00-T01 |
— | ||
|
17
|
17
84980-52DL0-L8Z
TONGUE ASSY,RR BELT,L
,,Chile,General,1,2,4,,Brazil,Taiwan,Saudi Arabia,China,Israel |
84980-52DL0-L8Z |
— | ||
|
17
|
17
84905-52DR0-L8Z
BELT ASSY,3RD,L
,2,Israel,SEE NOTE 2 |
84905-52DR0-L8Z |
— | ||
|
18
|
18
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
