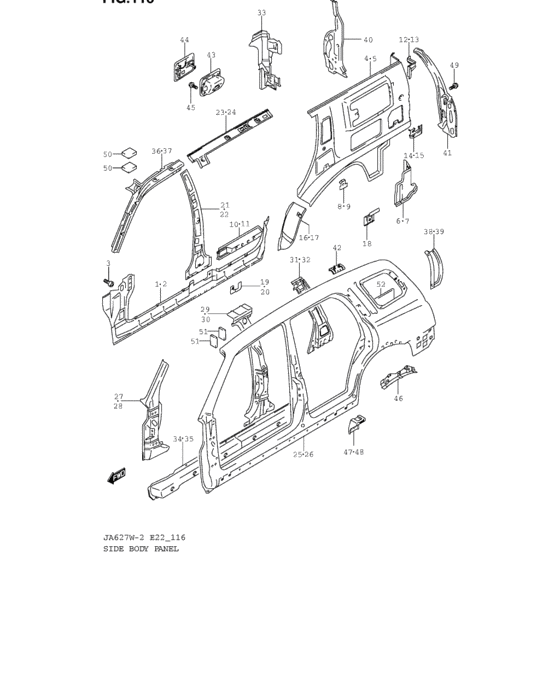

Side body panel (SIDE BODY PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61480-52D00-000
Panel, fr plr inner lower rh
LHD |
61480-52D00-000 |
— | ||
| replacement | |||||
|
1
|
1
61480-52D01-000
PANEL,FR PILLAR INNER LWR,R
LHD |
61480-52D01-000 |
— | ||
|
1
|
1
61480-52D10-000
パネル,フロントピラーインナロア,ライト
RHD |
61480-52D10-000 |
— | ||
| replacement | |||||
|
1
|
1
61480-52D11-000
PANEL,FR PILLAR INNER LWR,R
RHD |
61480-52D11-000 |
— | ||
|
2
|
2
61580-52D00-000
Panel, fr plr inner lower lh
LHD |
61580-52D00-000 |
— | ||
| replacement | |||||
|
2
|
2
61580-52D41-000
PANEL,FR PILLAR INNER LWR,L
LHD |
61580-52D41-000 |
— | ||
|
2
|
2
61580-52D10-000
Panel, fr plr inner lower lh
RHD |
61580-52D10-000 |
— | ||
| replacement | |||||
|
2
|
2
61580-52D51-000
PANEL,FR PILLAR INNER LWR,L
RHD |
61580-52D51-000 |
— | ||
|
3
|
3
09119-06090-000 Bolt |
09119-06090-000 |
US $11.40 |
||
|
4
|
4
63111-52D00-000
PANEL,RR QUARTER INNER,R
|
63111-52D00-000 |
— | ||
|
5
|
5
63511-52D00-000
PANEL,RR QUARTER INNER,L
|
63511-52D00-000 |
— | ||
|
6
|
6
63121-52D00-000
PANEL,RR WHEEL HSG OTR RR,R
|
63121-52D00-000 |
— | ||
|
7
|
7
63521-52D00-000
PANEL,RR WHEEL HSG OTR RR,L
|
63521-52D00-000 |
— | ||
|
8
|
8
63141-65D00-000 REINFORCEMENT,SEAT BELT RETR |
63141-65D00-000 |
US $5.48 |
||
|
9
|
9
63141-52D00-000
REINF,SEAT BELT RETRACTOR,L
|
63141-52D00-000 |
— | ||
|
10
|
10
63151-52D00-000
リンフォースメント,サイドシルリヤ,ライト
|
63151-52D00-000 |
— | ||
| replacement | |||||
|
10
|
10
63151-52D01-000
REINFORCEMENT,SIDE SILL RR,R
|
63151-52D01-000 |
— | ||
|
11
|
11
63551-52D00-000
リンフォースメント,サイドシルリヤ,レフト
|
63551-52D00-000 |
— | ||
| replacement | |||||
|
11
|
11
63551-52D01-000
REINFORCEMENT,SIDE SILL RR,L
|
63551-52D01-000 |
— | ||
|
12
|
12
63161-52D00-000
REINF,RR SEAT BELT ANCHORAGE,R
|
63161-52D00-000 |
— | ||
|
13
|
13
63561-52D00-000
REINF,RR SEAT BELT ANCHORAGE,L
|
63561-52D00-000 |
— | ||
|
14
|
14
63171-52D00-000 REINF,SEAT BELT RETRACTOR RR,R |
63171-52D00-000 |
US $9.38 |
||
|
15
|
15
63571-52D00-000
REINF,SEAT BELT RETRACTOR RR,L
|
63571-52D00-000 |
— | ||
|
16
|
16
63211-52D00-000
パネル,リヤホイールハウジングアウタフロント,ライト
->63211-52D01,USED WITH 09250-17002 |
63211-52D00-000 |
— | ||
| replacements | |||||
|
16
|
16
63211-52D01-000
PANEL,RR WHEEL HSG OTR FR,R
->63211-52D01,USED WITH 09250-17002 |
63211-52D01-000 |
— | ||
|
16
|
16
09250-17002-000 CAP(OD:25.6)->63211-52D01,USED WITH 09250-17002 |
09250-17002-000 |
US $1.60 |
||
|
16
|
16
63211-52D01-000
PANEL,RR WHEEL HSG OTR FR,R
JSAHTX92V00150476~,JS3TX92V 24120648~,JSAHTX92V24100071~,JSAHTX92V20100003~ |
63211-52D01-000 |
— | ||
|
17
|
17
63611-52D00-000
パネル,リヤホイールハウジングアウタフロント,レフト
->63611-52D01,USED WITH 09250-17002 |
63611-52D00-000 |
— | ||
| replacements | |||||
|
17
|
17
63611-52D01-000 PANEL,RR WHEEL HSG OTR FR,L->63611-52D01,USED WITH 09250-17002 |
63611-52D01-000 |
US $38.64 |
||
|
17
|
17
09250-17002-000 CAP(OD:25.6)->63611-52D01,USED WITH 09250-17002 |
09250-17002-000 |
US $1.60 |
||
|
17
|
17
63611-52D01-000 PANEL,RR WHEEL HSG OTR FR,LJSAHTX92V00150476~,JS3TX92V 24120648~,JSAHTX92V24100071~,JSAHTX92V20100003~ |
63611-52D01-000 |
US $38.64 |
||
|
18
|
18
63581-52D00-000
REINFORCEMENT,RR A/C
|
63581-52D00-000 |
— | ||
|
19
|
19
63131-65D00-000 REINF,CTR PILLAR RETRACTOR,R |
63131-65D00-000 |
US $10.75 |
||
|
20
|
20
63531-65D00-000 REINFORCEMENT,CTR PLR RETR,L |
63531-65D00-000 |
US $10.75 |
||
|
21
|
21
63221-52D00-000
パネル,センタピラーインナ,ライト
|
63221-52D00-000 |
— | ||
| replacement | |||||
|
21
|
21
63221-52D01-000
PANEL,CTR PILLAR INNER,R
|
63221-52D01-000 |
— | ||
|
22
|
22
63621-52D00-000
PANEL,CTR PILLAR INNER,L
|
63621-52D00-000 |
— | ||
|
23
|
23
63231-52D00-000
PANEL,ROOF SIDE INR,R
|
63231-52D00-000 |
— | ||
|
24
|
24
63631-52D00-000
PANEL,ROOF SIDE INR,L
|
63631-52D00-000 |
— | ||
|
25
|
25
64100-52812-000
Panel set, side body outer rh
LHD,->64100-52813,USED WITH 09250-10016(7PCS),AND 09250-15012 |
64100-52812-000 |
— | ||
| replacements | |||||
|
25
|
25
64100-52815-000
PANEL SET,SIDE BODY OUTER,R
LHD,->64100-52813,USED WITH 09250-10016(7PCS),AND 09250-15012 |
64100-52815-000 |
— | ||
|
25
|
25
09250-10016-000 CAP(OD:16.2)LHD,->64100-52813,USED WITH 09250-10016(7PCS),AND 09250-15012 |
09250-10016-000 |
US $9.90 |
||
|
25
|
25
09250-15012-000 CAP(OD:23.5)LHD,->64100-52813,USED WITH 09250-10016(7PCS),AND 09250-15012 |
09250-15012-000 |
US $14.40 |
||
|
25
|
25
64100-52813-000
Panel set, side body outer rh
LHD,JSAHTX92V00151105~,JS3TX92V 24126567~,JSAHTX92V24100071~,JSAHTX92V20100003~ |
64100-52813-000 |
— | ||
| replacement | |||||
|
25
|
25
64100-52815-000
PANEL SET,SIDE BODY OUTER,R
LHD,JSAHTX92V00151105~,JS3TX92V 24126567~,JSAHTX92V24100071~,JSAHTX92V20100003~ |
64100-52815-000 |
— | ||
|
25
|
25
64111-52D51-000
Panel, side body outer rh
RHD,->64111-52D53,USED WITH 09250-10016(7PCS),AND 09250-15012 |
64111-52D51-000 |
— | ||
| replacements | |||||
|
25
|
25
09250-10016-000 CAP(OD:16.2)RHD,->64111-52D53,USED WITH 09250-10016(7PCS),AND 09250-15012 |
09250-10016-000 |
US $9.90 |
||
|
25
|
25
09250-15012-000 CAP(OD:23.5)RHD,->64111-52D53,USED WITH 09250-10016(7PCS),AND 09250-15012 |
09250-15012-000 |
US $14.40 |
||
|
25
|
25
64111-52D53-000
パネル,サイドボディアウタ,ライト
RHD,JSAHTX92V00151105~ |
64111-52D53-000 |
— | ||
|
26
|
26
64500-52831-000
Panel set, side body outer lh
LHD,->64500-52832,USED WITH 09250-10016(7PCS),AND 09250-15012 |
64500-52831-000 |
— | ||
| replacements | |||||
|
26
|
26
09250-10016-000 CAP(OD:16.2)LHD,->64500-52832,USED WITH 09250-10016(7PCS),AND 09250-15012 |
09250-10016-000 |
US $9.90 |
||
|
26
|
26
09250-15012-000 CAP(OD:23.5)LHD,->64500-52832,USED WITH 09250-10016(7PCS),AND 09250-15012 |
09250-15012-000 |
US $14.40 |
||
|
26
|
26
64500-52832-000
Panel set, side body outer lh
LHD,JSAHTX92V00151105~,JS3TX92V 24126567~,JSAHTX92V24100071~,JSAHTX92V20100003~ |
64500-52832-000 |
— | ||
|
26
|
26
64500-52821-000
Panel set, side body outer lh
RHD,->64500-52823,USED WITH 09250-10016(7PCS),AND 09250-15012 |
64500-52821-000 |
— | ||
| replacements | |||||
|
26
|
26
09250-10016-000 CAP(OD:16.2)RHD,->64500-52823,USED WITH 09250-10016(7PCS),AND 09250-15012 |
09250-10016-000 |
US $9.90 |
||
|
26
|
26
09250-15012-000 CAP(OD:23.5)RHD,->64500-52823,USED WITH 09250-10016(7PCS),AND 09250-15012 |
09250-15012-000 |
US $14.40 |
||
|
26
|
26
64500-52823-000
パネル,サイドボディアウタ,レフト
RHD,JSAHTX92V00151105~ |
64500-52823-000 |
— | ||
|
27
|
27
64120-52D00-000
リンフォースメント,フロントピラー,ライト
|
64120-52D00-000 |
— | ||
| replacement | |||||
|
27
|
27
64120-52D01-000
REINFORCEMENT,FR PILLAR,R
|
64120-52D01-000 |
— | ||
|
28
|
28
64520-52D00-000
リンフォースメント,フロントピラー,レフト
|
64520-52D00-000 |
— | ||
| replacement | |||||
|
28
|
28
64520-52D01-000
REINFORCEMENT,FR PILLAR,L
|
64520-52D01-000 |
— | ||
|
29
|
29
64130-52D00-000
リンフォースメント,センタピラー,ライト
|
64130-52D00-000 |
— | ||
| replacement | |||||
|
29
|
29
64130-52D01-000
Reinf,center pillar,r
|
64130-52D01-000 |
— | ||
|
30
|
30
64530-52D00-000
リンフォースメント,センタピラー,レフト
|
64530-52D00-000 |
— | ||
| replacement | |||||
|
30
|
30
64530-52D01-000
REINFORCEMENT,CTR PILLAR,L
|
64530-52D01-000 |
— | ||
|
31
|
31
64140-52D00-000
Reinf, rr pillar rh
|
64140-52D00-000 |
— | ||
| replacement | |||||
|
31
|
31
64140-52D02-000
REINFORCEMENT,RR PILLAR,R
|
64140-52D02-000 |
— | ||
|
31
|
31
64140-52D02-000
REINFORCEMENT,RR PILLAR,R
JSAHTX92V00150001~,JS3TX92V 24150001~,JSAHTX92V24150001~,JSAHTX92V20150001~ |
64140-52D02-000 |
— | ||
|
32
|
32
64540-52D00-000
Reinf, rr pillar lh
|
64540-52D00-000 |
— | ||
| replacement | |||||
|
32
|
32
64540-52D02-000
REINFORCEMENT,RR PILLAR,L
|
64540-52D02-000 |
— | ||
|
32
|
32
64540-52D02-000
REINFORCEMENT,RR PILLAR,L
JSAHTX92V00150001~,JS3TX92V 24150001~,JSAHTX92V24150001~,JSAHTX92V20150001~ |
64540-52D02-000 |
— | ||
|
33
|
33
64150-52D00-000 REINFORCEMENT,BACK PILLAR,R |
64150-52D00-000 |
US $156.77 |
||
|
34
|
34
64160-52D00-000
リンフォースメント,サイドシル,ライト
|
64160-52D00-000 |
— | ||
| replacement | |||||
|
34
|
34
64160-52D02-000
REINFORCEMENT,SIDE SILL,R
|
64160-52D02-000 |
— | ||
|
35
|
35
64560-52D00-000
リンフォースメント,サイドシル,レフト
|
64560-52D00-000 |
— | ||
| replacement | |||||
|
35
|
35
64560-52D02-000
REINFORCEMENT,SIDE SILL,L
|
64560-52D02-000 |
— | ||
|
36
|
36
64210-52D00-000
パネル,フロントピラーインナ,ライト
|
64210-52D00-000 |
— | ||
| replacements | |||||
|
36
|
36
64210-52D01-000
PANEL,FR PILLAR INNER,R
|
64210-52D01-000 |
— | ||
|
36
|
36
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
37
|
37
64610-52D00-000
パネル,フロントピラーインナ,レフト
|
64610-52D00-000 |
— | ||
| replacements | |||||
|
37
|
37
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
37
|
37
64610-52D01-000
PANEL,FR PILLAR INNER,L
|
64610-52D01-000 |
— | ||
|
38
|
38
64221-52D00-000 PANEL,AIR OUTLET,R |
64221-52D00-000 |
US $16.67 |
||
|
39
|
39
64621-52D00-000
PANEL,AIR OUTLET,L
|
64621-52D00-000 |
— | ||
|
40
|
40
64231-65D11-000
Panel, back pillar outer rh
|
64231-65D11-000 |
— | ||
| replacement | |||||
|
40
|
40
64231-65D12-000 PANEL,BACK PILLAR OUTER,R |
64231-65D12-000 |
US $115.92 |
||
|
41
|
41
64630-52D00-000
Panel, back pillar outer lh
|
64630-52D00-000 |
— | ||
| replacement | |||||
|
41
|
41
64630-52D02-000 PANEL,BACK PILLAR OUTER,L |
64630-52D02-000 |
US $138.74 |
||
|
42
|
42
64261-52D00-000 REINFORCEMENT,ROOF RAIL |
64261-52D00-000 |
US $25.02 |
||
|
43
|
43
64241-65D00-000 BOX,FUEL INLET |
64241-65D00-000 |
US $45.63 |
||
|
44
|
44
65950-65D03-000
リッド,フューエル,インレット
|
65950-65D03-000 |
— | ||
| replacement | |||||
|
44
|
44
65950-65D04-000 LID,FUEL INLET |
65950-65D04-000 |
US $54.40 |
||
|
45
|
45
02162-05103-000
Screw
|
02162-05103-000 |
— | ||
| replacement | |||||
|
45
|
45
02162-0510A-000 SCREW |
02162-0510A-000 |
from US $2.82 |
||
|
46
|
46
64251-52D00-000
HOLDER,RR QTR SPLASH
|
64251-52D00-000 |
— | ||
|
47
|
47
64252-52D00-000 HOLDER,SIDE SILL SPLASH,R |
64252-52D00-000 |
US $10.78 |
||
|
48
|
48
64652-52D00-000 HOLDER,SIDE SILL SPLASH,L |
64652-52D00-000 |
US $12.95 |
||
|
49
|
49
09122-76003-000 SCREW(6X16)Bolt (6x16) |
09122-76003-000 |
US $11.80 |
||
|
50
|
50
83921-82C00-000 PAD |
83921-82C00-000 |
US $4.16 |
||
|
51
|
51
83921-82C00-000 PAD |
83921-82C00-000 |
US $4.16 |
||
|
52
|
52
83971-54F00-000 SHEET 185X75X1.8 |
83971-54F00-000 |
US $4.45 |
||
