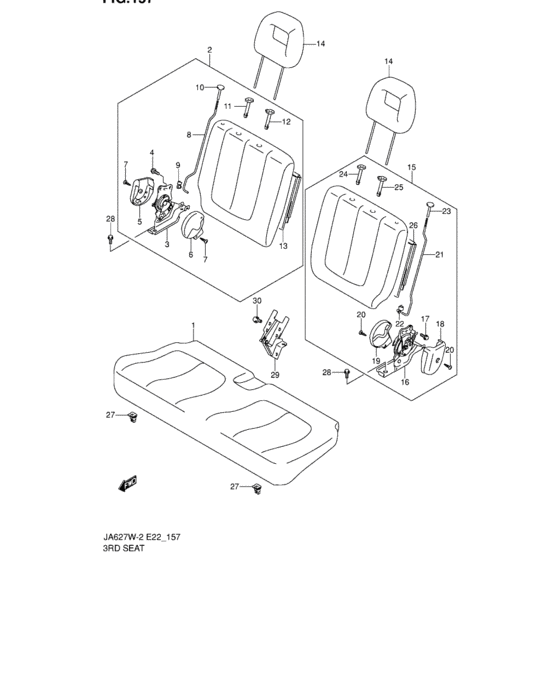

3rd seat (3-ROW) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88101-52DA0-GL4
Cushion assy,3rd
|
88101-52DA0-GL4 |
— | ||
|
2
|
2
88301-52DL0-GL4
Back assy,3rd,r
,,Chile,General,1,2,4,Brazil,Israel |
88301-52DL0-GL4 |
— | ||
|
2
|
2
88301-52DA0-GL4
Back assy, 3rd rh
Saudi Arabia |
88301-52DA0-GL4 |
— | ||
|
3
|
3
88210-52DA0-000
リクライニングアッシ,サード,ライト
|
88210-52DA0-000 |
— | ||
| replacement | |||||
|
3
|
3
88210-52DA1-000
RECLINING ASSY,RR,R
|
88210-52DA1-000 |
— | ||
|
4
|
4
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
5
|
5
87221-65DL0-T01
COVER,RR RECL OUTSIDE,R
|
87221-65DL0-T01 |
— | ||
|
6
|
6
88222-52DA0-T01
COVER,3RD RECL INSIDE,R
|
88222-52DA0-T01 |
— | ||
|
7
|
7
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
7
|
7
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
8
|
8
88215-52DL0-000
ROD,3RD RCLNG,R
,,10,General,1,2,4,Brazil,Israel |
88215-52DL0-000 |
— | ||
|
8
|
8
88215-52DA0-000
ROD,3RD RCLNG,R
Saudi Arabia |
88215-52DA0-000 |
— | ||
|
9
|
9
09403-04306-000 CLAMPConnector, choke rod |
09403-04306-000 |
US $20.20 |
||
|
10
|
10
87211-74G00-T01
Knob, rear back (gray)
|
87211-74G00-T01 |
— | ||
| replacement | |||||
|
10
|
10
87211-74G10-T01 KNOB,RR BACK |
87211-74G10-T01 |
US $4.16 |
||
|
11
|
11
85341-81A00-T01 GUIDE,HEADRESTRAINT |
85341-81A00-T01 |
US $6.04 |
||
|
12
|
12
85840-81A00-T01
Guide, headrestraint (gray)
|
85840-81A00-T01 |
— | ||
| replacement | |||||
|
12
|
12
85840-81A10-T01 GUIDE,HEADRESTRAINT |
85840-81A10-T01 |
US $13.73 |
||
|
13
|
13
88390-52DG1-R1K
Board assy, 3rd back
|
88390-52DG1-R1K |
— | ||
| replacement | |||||
|
13
|
13
88390-52DG2-R1K
BOARD ASSY,3RD BACK,R
|
88390-52DG2-R1K |
— | ||
|
14
|
14
86401-81A60-R0T
Headrestraint assy
|
86401-81A60-R0T |
— | ||
| replacement | |||||
|
14
|
14
86401-81A61-R0T
Headrestraint assy
|
86401-81A61-R0T |
— | ||
|
15
|
15
88302-52DL0-GL4
Back assy,3rd,l
,,Chile,General,1,2,4,Brazil,Israel |
88302-52DL0-GL4 |
— | ||
|
15
|
15
88302-52DA0-GL4
Back assy, 3rd lh
Saudi Arabia |
88302-52DA0-GL4 |
— | ||
|
16
|
16
88710-52DA0-000
リクライニングアッシ,サード,レフト
|
88710-52DA0-000 |
— | ||
| replacement | |||||
|
16
|
16
88710-52DA1-000
RECLINING ASSY,RR,L
|
88710-52DA1-000 |
— | ||
|
17
|
17
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
18
|
18
87721-65DL0-T01
Cover,rr recl outside,l(gray)
|
87721-65DL0-T01 |
— | ||
|
19
|
19
88722-52DA0-T01
COVER,3RD RECL INSIDE,L
|
88722-52DA0-T01 |
— | ||
|
20
|
20
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
21
|
21
88715-52DL0-000
ROD,3RD RCLNG,L
,,Chile,General,1,2,4,Brazil,Israel |
88715-52DL0-000 |
— | ||
|
21
|
21
88715-52DA0-000
ROD,3RD RCLNG,L
Saudi Arabia |
88715-52DA0-000 |
— | ||
|
22
|
22
09403-04306-000 CLAMPConnector, choke rod |
09403-04306-000 |
US $20.20 |
||
|
23
|
23
87211-74G00-T01
Knob, rear back (gray)
|
87211-74G00-T01 |
— | ||
| replacement | |||||
|
23
|
23
87211-74G10-T01 KNOB,RR BACK |
87211-74G10-T01 |
US $4.16 |
||
|
24
|
24
85341-81A00-T01 GUIDE,HEADRESTRAINT |
85341-81A00-T01 |
US $6.04 |
||
|
25
|
25
85840-81A00-T01
Guide, headrestraint (gray)
|
85840-81A00-T01 |
— | ||
| replacement | |||||
|
25
|
25
85840-81A10-T01 GUIDE,HEADRESTRAINT |
85840-81A10-T01 |
US $13.73 |
||
|
26
|
26
88890-52DG1-R1K
Board assy, 3rd back
|
88890-52DG1-R1K |
— | ||
| replacement | |||||
|
26
|
26
88890-52DG2-R1K
BOARD ASSY,3RD BACK,L
|
88890-52DG2-R1K |
— | ||
|
27
|
27
87460-76G00-000
フック,リヤシートクッション
|
87460-76G00-000 |
— | ||
| replacement | |||||
|
27
|
27
87460-76G01-000 HOOK,RR SEAT CUSH |
87460-76G01-000 |
US $1.92 |
||
|
28
|
28
01551-10203-000
Bolt, 3rd striker
|
01551-10203-000 |
— | ||
| replacement | |||||
|
28
|
28
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
|
29
|
29
88950-52DA0-000
HINGE,3RD BACK CTR
|
88950-52DA0-000 |
— | ||
|
30
|
30
01551-10203-000
Bolt, 3rd striker
|
01551-10203-000 |
— | ||
| replacement | |||||
|
30
|
30
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
