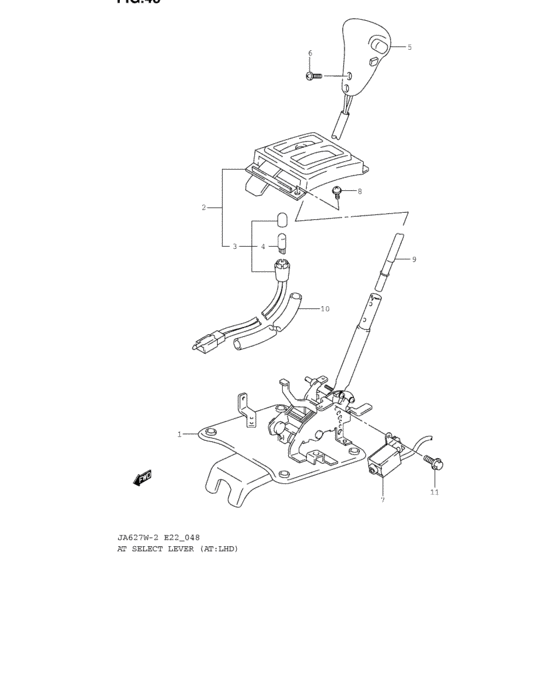

At select lever (AT:LHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-82D70-000
Lever assy, select
Chile,EC,Germany,Brazil,China,Israel |
28110-82D70-000 |
— | ||
| replacement | |||||
|
1
|
1
28110-82D50-000
LEVER ASSY,SELECT
Chile,EC,Germany,Brazil,China,Israel |
28110-82D50-000 |
— | ||
|
1
|
1
28110-82D50-000
LEVER ASSY,SELECT
Taiwan,Saudi Arabia |
28110-82D50-000 |
— | ||
|
2
|
2
28150-65D30-000
INDICATOR ASSY,SELECT LEVER
|
28150-65D30-000 |
— | ||
|
3
|
3
28180-65D10-000 LAMP ASSY,ILLUM |
28180-65D10-000 |
US $13.17 |
||
|
4
|
4
28181-65D10-000 BULB,ILLUM LAMP |
28181-65D10-000 |
from US $1.67 |
||
|
5
|
5
28160-65D30-000
KNOB ASSY,SEL LEVER
Chile,EC,Germany,Brazil,Saudi Arabia,Israel |
28160-65D30-000 |
— | ||
| replacement | |||||
|
5
|
5
28160-65D31-000 KNOB ASSY,SEL LEVERChile,EC,Germany,Brazil,Saudi Arabia,Israel |
28160-65D31-000 |
US $93.84 |
||
|
5
|
5
28160-65DP0-5PK
KNOB ASSY,SELECT LEVER
Taiwan,China,LIMITED:Chile,Germany,Saudi Arabia |
28160-65DP0-5PK |
— | ||
|
6
|
6
09125-05117-000 SCREW(5X6)Screw (5x6) |
09125-05117-000 |
from US $0.96 |
||
|
7
|
7
28610-54G10-000 SOLENOID,SHIFT LOCK |
28610-54G10-000 |
US $133.60 |
||
|
8
|
8
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
9
|
9
28164-62B80-000
GUIDE,DETENT RELEASE ROD
|
28164-62B80-000 |
— | ||
|
10
|
10
28118-64B61-000 TUBE,SWITCH WIRE HARNESS |
28118-64B61-000 |
US $1.88 |
||
|
11
|
11
09118-05006-000 BOLT(5X8) |
09118-05006-000 |
US $19.90 |
||
