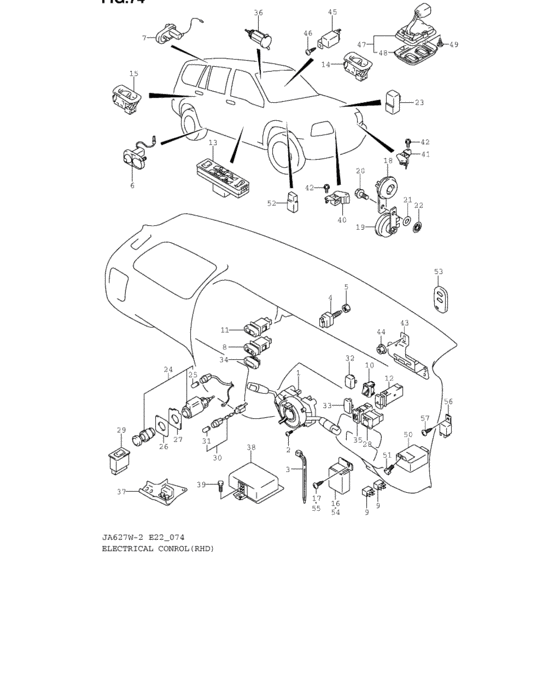

Electrical control (RHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-65D30-000 SWITCH ASSY,COMB |
37400-65D30-000 |
US $1,257.04 |
||
|
2
|
2
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
4
|
4
37740-60D01-000 SWITCH ASSY,STOP LAMP |
37740-60D01-000 |
US $42.40 |
||
|
5
|
5
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
6
|
6
37670-65D00-000
Switch assy,door
|
37670-65D00-000 |
— | ||
| replacement | |||||
|
6
|
6
37670-65D01-000 SWITCH ASSY,DOOR |
37670-65D01-000 |
from US $8.75 |
||
|
7
|
7
37670-65D00-000
Switch assy,door
|
37670-65D00-000 |
— | ||
| replacement | |||||
|
7
|
7
37670-65D01-000 SWITCH ASSY,DOOR |
37670-65D01-000 |
from US $8.75 |
||
|
8
|
8
37860-64G00-000 SWITCH ASSY,RR DEFOGGER |
37860-64G00-000 |
US $52.62 |
||
|
9
|
9
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
10
|
10
37285-64G00-000 CASE,COIN,General,Australia |
37285-64G00-000 |
US $9.60 |
||
|
11
|
11
37430-64G00-000 SWITCH ASSY,HAZARD WARNING |
37430-64G00-000 |
US $52.62 |
||
|
12
|
12
37280-75F10-000 SWITCH ASSY,RR FOG |
37280-75F10-000 |
US $72.86 |
||
|
13
|
13
37990-65D20-T01 SWITCH ASSY,P/W MASTER |
37990-65D20-T01 |
US $345.92 |
||
|
14
|
14
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) |
37995-75F00-T01 |
from US $65.66 |
||
|
15
|
15
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) |
37995-75F00-T01 |
from US $65.66 |
||
|
16
|
16
38700-65D10-000
CONTROLLER ASSY,PWR DR LOCK
N/KEY LESS ENTRY |
38700-65D10-000 |
— | ||
|
17
|
17
03142-05163-000
Screw
N/KEY LESS ENTRY |
03142-05163-000 |
— | ||
| replacement | |||||
|
17
|
17
03141-0516A-000 SCREWN/KEY LESS ENTRY |
03141-0516A-000 |
from US $0.80 |
||
|
18
|
18
38500-65D20-000 HORN ASSY,HIGH PITCHED,,General |
38500-65D20-000 |
US $62.93 |
||
|
18
|
18
38500-65D30-000
ホーンアッシ,ハイピッチド
Australia |
38500-65D30-000 |
— | ||
| replacement | |||||
|
18
|
18
38500-65D31-000 HORN ASSYAustralia |
38500-65D31-000 |
US $44.16 |
||
|
19
|
19
38500-65D10-000
ホーンアッシ,ローピッチド
|
38500-65D10-000 |
— | ||
| replacement | |||||
|
19
|
19
38500-65D50-000 HORN ASSY,LOW PITCHED |
38500-65D50-000 |
US $73.97 |
||
|
20
|
20
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
20
|
20
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
20
|
20
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
21
|
21
09160-08501-000 WASHER(8.5X24X2.3)Washer |
09160-08501-000 |
from US $1.60 |
||
|
22
|
22
38570-65D00-000 STOPPER,HORN |
38570-65D00-000 |
US $1.62 |
||
|
23
|
23
38860-70E20-000 RELAY ASSY,HORN |
38860-70E20-000 |
US $29.60 |
||
|
24
|
24
39400-86821-000 LIGHTER ASSY,CIGARETTE |
39400-86821-000 |
US $27.20 |
||
|
25
|
25
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
26
|
26
39471-60A00-000 RIM,CIGARETTE |
39471-60A00-000 |
US $4.23 |
||
|
27
|
27
39472-82000-000 WASHER,CIGARETTE LIGHTER |
39472-82000-000 |
US $1.25 |
||
|
28
|
28
37950-75F00-000 SWITCH ASSY,MIRROR |
37950-75F00-000 |
US $60.05 |
||
|
29
|
29
37865-65D00-000
SWITCH ASSY,AT MODE
AT |
37865-65D00-000 |
— | ||
|
30
|
30
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM |
36550-60E00-000 |
US $21.90 |
||
|
31
|
31
09471-12091-000 BULB(12V1.4W G30) |
09471-12091-000 |
US $28 |
||
|
32
|
32
37285-75F00-000 CAP,OPTION SW HOLE |
37285-75F00-000 |
US $2.28 |
||
|
33
|
33
37285-75F10-000 CAP,OPTION SW HOLE |
37285-75F10-000 |
US $2.80 |
||
|
34
|
34
37285-65D00-000 CAP,OPTION SW HOLE |
37285-65D00-000 |
US $2.24 |
||
|
35
|
35
35180-64G00-000 SWITCH ASSY,HEADLAMP LEVELING |
35180-64G00-000 |
US $125.86 |
||
|
36
|
36
39410-60A01-000 SOCKET ASSY |
39410-60A01-000 |
US $33.60 |
||
|
37
|
37
33945-70E11-000 SENSOR ASSY,G |
33945-70E11-000 |
US $401.28 |
||
|
38
|
38
38910-52D00-000
CONTROLLER ASSY,A/B
,,4 |
38910-52D00-000 |
— | ||
|
38
|
38
38910-52D30-000 CONTROLLER ASSY,A/BGeneral |
38910-52D30-000 |
US $577.28 |
||
|
39
|
39
09115-06003-000 BOLT(6X16) |
09115-06003-000 |
US $10.70 |
||
|
40
|
40
38930-52D00-000
SENSOR ASSY,FORWARD,R
|
38930-52D00-000 |
— | ||
|
41
|
41
38930-52D10-000
SENSOR ASSY,FORWARD,L
|
38930-52D10-000 |
— | ||
|
42
|
42
09116-06174-000
BOLT(6X16)
|
09116-06174-000 |
— | ||
|
43
|
43
33946-65D01-000
BRACKET,CONT
,,4 |
33946-65D01-000 |
— | ||
|
44
|
44
08316-10063-000
Nut
,,4 |
08316-10063-000 |
— | ||
| replacement | |||||
|
44
|
44
08316-1006B-000 NUT,,4 |
08316-1006B-000 |
from US $0.76 |
||
|
45
|
45
38650-65D00-000 RELAY ASSY,RR WIPER |
38650-65D00-000 |
US $84.64 |
||
|
46
|
46
03141-05083-000
Screw
|
03141-05083-000 |
— | ||
| replacement | |||||
|
46
|
46
03141-0508A-000 SCREW |
03141-0508A-000 |
US $7.70 |
||
|
47
|
47
37880-65D00-6GS
SWITCH ASSY,SUN ROOF
W/SUN ROOF |
37880-65D00-6GS |
— | ||
|
48
|
48
37882-65D00-6GS
COVER,SUN ROOF SW
W/SUN ROOF |
37882-65D00-6GS |
— | ||
|
49
|
49
03142-05123-000
Screw
W/SUN ROOF |
03142-05123-000 |
— | ||
| replacement | |||||
|
49
|
49
03141-0512A-000 SCREWScrew, belt cooling duct W/SUN ROOF |
03141-0512A-000 |
from US $0.76 |
||
|
50
|
50
33970-65D01-000 CONTROLLER ASSY,IMMOBILIZER,,4 |
33970-65D01-000 |
US $478.72 |
||
|
51
|
51
02162-06103-000
Bolt
,,4 |
02162-06103-000 |
— | ||
| replacement | |||||
|
51
|
51
02162-0610A-000 SCREW,,4 |
02162-0610A-000 |
from US $0.64 |
||
|
52
|
52
38860-70E20-000 RELAY ASSY,HORN |
38860-70E20-000 |
US $29.60 |
||
|
53
|
53
37180-65D70-000
Switch assy, transmitter &,keyless
W/KEY LESS ENTRY |
37180-65D70-000 |
— | ||
| replacement | |||||
|
53
|
53
37180-65DV0-000
TRANSMITTER
W/KEY LESS ENTRY |
37180-65DV0-000 |
— | ||
|
54
|
54
37191-65D33-000
CONTROLLER,KEY LESS/DR LOCK
W/KEY LESS ENTRY |
37191-65D33-000 |
— | ||
|
55
|
55
03142-05163-000
Screw
W/KEY LESS ENTRY |
03142-05163-000 |
— | ||
| replacement | |||||
|
55
|
55
03141-0516A-000 SCREWW/KEY LESS ENTRY |
03141-0516A-000 |
from US $0.80 |
||
|
56
|
56
95572-63C00-000 RELAY ASSYW/KEY LESS ENTRY |
95572-63C00-000 |
US $42.69 |
||
|
57
|
57
03142-05163-000
Screw
W/KEY LESS ENTRY |
03142-05163-000 |
— | ||
| replacement | |||||
|
57
|
57
03141-0516A-000 SCREWW/KEY LESS ENTRY |
03141-0516A-000 |
from US $0.80 |
||
