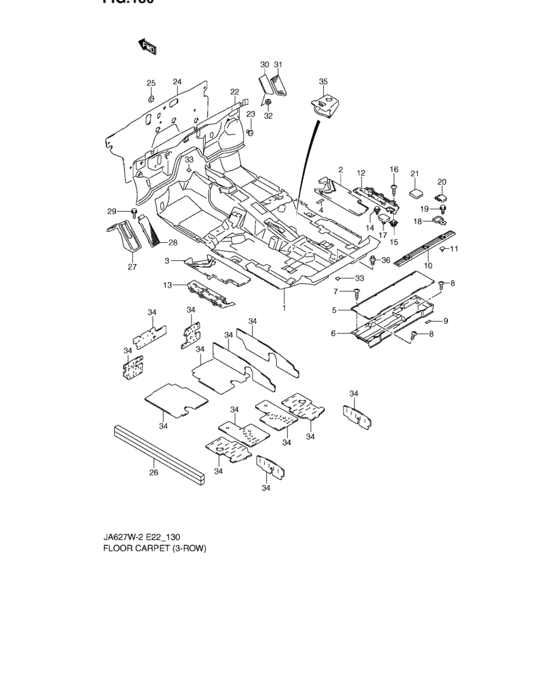

Floor carpet (3-ROW) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75160-52D22-P8A
CARPET,FR FL
LHD |
75160-52D22-P8A |
— | ||
|
1
|
1
75160-52D40-P8A
Carpet comp,front floor
LHD,JSAHTX92V00150001~,JS3TX92V 24150001~,JSAHTX92V24150001~,JSAHTX92V20150001~ |
75160-52D40-P8A |
— | ||
|
1
|
1
75160-52D12-P8A
CARPET,FR FL
RHD |
75160-52D12-P8A |
— | ||
|
1
|
1
75160-52D30-P8A
CARPET,FR FL
RHD,JSAHTX92V00150001~ |
75160-52D30-P8A |
— | ||
|
2
|
2
75172-52D00-000
PAD,FRONT FLOOR,R
|
75172-52D00-000 |
— | ||
|
2
|
2
75172-52D01-000
PAD,FRONT FLOOR,R
JSAHTX92V00101065~,JS3TX92V 24100076~,JSAHTX92V24100051~,JSAHTX92V20100001~ |
75172-52D01-000 |
— | ||
|
3
|
3
75173-52D00-000
PAD,FRONT FLOOR,L
|
75173-52D00-000 |
— | ||
|
3
|
3
75173-52D01-000
PAD,FRONT FLOOR,L
JSAHTX92V00101065~,JS3TX92V 24100076~,JSAHTX92V24100051~,JSAHTX92V20100001~ |
75173-52D01-000 |
— | ||
|
4
|
4
36930-82010-000 COVER,HARNESSCover, roof wire ~JSAHTX92V00101064,~JS3TX92V 2410007,~JSAHTX92V24100050 |
36930-82010-000 |
from US $1.73 |
||
|
5
|
5
75540-52D01-P8A
リッド,リヤラゲッジボックス(グレー)
|
75540-52D01-P8A |
— | ||
| replacement | |||||
|
5
|
5
75540-52D01-R1K
LID,RR LUGGAGE BOX
|
75540-52D01-R1K |
— | ||
|
5
|
5
75540-52D01-R1K
LID,RR LUGGAGE BOX
JSAHTX92V00150001~,JS3TX92V 24150001~,JSAHTX92V24150001~,JSAHTX92V20150001~ |
75540-52D01-R1K |
— | ||
|
6
|
6
75550-52D01-T01
BX,LUGGAGE BOX
|
75550-52D01-T01 |
— | ||
|
7
|
7
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
8
|
8
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
9
|
9
75181-52D00-000
SEAL,RR FLOOR RR
|
75181-52D00-000 |
— | ||
|
10
|
10
75191-65D10-T01
GARNISH,LUGGAGE MAT END
|
75191-65D10-T01 |
— | ||
|
11
|
11
77259-71B00-000 CLIP |
77259-71B00-000 |
US $2.08 |
||
|
12
|
12
75560-52D00-000
PLATE,FLOOR STEP,R
N/MOUNTING HOLE PLUG |
75560-52D00-000 |
— | ||
| replacement | |||||
|
12
|
12
75560-52DV0-000
PLATE,FLOOR STEP,R
N/MOUNTING HOLE PLUG |
75560-52DV0-000 |
— | ||
|
12
|
12
75560-52D10-000
プレート,フロアステップ,ライト
W/MOUNTING HOLE PLUG,JSAHTX92V00101065~,JS3TX92V 24100077~,JSAHTX92V24100051~,JSAHTX92V20100001~ |
75560-52D10-000 |
— | ||
| replacement | |||||
|
12
|
12
75560-52D11-000 PLATE,FLOOR STEP,RW/MOUNTING HOLE PLUG,JSAHTX92V00101065~,JS3TX92V 24100077~,JSAHTX92V24100051~,JSAHTX92V20100001~ |
75560-52D11-000 |
US $58.51 |
||
|
13
|
13
75570-52D00-000
プレート,フロアステップ,レフト
|
75570-52D00-000 |
— | ||
| replacement | |||||
|
13
|
13
75570-52D01-000
PLATE,FLOOR STEP,L
|
75570-52D01-000 |
— | ||
|
14
|
14
09409-08334-000 CLIP |
09409-08334-000 |
from US $1.10 |
||
|
15
|
15
09148-05018-000 NUT |
09148-05018-000 |
from US $0.63 |
||
|
16
|
16
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
17
|
17
75563-52D00-000
PLUG,SEAT MTG HOLE
JSAHTX92V00101065~,JS3TX92V 24100077~,JSAHTX92V24100051~,JSAHTX92V20100001~ |
75563-52D00-000 |
— | ||
|
18
|
18
75480-65D30-000 HOOK,TETHER ANCHORAGEAustralia |
75480-65D30-000 |
US $12.84 |
||
|
19
|
19
09103-08242-000 BOLT(8X20)Australia |
09103-08242-000 |
US $17.70 |
||
|
20
|
20
75192-65D10-T01 CAP,MAT END GARNISHAustralia |
75192-65D10-T01 |
US $4.97 |
||
|
21
|
21
75192-65D20-T01 CAP,MAT END GARNISH,,Chile,General,1,2,Brazil,,Taiwan,Saudi Arabia,China,Israel |
75192-65D20-T01 |
US $4.97 |
||
|
22
|
22
75210-65D02-000
SILENCER,DASH PANEL
LHD |
75210-65D02-000 |
— | ||
|
22
|
22
75210-65D12-000
SILENCER,DASH PANEL
RHD |
75210-65D12-000 |
— | ||
|
23
|
23
09148-05042-000 CLIP |
09148-05042-000 |
US $1.12 |
||
|
24
|
24
75280-65D01-000
Silencer, dash outer
LHD |
75280-65D01-000 |
— | ||
| replacement | |||||
|
24
|
24
75280-65D20-000
SILENCER,DASH OUTER
LHD |
75280-65D20-000 |
— | ||
|
24
|
24
75280-65D20-000
SILENCER,DASH OUTER
LHD,JSAHTX92V00150001~,JS3TX92V 24150001~,JSAHTX92V24150001~,JSAHTX92V20150001~ |
75280-65D20-000 |
— | ||
|
24
|
24
75280-65D11-000
SILENCER,DASH OUTER
RHD |
75280-65D11-000 |
— | ||
|
25
|
25
09148-05037-000 CLIP |
09148-05037-000 |
from US $1.24 |
||
|
26
|
26
75221-65D00-000 SILENCER,FRAME UPPER,,General,1,2,4,Israel |
75221-65D00-000 |
US $113.71 |
||
|
27
|
27
75551-65D00-5PK PEDAL,FOOTRESTLHD |
75551-65D00-5PK |
US $29.26 |
||
|
28
|
28
75552-65D00-5PK
CAP,FOOT REST
LHD |
75552-65D00-5PK |
— | ||
|
29
|
29
01550-06123-000
Bolt
LHD |
01550-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0612B-000 BOLTBolt, clamp LHD |
01550-0612B-000 |
from US $0.76 |
||
|
29
|
29
01550-0612A-000 BOLTLHD |
01550-0612A-000 |
from US $0.76 |
||
|
30
|
30
75810-56B00-000
PEDAL,FOOTREST
RHD |
75810-56B00-000 |
— | ||
|
31
|
31
75821-56B00-000 PAD,FOOTREST PEDALRHD |
75821-56B00-000 |
US $11 |
||
|
32
|
32
08316-20083-000
Nut
RHD |
08316-20083-000 |
— | ||
| replacement | |||||
|
32
|
32
08316-2008A-000 NUTRHD |
08316-2008A-000 |
from US $0.80 |
||
|
33
|
33
75171-65D00-000 CLIP,FL CARPET |
75171-65D00-000 |
US $3.42 |
||
|
34
|
34
99611-60A01-000 SHEET,SILENCER 800X1000X3CUT AS REQUIRED |
99611-60A01-000 |
US $62.40 |
||
|
35
|
35
75541-52D00-T01
COVER,2ND SEAT BRACKET
|
75541-52D00-T01 |
— | ||
|
36
|
36
09119-10071-000 BOLT |
09119-10071-000 |
US $21 |
||
