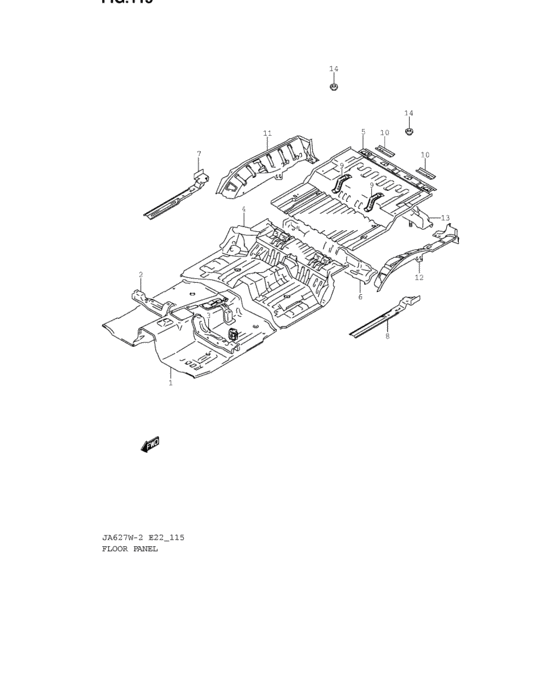

Floor panel (FLOOR PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61400-52D02-000
Panel, fr floor
LHD |
61400-52D02-000 |
— | ||
| replacement | |||||
|
1
|
1
61411-65DV0-000
PANEL,MAIN FLOOR
LHD |
61411-65DV0-000 |
— | ||
|
1
|
1
61400-52D12-000
Panel, fr floor
RHD |
61400-52D12-000 |
— | ||
| replacement | |||||
|
1
|
1
61411-65DV0-000
PANEL,MAIN FLOOR
RHD |
61411-65DV0-000 |
— | ||
|
2
|
2
61441-65D10-000
メンバ,フロントシート,ライト
|
61441-65D10-000 |
— | ||
| replacement | |||||
|
2
|
2
61441-65D20-000
MEMBER,FR SEAT,R
|
61441-65D20-000 |
— | ||
|
3
|
3
61541-65D10-000
メンバ,フロントシート,レフト
|
61541-65D10-000 |
— | ||
| replacement | |||||
|
3
|
3
61541-65D20-000
MEMBER,FR SEAT,L
|
61541-65D20-000 |
— | ||
|
4
|
4
61700-52D31-000
パネルアッシ,センタフロア
2-ROW,->61700-52D32,USED WITH 65971-77(2PCS) |
61700-52D31-000 |
— | ||
| replacements | |||||
|
4
|
4
09103-08242-000 BOLT(8X20)2-ROW,->61700-52D32,USED WITH 65971-77(2PCS) |
09103-08242-000 |
US $17.70 |
||
|
4
|
4
65971-77E10-000 CAP,OD:302-ROW,->61700-52D32,USED WITH 65971-77(2PCS) |
65971-77E10-000 |
US $2.24 |
||
|
4
|
4
61700-52D32-000
パネルアッシ,センタフロア
2-ROW,JSAHTX92V00150476~,JS3TX92V 24120648~,JSAHTX92V24100071~,JSAHTX92V20100003~ |
61700-52D32-000 |
— | ||
| replacement | |||||
|
4
|
4
09103-08242-000 BOLT(8X20)2-ROW,JSAHTX92V00150476~,JS3TX92V 24120648~,JSAHTX92V24100071~,JSAHTX92V20100003~ |
09103-08242-000 |
US $17.70 |
||
|
4
|
4
61700-52D21-000
パネルアッシ,センタフロア
3-ROW,->61700-52D22,USED WITH 65971-77(2PCS) |
61700-52D21-000 |
— | ||
| replacements | |||||
|
4
|
4
61700-52DV0-000
Panel assy,center floor
3-ROW,->61700-52D22,USED WITH 65971-77(2PCS) |
61700-52DV0-000 |
— | ||
|
4
|
4
65971-77E10-000 CAP,OD:303-ROW,->61700-52D22,USED WITH 65971-77(2PCS) |
65971-77E10-000 |
US $2.24 |
||
|
4
|
4
61700-52D22-000
パネルアッシ,センタフロア
3-ROW,JSAHTX92V00150476~,JS3TX92V 24120648~,JSAHTX92V24100071~,JSAHTX92V20100003~ |
61700-52D22-000 |
— | ||
| replacement | |||||
|
4
|
4
61700-52DV0-000
Panel assy,center floor
3-ROW,JSAHTX92V00150476~,JS3TX92V 24120648~,JSAHTX92V24100071~,JSAHTX92V20100003~ |
61700-52DV0-000 |
— | ||
|
5
|
5
62111-66D11-000
パネル,リヤフロア
|
62111-66D11-000 |
— | ||
| replacements | |||||
|
5
|
5
62111-66D30-000 PANEL,REAR FLOOR |
62111-66D30-000 |
US $298.08 |
||
|
5
|
5
09409-09305-000 CLIP |
09409-09305-000 |
US $18.40 |
||
|
6
|
6
62120-52D00-000
メンバ,リヤフロア
|
62120-52D00-000 |
— | ||
| replacement | |||||
|
6
|
6
62120-52D10-000
Member,rear floor
|
62120-52D10-000 |
— | ||
|
7
|
7
62131-52D00-000
Reinf,rear seat belt side,r
|
62131-52D00-000 |
— | ||
|
8
|
8
62132-52D00-000
REINF,RR SEAT BELT SIDE,L
|
62132-52D00-000 |
— | ||
|
9
|
9
62161-52D00-000 BRACKET,3RD SEAT3-ROW |
62161-52D00-000 |
US $12.84 |
||
|
10
|
10
62171-52D00-000
BRACKET,LUGGAGE BOX
3-ROW |
62171-52D00-000 |
— | ||
|
11
|
11
62210-52D01-000
Panel,rr wheel hsg inr,r
|
62210-52D01-000 |
— | ||
|
12
|
12
62310-52D01-000
パネル,リヤホイールハウジングインナ,レフト
|
62310-52D01-000 |
— | ||
| replacements | |||||
|
12
|
12
62310-52D02-000
PANEL,RR WHEEL HSG INR,L
|
62310-52D02-000 |
— | ||
|
12
|
12
95831-54J00-000 GROMMET,A/C HOLE |
95831-54J00-000 |
US $4.71 |
||
|
13
|
13
62510-65D11-000
MEMBER,RR FL TAIL
|
62510-65D11-000 |
— | ||
|
14
|
14
65971-77E00-000
Cap, rear floor drain
|
65971-77E00-000 |
— | ||
| replacement | |||||
|
14
|
14
65971-77E10-000 CAP,OD:30 |
65971-77E10-000 |
US $2.24 |
||
