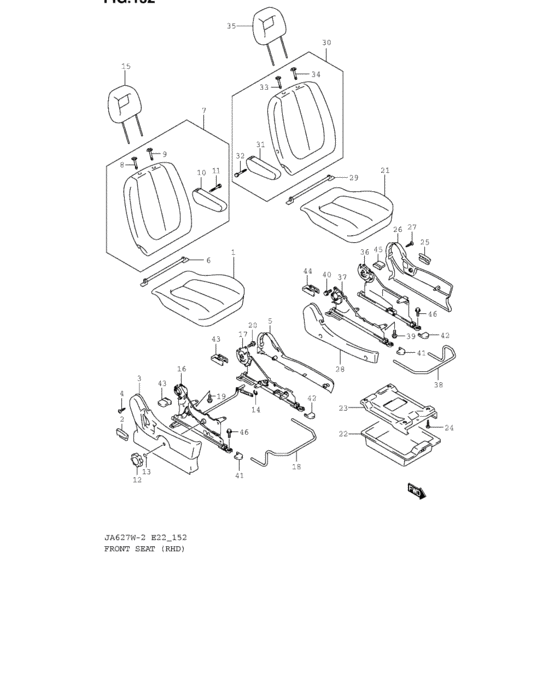

Front seat (RHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-65DF0-GL4
Cushion assy, front rh
|
85101-65DF0-GL4 |
— | ||
|
2
|
2
85211-65DA0-T01 KNOB,RECL,R |
85211-65DA0-T01 |
US $4.67 |
||
|
3
|
3
85221-65DF0-T01
Cover, reclining outside rh
|
85221-65DF0-T01 |
— | ||
| replacement | |||||
|
3
|
3
85220-65DF0-T01
Cover,recl outside,r(gray)
|
85220-65DF0-T01 |
— | ||
|
4
|
4
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
5
|
5
85241-65DA0-T01 COVER,RECL,INSIDE,R |
85241-65DA0-T01 |
US $30.73 |
||
|
6
|
6
85250-65DA0-000 ROD,FR SEAT ADJUSTER |
85250-65DA0-000 |
US $15.53 |
||
|
7
|
7
85301-65DQ0-GL4
Back assy, front rh
|
85301-65DQ0-GL4 |
— | ||
|
8
|
8
85341-81A00-T01 GUIDE,HEADRESTRAINT |
85341-81A00-T01 |
US $6.04 |
||
|
9
|
9
85840-81A00-T01
Guide, headrestraint (gray)
|
85840-81A00-T01 |
— | ||
| replacement | |||||
|
9
|
9
85840-81A10-T01 GUIDE,HEADRESTRAINT |
85840-81A10-T01 |
US $13.73 |
||
|
10
|
10
85501-65DQ0-R0T
Armrest assy,fr,r
|
85501-65DQ0-R0T |
— | ||
|
11
|
11
85541-65DQ0-000 SHAFT,FR ARMREST |
85541-65DQ0-000 |
US $8.24 |
||
|
12
|
12
86170-80G00-T01
KNOB,SUPPORT
|
86170-80G00-T01 |
— | ||
|
13
|
13
78463-78000-000 SNAP |
78463-78000-000 |
US $1.60 |
||
|
14
|
14
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
14
|
14
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
14
|
14
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
15
|
15
86401-81A60-P6B
ヘッドレストレイントアッシ(グレー)
|
86401-81A60-P6B |
— | ||
| replacement | |||||
|
15
|
15
86401-81A61-P6B
HEADRESTRAINT ASSY
|
86401-81A61-P6B |
— | ||
|
16
|
16
86603-65DR0-000
ADJUSTER ASSY,FR OUTSIDE,R
|
86603-65DR0-000 |
— | ||
|
17
|
17
86601-65D10-000
Adjuster assy,fr inside,r
|
86601-65D10-000 |
— | ||
|
18
|
18
86691-65DA0-000 HANDLE,FR SEAT ADJ |
86691-65DA0-000 |
US $16.56 |
||
|
19
|
19
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
19
|
19
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
20
|
20
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
21
|
21
85101-65DA0-GL4
CUSHION ASSY,FR
|
85101-65DA0-GL4 |
— | ||
|
22
|
22
85150-74F11-000
Tray assy, front seat under
|
85150-74F11-000 |
— | ||
| replacement | |||||
|
22
|
22
85150-80G10-000 TRAY ASSY,FR UNDER |
85150-80G10-000 |
US $79.20 |
||
|
23
|
23
86521-65DA0-000 BRACKET,UNDER TRAY |
86521-65DA0-000 |
US $91.20 |
||
|
24
|
24
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
25
|
25
85711-65DA0-T01 KNOB,RECL,L |
85711-65DA0-T01 |
US $9.58 |
||
|
26
|
26
85721-65DA0-T01
カバー,リクライニングアウトサイド,レフト(グレー)
|
85721-65DA0-T01 |
— | ||
| replacement | |||||
|
26
|
26
85720-65DA0-T01 COVER,RCLNG OUTSIDE,L |
85720-65DA0-T01 |
US $46.37 |
||
|
27
|
27
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
27
|
27
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
28
|
28
85741-65DA0-T01 COVER,RECL,INSIDE,L |
85741-65DA0-T01 |
US $30.73 |
||
|
29
|
29
85250-65DA0-000 ROD,FR SEAT ADJUSTER |
85250-65DA0-000 |
US $15.53 |
||
|
30
|
30
85301-65DE0-DV3
Back assy,fr
|
85301-65DE0-DV3 |
— | ||
|
31
|
31
85502-65DQ0-R0T
Armrest assy,fr,l
|
85502-65DQ0-R0T |
— | ||
|
32
|
32
85541-65DQ0-000 SHAFT,FR ARMREST |
85541-65DQ0-000 |
US $8.24 |
||
|
33
|
33
85341-81A00-T01 GUIDE,HEADRESTRAINT |
85341-81A00-T01 |
US $6.04 |
||
|
34
|
34
85840-81A00-T01
Guide, headrestraint (gray)
|
85840-81A00-T01 |
— | ||
| replacement | |||||
|
34
|
34
85840-81A10-T01 GUIDE,HEADRESTRAINT |
85840-81A10-T01 |
US $13.73 |
||
|
35
|
35
86401-81A60-P6B
ヘッドレストレイントアッシ(グレー)
|
86401-81A60-P6B |
— | ||
| replacement | |||||
|
35
|
35
86401-81A61-P6B
HEADRESTRAINT ASSY
|
86401-81A61-P6B |
— | ||
|
36
|
36
86604-65DQ0-000
ADJUSTER ASSY,FR OUTSIDE,L
|
86604-65DQ0-000 |
— | ||
|
37
|
37
86602-65DA0-000 ADJUSTER ASSY,FR INSIDE,L |
86602-65DA0-000 |
US $217.12 |
||
|
38
|
38
86891-65DA0-000 HANDLE,FR SEAT ADJUSTER |
86891-65DA0-000 |
US $16.56 |
||
|
39
|
39
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
39
|
39
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
39
|
39
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
40
|
40
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
40
|
40
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
41
|
41
85491-65DA0-T01 COVER,ADJUSTER,FR,R |
85491-65DA0-T01 |
US $9.12 |
||
|
42
|
42
85492-65DA0-T01 COVER,ADJUSTER,FR,L |
85492-65DA0-T01 |
US $4.16 |
||
|
43
|
43
85496-65DA0-T01 COVER,ADJUSTER,OUTSIDE,R |
85496-65DA0-T01 |
US $9.44 |
||
|
44
|
44
85495-65DA0-T01 COVER,ADJUSTER BRACKET,INSIDE |
85495-65DA0-T01 |
US $4.64 |
||
|
45
|
45
85996-65DA0-T01 COVER,ADJUSTER,OUTSIDE,L |
85996-65DA0-T01 |
US $4.64 |
||
|
46
|
46
01551-10253-000
Bolt
|
01551-10253-000 |
— | ||
| replacement | |||||
|
46
|
46
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
