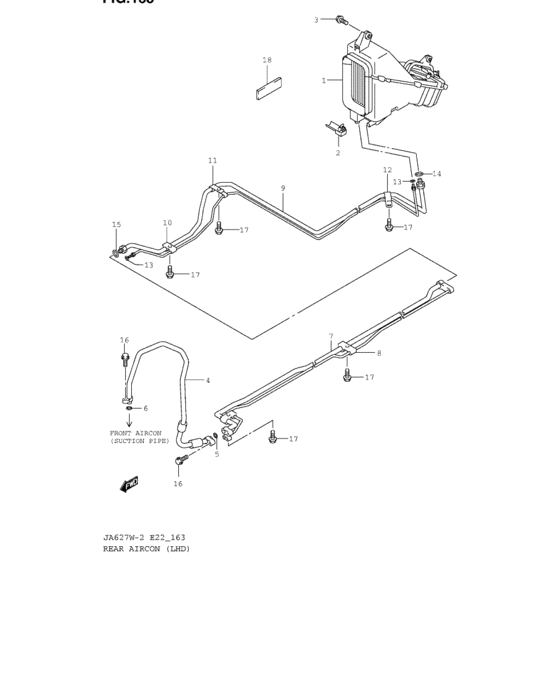

Rear air con (W/DUAL AIR CON:LHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95400-66D00-000
COOLING ASSY,RR
|
95400-66D00-000 |
— | ||
|
2
|
2
95481-65D11-000 PIPE,DRAIN |
95481-65D11-000 |
US $8.68 |
||
|
3
|
3
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
4
|
4
95710-66D32-000 HOSE,SUCTION RR |
95710-66D32-000 |
US $122.18 |
||
|
5
|
5
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
6
|
6
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
7
|
7
95732-66D31-000 PIPE,LIQUID NO.2 |
95732-66D31-000 |
US $183.26 |
||
|
8
|
8
95771-66D01-000
CLAMP,PIPE
|
95771-66D01-000 |
— | ||
|
9
|
9
95733-66D31-000 PIPE,LIQUID NO.3 |
95733-66D31-000 |
US $226.32 |
||
|
10
|
10
95771-66D01-000
CLAMP,PIPE
|
95771-66D01-000 |
— | ||
|
11
|
11
95772-66D01-000
CLAMP,PIPE
|
95772-66D01-000 |
— | ||
|
12
|
12
95773-66D01-000
CLAMP,PIPE
|
95773-66D01-000 |
— | ||
|
13
|
13
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
14
|
14
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
15
|
15
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
16
|
16
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
17
|
17
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
17
|
17
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
18
|
18
36930-82010-000 COVER,HARNESSCover, roof wire N/DUAL AIR CON |
36930-82010-000 |
from US $1.73 |
||
