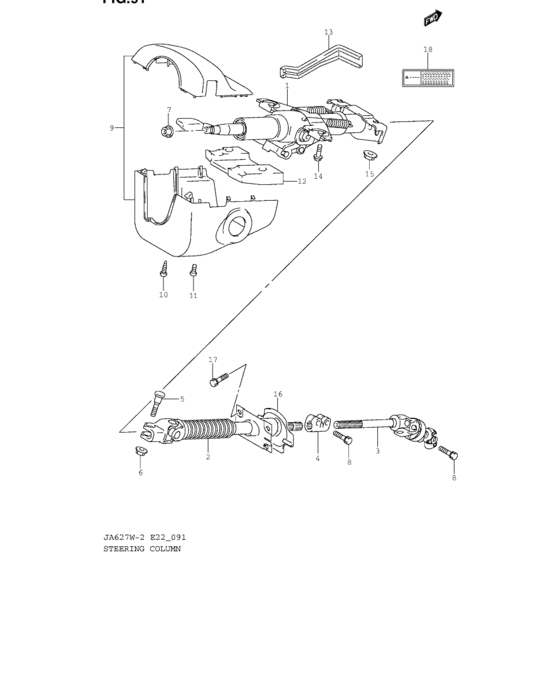

Steering column (STEERING COLUMN) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-52D00-T01
COLUMN ASSY,STRG
|
48200-52D00-T01 |
— | ||
|
2
|
2
48210-52D01-000
SHAFT ASSY,STEERING UPPER
|
48210-52D01-000 |
— | ||
|
3
|
3
48220-65D70-000 SHAFT ASSY,STEERING LOWERLHD |
48220-65D70-000 |
US $240.35 |
||
|
3
|
3
48220-65D20-000 SHAFT ASSY,STEERING LOWERRHD |
48220-65D20-000 |
from US $281.25 |
||
|
4
|
4
48230-65D00-000 JOINT,STEERING SHAFT |
48230-65D00-000 |
US $40.48 |
||
| replacement | |||||
|
4
|
4
48230-65D10-000 JOINT,STEERING SHAFT |
48230-65D10-000 |
US $40.48 |
||
|
5
|
5
09119-08087-000 BOLT(8X37) |
09119-08087-000 |
US $23.90 |
||
|
6
|
6
09159-08083-000 NUT |
09159-08083-000 |
from US $1.28 |
||
|
7
|
7
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
8
|
8
09117-08068-000 BOLT(8X30) |
09117-08068-000 |
US $17.30 |
||
|
9
|
9
48400-65D60-T01 COVER ASSY,STRG COLUMNLHD |
48400-65D60-T01 |
US $55.94 |
||
|
9
|
9
48400-65D00-T01
Cover assy,strg clmn(gray)
RHD |
48400-65D00-T01 |
— | ||
|
10
|
10
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03211-0512A-000 SCREW |
03211-0512A-000 |
US $0.80 |
||
|
11
|
11
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
US $0.96 |
||
|
12
|
12
48435-52D00-000
PAD,STEERING COLUMN COVER
|
48435-52D00-000 |
— | ||
|
13
|
13
48445-52D00-000
COVER,STRG TILT LEVER
|
48445-52D00-000 |
— | ||
|
14
|
14
09116-08120-000 BOLT(8X28) |
09116-08120-000 |
from US $6.38 |
||
|
15
|
15
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
15
|
15
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
16
|
16
48491-65D00-000 SEAL,STRG COLUMN LOWER |
48491-65D00-000 |
US $4.97 |
||
|
17
|
17
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
17
|
17
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
17
|
17
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
18
|
18
79172-50G72-000
ラベル,ステアリングコラムエアバッグ
|
79172-50G72-000 |
— | ||
| replacement | |||||
|
18
|
18
79172-80G02-000 LABEL,STRG JOINT |
79172-80G02-000 |
US $4.48 |
||
