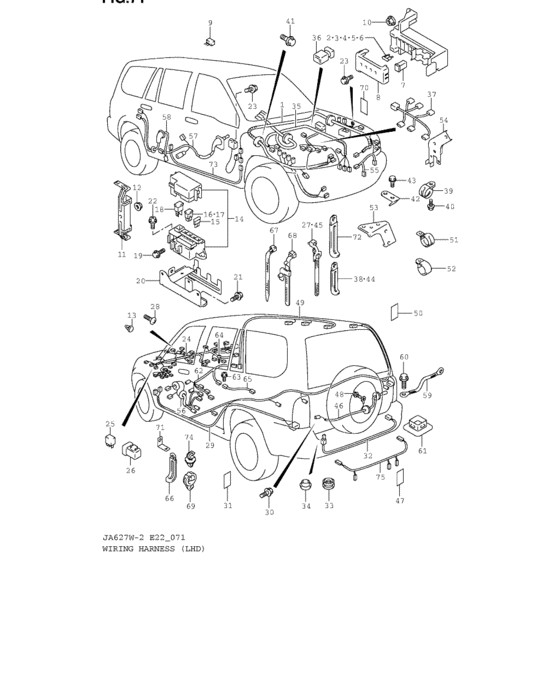

Wiring harness (LHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36601-52D10-000
Harness assy,wrg,main
AT:EC,Brazil:N/AUTO CRUISE |
36601-52D10-000 |
— | ||
|
1
|
1
36901-52D90-000
Harness assy, main
AT:Chile:W/STD ROOF,W/AUTO CRUISE |
36901-52D90-000 |
— | ||
|
1
|
1
36901-52DJ0-000
Harness assy, wiring main
AT:Chile:W/SUN ROOF,N/AUTO CRUISE |
36901-52DJ0-000 |
— | ||
|
1
|
1
36901-52DL0-000
Harness assy, wiring main
AT:Chile:W/SUN ROOF,W/AUTO CRUISE |
36901-52DL0-000 |
— | ||
|
1
|
1
36610-52D90-000
Harness assy, wiring main
AT:Germany,Israel:N/AUTO CRUISE |
36610-52D90-000 |
— | ||
|
1
|
1
36910-52D90-000
Harness assy, wiring main
AT:Germany,Israel:W/AUTO CRUISE |
36910-52D90-000 |
— | ||
|
1
|
1
36901-52D70-000
Harness assy, wiring main
AT:Taiwan |
36901-52D70-000 |
— | ||
|
1
|
1
36601-52D40-000
Harness assy, wiring main
AT:Saudi Arabia:STD ROOF |
36601-52D40-000 |
— | ||
|
1
|
1
36910-52DB0-000
Harness assy,wrg,main
AT:Saudi Arabia:SUN ROOF |
36910-52DB0-000 |
— | ||
|
1
|
1
36901-52DF1-000
Harness assy, wiring main
AT:China:N/AUTO CRUISE |
36901-52DF1-000 |
— | ||
|
1
|
1
36901-52DG1-000
Harness assy, wiring main
AT:China:W/AUTO CRUISE |
36901-52DG1-000 |
— | ||
|
2
|
2
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.06 |
||
|
3
|
3
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $3.25 |
||
|
4
|
4
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $2.28 |
||
|
5
|
5
09481-25501-000 FUSE(25A) |
09481-25501-000 |
from US $2.28 |
||
|
6
|
6
09481-30501-000 FUSE(30A) |
09481-30501-000 |
from US $1.08 |
||
|
7
|
7
09481-30401-000 FUSE(30A) |
09481-30401-000 |
from US $5.96 |
||
|
8
|
8
36717-66D00-000 COVER,FUSE BOX |
36717-66D00-000 |
US $8.13 |
||
|
9
|
9
33459-61B10-000 DIODE |
33459-61B10-000 |
US $15.57 |
||
|
10
|
10
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
36614-65D00-000 BRACKET,MAIN HARN CONNECTOR |
36614-65D00-000 |
US $4.20 |
||
|
12
|
12
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
14
|
14
36740-52D00-000
Box assy, main fuse
|
36740-52D00-000 |
— | ||
| replacement | |||||
|
14
|
14
36740-52D01-000
BOX ASSY,FUSE MAIN
|
36740-52D01-000 |
— | ||
|
15
|
15
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
16
|
16
09481-30203-000 FUSE(30A) |
09481-30203-000 |
US $13.92 |
||
|
17
|
17
09481-60202-000 FUSE(60A) |
09481-60202-000 |
from US $5.47 |
||
|
18
|
18
09481-00301-000 FUSE(100A) |
09481-00301-000 |
US $85 |
||
|
19
|
19
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
20
|
20
36737-65D00-000 BRACKET,MAIN FUSE |
36737-65D00-000 |
US $11.85 |
||
|
21
|
21
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
23
|
23
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
23
|
23
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
24
|
24
36620-52D30-000
Harness assy,wrg,instpnl
AT:EC |
36620-52D30-000 |
— | ||
|
24
|
24
36602-52D30-000
Harness assy, instrument panel
AT:Chile:W/STD ROOF,W/AUTO CRUISE |
36602-52D30-000 |
— | ||
|
24
|
24
36602-52D70-000
Harness assy, instrument panel
AT:Chile:W/SUN ROOF,N/AUTO CRUISE |
36602-52D70-000 |
— | ||
|
24
|
24
36602-52D80-000
Harness assy, instrument panel
AT:Chile:W/SUN ROOF,W/AUTO CRUISE |
36602-52D80-000 |
— | ||
|
24
|
24
36620-52DE0-000
Harness assy, instrument panel
AT:Taiwan |
36620-52DE0-000 |
— | ||
|
24
|
24
36602-52D50-000
Harness assy,i/p
AT:Saudi Arabia |
36602-52D50-000 |
— | ||
|
25
|
25
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
26
|
26
38610-52D00-000
リレーアッシ,ターンシグナル/4ウェイ
|
38610-52D00-000 |
— | ||
| replacement | |||||
|
26
|
26
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
US $56.80 |
||
|
27
|
27
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
28
|
28
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
28
|
28
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
29
|
29
36630-52DB0-000
Harness assy, wiring floor
Chile:N/AUTO CRUISE,Saudi Arabia |
36630-52DB0-000 |
— | ||
|
29
|
29
36630-52DL0-000
Harness assy, wiring floor
Chile:W/AUTO CRUISE |
36630-52DL0-000 |
— | ||
|
29
|
29
36630-52DA0-000
Harness assy, wiring floor
EC,Brazil:N/AUTO CRUISE |
36630-52DA0-000 |
— | ||
|
29
|
29
36630-52DN0-000
Harness assy, wiring floor
Brazil:N/AUTO CRUISE |
36630-52DN0-000 |
— | ||
|
29
|
29
36630-52D40-000
Harness assy, wiring floor
Germany,Israel:N/AUTO CRUISE,,N/SEAT HEATER |
36630-52D40-000 |
— | ||
|
29
|
29
36630-52D30-000
Harness assy, wiring floor
Germany,Israel:N/AUTO CRUISE,,W/SEAT HEATER |
36630-52D30-000 |
— | ||
|
29
|
29
36630-52DH0-000
Harness assy, wiring floor
Germany,Israel:W/AUTO CRUISE,,N/SEAT HEATER |
36630-52DH0-000 |
— | ||
|
29
|
29
36630-52DG0-000
Harness assy,wrg,floor
Germany,Israel:W/AUTO CRUISE,,W/SEAT HEATER |
36630-52DG0-000 |
— | ||
|
29
|
29
36630-52DD0-000
Harness assy, wiring floor
Taiwan |
36630-52DD0-000 |
— | ||
|
30
|
30
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
30
|
30
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
31
|
31
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
32
|
32
36840-52D00-000
WIRE,FUEL
|
36840-52D00-000 |
— | ||
|
33
|
33
09250-30010-000
Grommet
Chile,Taiwan,Saudi Arabia |
09250-30010-000 |
— | ||
| replacement | |||||
|
33
|
33
72999-67H00-000 CAP,OD:40Chile,Taiwan,Saudi Arabia |
72999-67H00-000 |
from US $4.32 |
||
|
34
|
34
09250-35003-000 CAP(OD:45)Cap, frame bridge |
09250-35003-000 |
from US $5.41 |
||
|
35
|
35
36650-52DB0-000
HARNESS ASSY,WRG ENG
AT:Chile,EC,Brazil,Taiwan,Saudi Arabia,China |
36650-52DB0-000 |
— | ||
|
35
|
35
36650-52D30-000
Harness assy, wiring engine
AT:Germany,Israel |
36650-52D30-000 |
— | ||
|
36
|
36
33553-52E00-000 FILTER,NOISE SUPPR |
33553-52E00-000 |
US $57.76 |
||
|
37
|
37
36670-52D00-000
ハーネスアッシ,ワイヤリング,インジェクション
|
36670-52D00-000 |
— | ||
| replacement | |||||
|
37
|
37
36670-52D01-000 HARNESS ASSY,INJ |
36670-52D01-000 |
US $159.71 |
||
|
38
|
38
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
38
|
38
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
39
|
39
36649-50F60-000 CLAMP,HARN |
36649-50F60-000 |
US $4.34 |
||
|
40
|
40
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
40
|
40
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
41
|
41
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
41
|
41
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
42
|
42
36995-77E21-000 BRACKET,ENG HARN |
36995-77E21-000 |
US $1.69 |
||
|
43
|
43
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
43
|
43
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
44
|
44
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
45
|
45
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
46
|
46
36845-65D00-000
ワイヤ,バックドア
W/GREEN,BRONZE GLASS |
36845-65D00-000 |
— | ||
| replacement | |||||
|
46
|
46
36845-65D01-000 WIRE,BACK DRW/GREEN,BRONZE GLASS |
36845-65D01-000 |
US $132.48 |
||
|
46
|
46
36845-65D10-000
Wire, back door
W/DARK GRAY GLASS |
36845-65D10-000 |
— | ||
| replacement | |||||
|
46
|
46
36845-65D11-000
WIRE,BACK DR
W/DARK GRAY GLASS |
36845-65D11-000 |
— | ||
|
47
|
47
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
48
|
48
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
49
|
49
36820-52D00-000
Wire, room lamp
W/STD ROOF |
36820-52D00-000 |
— | ||
| replacement | |||||
|
49
|
49
36820-52D10-000
WIRE,ROOM LAMP
W/STD ROOF |
36820-52D10-000 |
— | ||
|
49
|
49
36820-52D10-000
WIRE,ROOM LAMP
W/SUN ROOF |
36820-52D10-000 |
— | ||
|
50
|
50
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
51
|
51
36649-70E00-000
CLAMP,MAIN HARNESS
|
36649-70E00-000 |
— | ||
|
52
|
52
09403-23402-000 CLAMP |
09403-23402-000 |
US $23.90 |
||
|
53
|
53
36995-77E00-000 BRACKET,ENG HARN |
36995-77E00-000 |
US $5.74 |
||
|
54
|
54
36995-67D20-000
BRACKET,ENG HARN
|
36995-67D20-000 |
— | ||
|
55
|
55
36895-67D00-000 WIRE,OIL PRESS SW |
36895-67D00-000 |
US $23.18 |
||
|
56
|
56
36756-65D51-000
WIRE,FR DR DRVR
N/MIRROR HEATER |
36756-65D51-000 |
— | ||
|
56
|
56
36756-65D52-000
WIRE,FR DR DRVR
N/MIRROR HEATER,JSAHTX92V00102723~,JS3TX92V 24106262~,JSAHTX92V24100071~,JSAHTX92V20100001~ |
36756-65D52-000 |
— | ||
|
56
|
56
36756-65D61-000
Wire,fr door,dr
W/MIRROR HEATER |
36756-65D61-000 |
— | ||
|
56
|
56
36756-65D62-000
Wier, front door lh
W/MIRROR HEATER,JSAHTX92V00102723~,JS3TX92V 24106262~,JSAHTX92V24100071~,JSAHTX92V20100001~ |
36756-65D62-000 |
— | ||
|
57
|
57
36757-65D21-000
WIRE,FR DR ASST
N/MIRROR HEATER |
36757-65D21-000 |
— | ||
|
57
|
57
36757-65D01-000
WIRE,FR DR ASST
W/MIRROR HEATER |
36757-65D01-000 |
— | ||
|
58
|
58
36751-52D00-000
WIRE,RR DR
|
36751-52D00-000 |
— | ||
|
59
|
59
39312-77E10-000 WIRE,HORN GND |
39312-77E10-000 |
US $6.92 |
||
|
60
|
60
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
60
|
60
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
61
|
61
75411-60A00-000 CAP,TAIL MEMBER LOWER |
75411-60A00-000 |
US $2.56 |
||
|
62
|
62
36690-52D10-000
Harness assy, wiring air bag
Chile,Germany,Brazil,Saudi Arabia,China,Israel |
36690-52D10-000 |
— | ||
|
62
|
62
36690-52D40-000
Harness assy,wrg air bag
EC,Taiwan |
36690-52D40-000 |
— | ||
|
63
|
63
09115-06003-000 BOLT(6X16) |
09115-06003-000 |
US $10.70 |
||
|
64
|
64
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
64
|
64
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
65
|
65
36611-52D10-000
WIRE,CONSOLE
AT:Chile,EC,Brazil,Taiwan,Saudi Arabia,China |
36611-52D10-000 |
— | ||
|
65
|
65
36611-52D00-000
WIRE,CONSOLE
AT:Germany,Israel:W/SEAT HEATER |
36611-52D00-000 |
— | ||
|
66
|
66
09404-06431-000
CLAMP(L:65)
AT |
09404-06431-000 |
— | ||
| replacements | |||||
|
66
|
66
09404-06432-000
CLAMP(L:65)
AT |
09404-06432-000 |
— | ||
|
66
|
66
09404-06039-000 Clamp(L:65)AT |
09404-06039-000 |
from US $1.82 |
||
|
66
|
66
09404-06038-000 Clamp(L:65)AT |
09404-06038-000 |
from US $2.40 |
||
|
67
|
67
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
68
|
68
36990-52D00-000 CLAMP,MAIN HARN |
36990-52D00-000 |
US $2.87 |
||
|
69
|
69
09403-35301-000 CLAMP |
09403-35301-000 |
US $14 |
||
|
70
|
70
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
71
|
71
36737-80E00-000
BRACKET,HARN
|
36737-80E00-000 |
— | ||
|
73
|
73
36695-65D00-000
WIRE,PRE-TENSIONER
|
36695-65D00-000 |
— | ||
|
74
|
74
09403-07325-000 CLAMPClamp, stp sw cable |
09403-07325-000 |
from US $4.59 |
||
|
75
|
75
36640-65D10-000
Wire, rear lamp
EC,Brazil |
36640-65D10-000 |
— | ||
| replacement | |||||
|
75
|
75
36640-65D11-000
HARNESS ASSY,WRG RR LAMP
EC,Brazil |
36640-65D11-000 |
— | ||
|
75
|
75
36640-65D00-000
Wire, rear lamp
Germany,China,Israel |
36640-65D00-000 |
— | ||
| replacement | |||||
|
75
|
75
36640-65D01-000 HARNESS ASSY,WRG RR LAMPGermany,China,Israel |
36640-65D01-000 |
US $115.92 |
||
