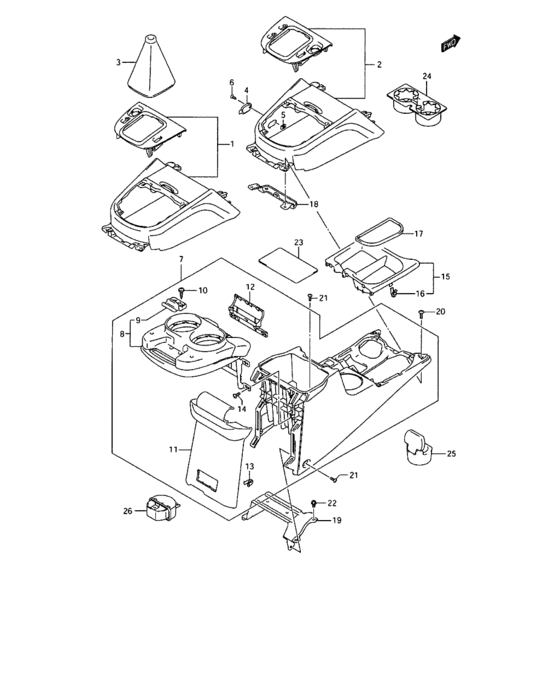

Console box (CONSOLE BOX) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75810-50J00-KU9
BOX,FLOOR CONSOLE FR
MT |
75810-50J00-KU9 |
— | ||
|
1
|
1
75810-50J00-KV1
BOX,FLOOR CONSOLE FR
MT |
75810-50J00-KV1 |
— | ||
|
3
|
3
75830-50J00-5PK BOOT,SHIFT LEVERMT |
75830-50J00-5PK |
US $66.61 |
||
|
7
|
7
75910-50J00-KV2
BOX,FLOOR CONSOLE RR
|
75910-50J00-KV2 |
— | ||
|
7
|
7
75910-50J00-KV3
BOX,FLOOR CONSOLE RR
(BEIGE/BLACK) |
75910-50J00-KV3 |
— | ||
|
8
|
8
75912-50J00-KV2 ARMREST,RR CONSOLE(GRAY/BLACK)(GRAY/BLACK) |
75912-50J00-KV2 |
US $331.20 |
||
|
8
|
8
75912-50J00-KV3
ARMREST,RR CONSOLE
(BEIGE/BLACK) |
75912-50J00-KV3 |
— | ||
|
9
|
9
75917-50J00-000 LOCK,ARMREST |
75917-50J00-000 |
US $10.56 |
||
|
10
|
10
75918-50J00-000 SCREW,ARMREST LOCK |
75918-50J00-000 |
US $2.36 |
||
|
11
|
11
75914-50J00-R8H
PANEL,FLOOR CONSOLE RR
(BEIGE) |
75914-50J00-R8H |
— | ||
|
11
|
11
75914-50J00-R8J PANEL,FLOOR CONSOLE RR(GRAY) |
75914-50J00-R8J |
US $37.17 |
||
|
12
|
12
75915-50J00-R8H
GARNISH,FL CSL RR
(BEIGE) |
75915-50J00-R8H |
— | ||
|
12
|
12
75915-50J00-R8J GARNISH,FL CSL RR(GRAY) |
75915-50J00-R8J |
US $18.33 |
||
|
13
|
13
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
14
|
14
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
15
|
15
75921-50J10-R8H
COVER,FL CONSOLE BOX
(BEIGE) |
75921-50J10-R8H |
— | ||
|
15
|
15
75921-50J10-R8J
COVER,FL CONSOLE BOX
(GRAY) |
75921-50J10-R8J |
— | ||
|
16
|
16
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
17
|
17
75922-50J00-R8H
SHEET,CONSOLE BOX REAR
(BEIGE) |
75922-50J00-R8H |
— | ||
|
17
|
17
75922-50J00-R8J
SHEET,CONSOLE BOX REAR
(GRAY) |
75922-50J00-R8J |
— | ||
|
18
|
18
75851-50J00-000 BRACKET,FLOOR CONSOLE BOX,FRMT |
75851-50J00-000 |
US $11.22 |
||
|
19
|
19
75951-50J00-000 BRACKET,FLOOR CONSOLE BOX,RR04 MODEL,05 MODEL,06 MODEL:Canada |
75951-50J00-000 |
US $18.18 |
||
|
19
|
19
75950-50J00-000
BRACKET,CONSOLE REAR
05 MODEL,06 MODEL:California |
75950-50J00-000 |
— | ||
|
20
|
20
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
21
|
21
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
23
|
23
75961-50J00-000 SHEET,CONSOLE BOX INNER |
75961-50J00-000 |
US $4.16 |
||
|
24
|
24
75820-50J00-5PK HOLDER,CUP |
75820-50J00-5PK |
US $56.67 |
||
|
25
|
25
89810-50J01-5PK
アッシュトレー,フロント(ブラック)
W/FRONT ASHTRAY |
89810-50J01-5PK |
— | ||
| replacement | |||||
|
25
|
25
89810-50J02-5PK ASHTRAY,FRW/FRONT ASHTRAY |
89810-50J02-5PK |
US $48.58 |
||
|
26
|
26
89850-50J00-R8H
ASHTRAY,RR
|
89850-50J00-R8H |
— | ||
|
26
|
26
89850-50J00-R8J ASHTRAY,RR |
89850-50J00-R8J |
US $19.50 |
||
