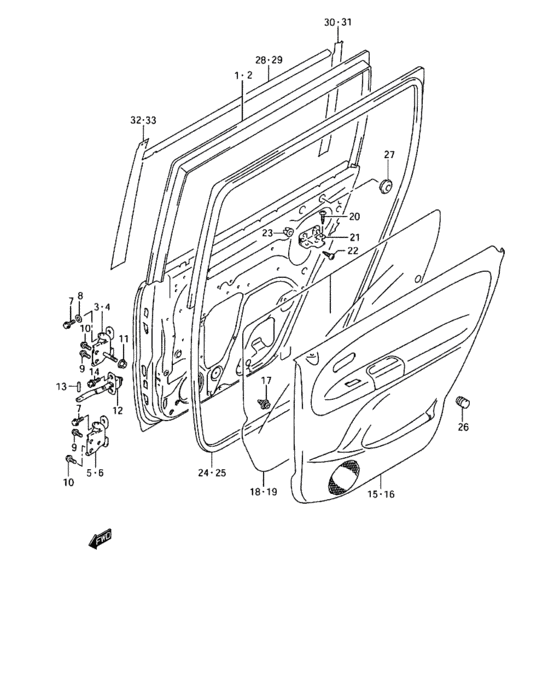

Rear door panel (REAR DOOR PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-52821-000 PANEL ASSY,REAR DOOR,R |
68003-52821-000 |
US $739.20 |
||
|
2
|
2
68004-52821-000 PANEL ASSY,REAR DOOR,L |
68004-52821-000 |
US $739.20 |
||
|
3
|
3
69410-65D00-000
ヒンジ,リヤドアアッパ,ライト
|
69410-65D00-000 |
— | ||
| replacement | |||||
|
3
|
3
69410-65D0V-000 HINGE,RR DOOR UPR,R |
69410-65D0V-000 |
US $44.16 |
||
|
3
|
3
69410-65D01-000 HINGE,RR DOOR UPR,RJS3TY92V 54106865~,JS3TX92V 54201624~ |
69410-65D01-000 |
US $36.80 |
||
|
4
|
4
69420-65D00-000
ヒンジ,リヤドアアッパ,レフト
|
69420-65D00-000 |
— | ||
| replacement | |||||
|
4
|
4
69420-65D0V-000 HINGE,RR DOOR UPR,L |
69420-65D0V-000 |
US $44.16 |
||
|
4
|
4
69420-65D01-000 HINGE,RR DOOR UPR,LJS3TY92V 54106865~,JS3TX92V 54201624~ |
69420-65D01-000 |
US $36.80 |
||
|
5
|
5
69430-65D00-000 HINGE,RR DOOR NO.1 |
69430-65D00-000 |
US $33.30 |
||
|
6
|
6
69440-65D00-000 HINGE,RR DOOR NO.2 |
69440-65D00-000 |
US $33.30 |
||
|
7
|
7
09103-08389-000 BOLT(8X24) |
09103-08389-000 |
US $17.30 |
||
|
8
|
8
69480-65D00-000
Washer
|
69480-65D00-000 |
— | ||
|
9
|
9
01551-08253-000
Bolt
|
01551-08253-000 |
— | ||
| replacement | |||||
|
9
|
9
01551-0825A-000 BOLT |
01551-0825A-000 |
from US $1.12 |
||
|
10
|
10
09113-08001-000 BOLT(8X20)JS3TY92V 54106865~,JS3TX92V 54201624~ |
09113-08001-000 |
US $14.40 |
||
|
11
|
11
08361-25083-000
Nut
|
08361-25083-000 |
— | ||
| replacement | |||||
|
11
|
11
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.80 |
||
|
12
|
12
81830-65D01-000 STOP,REAR DOOR OPEN |
81830-65D01-000 |
from US $32.02 |
||
|
13
|
13
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
14
|
14
02162-06203-000
Bolt
|
02162-06203-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.80 |
||
|
15
|
15
83730-52DC2-KL1
TRIM,REAR DOOR,R
|
83730-52DC2-KL1 |
— | ||
|
15
|
15
83730-52DC2-KL2
TRIM,REAR DOOR,R
|
83730-52DC2-KL2 |
— | ||
|
15
|
15
83730-52DC2-KS2
Trim,rear door,r
LIMITED, LEATHER, EX |
83730-52DC2-KS2 |
— | ||
|
15
|
15
83730-52DC2-KS5
TRIM,REAR DOOR,R
LIMITED, LEATHER, EX |
83730-52DC2-KS5 |
— | ||
|
16
|
16
83740-52DC2-KL1
TRIM,REAR DOOR,L
|
83740-52DC2-KL1 |
— | ||
|
16
|
16
83740-52DC2-KL2
TRIM,REAR DOOR,L
|
83740-52DC2-KL2 |
— | ||
|
16
|
16
83740-52DC2-KS2
TRIM,REAR DOOR,L
LIMITED, LEATHER, EX |
83740-52DC2-KS2 |
— | ||
|
16
|
16
83740-52DC2-KS5
TRIM,REAR DOOR,L
LIMITED, LEATHER, EX |
83740-52DC2-KS5 |
— | ||
|
17
|
17
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
18
|
18
83913-52D00-000
COVER,RR DR SEALING,R
|
83913-52D00-000 |
— | ||
|
19
|
19
83914-52D00-000
COVER,RR DR SEALING,L
|
83914-52D00-000 |
— | ||
|
20
|
20
03142-04163-000
Screw
|
03142-04163-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0416A-000 SCREW |
03141-0416A-000 |
from US $0.80 |
||
|
21
|
21
84482-65D00-000 BRACKET,DR INSIDE PULL HANDLE |
84482-65D00-000 |
US $4.16 |
||
|
22
|
22
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
22
|
22
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
23
|
23
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
24
|
24
84661-52D00-000 WEATHERSTRIP,RR DR OPNG,R |
84661-52D00-000 |
US $201.60 |
||
|
25
|
25
84671-52D00-000 WEATHERSTRIP,RR DR OPNG,L |
84671-52D00-000 |
US $201.60 |
||
|
26
|
26
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower |
82711-56B00-000 |
US $2.88 |
||
|
27
|
27
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
28
|
28
83915-52D00-0CB
Tape,rear door sash roof,r
(BLACK),BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83915-52D00-0CB |
— | ||
| replacement | |||||
|
28
|
28
83915-52D10-0CB TAPE,RR DR SASH ROOF R(BLACK),BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83915-52D10-0CB |
US $45.63 |
||
|
29
|
29
83916-52D00-0CB
Tape,rear door sash roof,l
(BLACK),BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83916-52D00-0CB |
— | ||
| replacement | |||||
|
29
|
29
83916-52D10-0CB TAPE,RR DR SASH ROOF L(BLACK),BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83916-52D10-0CB |
US $45.63 |
||
|
30
|
30
83917-52D00-0CB
Tape,rear door sash c-pillar,r
BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83917-52D00-0CB |
— | ||
| replacement | |||||
|
30
|
30
83917-52D10-0CB TAPE,RR DR SASH C-PLR,RBODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83917-52D10-0CB |
US $26.31 |
||
|
31
|
31
83918-52D00-0CB
Tape,rear door sash c-pillar,l
BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83918-52D00-0CB |
— | ||
| replacement | |||||
|
31
|
31
83918-52D10-0CB TAPE,RR DR SASH C-PLR,LBODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83918-52D10-0CB |
US $26.31 |
||
|
32
|
32
83927-65D00-0CB
Tape,rear door pillar,r(black)
(BLACK),BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83927-65D00-0CB |
— | ||
| replacement | |||||
|
32
|
32
83927-65D10-0CB TAPE,RR DOOR SASH PLR R(BLACK),BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83927-65D10-0CB |
US $30.18 |
||
|
33
|
33
83928-65D00-0CB
Tape,rear door pillar,l(black)
(BLACK),BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83928-65D00-0CB |
— | ||
| replacement | |||||
|
33
|
33
83928-65D10-0CB TAPE,RR DOOR SASH PLR L(BLACK),BODY COLOR:ZA4, ZA5,,ZY4, Z2J, Z2S, Z2T, Z2U,,Z5K, ZDK, ZY8, ZCW |
83928-65D10-0CB |
US $30.18 |
||
