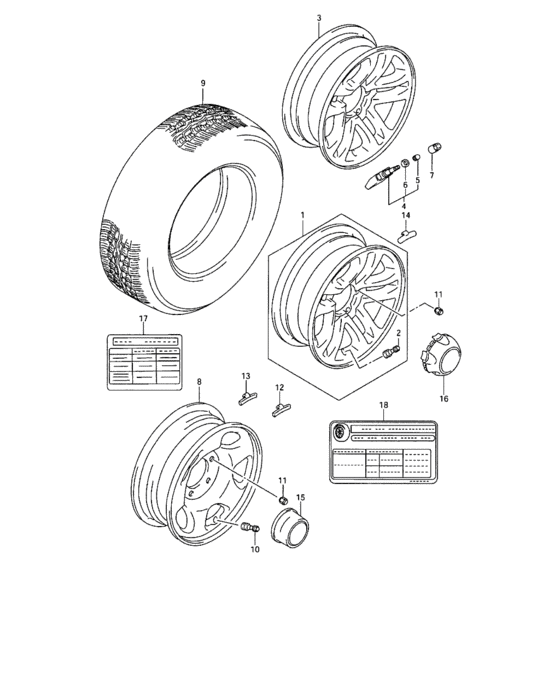

Road wheel and tire (ROAD WHEEL AND TIRE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43200-54891-27S WHEEL SET,AL(16X7JJ)04 MODEL,05 MODEL,06 MODEL:Canada,W/ALUMI WHEEL |
43200-54891-27S |
US $528 |
||
|
2
|
2
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim 04 MODEL,05 MODEL,06 MODEL:Canada,W/ALUMI WHEEL |
43130-78030-000 |
US $12.50 |
||
|
3
|
3
43210-54J20-27S WHEEL,AL(16X7JJ)05 MODEL,06 MODEL:California,W/ALUMI WHEEL |
43210-54J20-27S |
US $531.52 |
||
|
4
|
4
43130-54J20-000
Valve assy, tpms
05 MODEL,06 MODEL:California |
43130-54J20-000 |
— | ||
| replacement | |||||
|
4
|
4
43130-54J22-000 VALVE ASSY,TPMS05 MODEL,06 MODEL:California |
43130-54J22-000 |
US $157.87 |
||
|
5
|
5
43132-54J20-000 CAP,TPMS VALVE05 MODEL,06 MODEL:California |
43132-54J20-000 |
US $29.26 |
||
|
6
|
6
43134-54J20-000 SEAL,TPMS VALVE05 MODEL,06 MODEL:California |
43134-54J20-000 |
US $7.25 |
||
|
7
|
7
43141-54J20-000 NUT,VALVE05 MODEL,06 MODEL:California |
43141-54J20-000 |
US $13.98 |
||
|
8
|
8
43210-54J40-ZBP WHEEL(16X7J)SPARE WHEEL |
43210-54J40-ZBP |
US $185.84 |
||
|
9
|
9
43110-52D40-000
Tire(p235/60r16)
|
43110-52D40-000 |
— | ||
|
10
|
10
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim 04 MODEL,05 MODEL,06 MODEL:Canada |
43130-78030-000 |
US $12.50 |
||
|
11
|
11
09159-12057-000 NUT |
09159-12057-000 |
from US $2.89 |
||
|
12
|
12
43221-59J30-000 WEIGHT,WHEEL BALANCE 20G06 MODEL:California |
43221-59J30-000 |
US $3.35 |
||
|
13
|
13
43221-50J00-000 WEIGHT,WHEEL BALANCE 5GW/STEEL WHEEL |
43221-50J00-000 |
US $2.28 |
||
|
13
|
13
43222-50J00-000 WEIGHT,WHEEL BALANCE 10GW/STEEL WHEEL |
43222-50J00-000 |
US $2.83 |
||
|
13
|
13
43223-50J00-000 WEIGHT,WHEEL BALANCE 15GW/STEEL WHEEL |
43223-50J00-000 |
US $3.09 |
||
|
13
|
13
43224-50J00-000 WEIGHT,WHEEL BALANCE 20GW/STEEL WHEEL |
43224-50J00-000 |
US $3.35 |
||
|
13
|
13
43225-50J00-000 WEIGHT,WHEEL BALANCE 25GW/STEEL WHEEL |
43225-50J00-000 |
US $3.57 |
||
|
13
|
13
43226-50J00-000 WEIGHT,WHEEL BALANCE 30GW/STEEL WHEEL |
43226-50J00-000 |
US $3.79 |
||
|
13
|
13
43227-50J00-000 WEIGHT,WHEEL BALANCE 35GW/STEEL WHEEL |
43227-50J00-000 |
US $4.01 |
||
|
13
|
13
43228-50J00-000 WEIGHT,WHEEL BALANCE 40GW/STEEL WHEEL |
43228-50J00-000 |
US $4.23 |
||
|
13
|
13
43229-50J00-000 WEIGHT,WHEEL BALANCE 45GW/STEEL WHEEL |
43229-50J00-000 |
US $4.45 |
||
|
14
|
14
43221-50J10-000 WEIGHT,WHEEL BALANCE 5GW/ALUMI WHEEL |
43221-50J10-000 |
US $2.28 |
||
|
14
|
14
43222-50J10-000 WEIGHT,WHEEL BALANCE 10GW/ALUMI WHEEL |
43222-50J10-000 |
US $2.83 |
||
|
14
|
14
43223-50J10-000 WEIGHT,WHEEL BALANCE 15GW/ALUMI WHEEL |
43223-50J10-000 |
US $3.09 |
||
|
14
|
14
43224-50J10-000 WEIGHT,WHEEL BALANCE 20GW/ALUMI WHEEL |
43224-50J10-000 |
US $3.35 |
||
|
14
|
14
43225-50J10-000 WEIGHT,WHEEL BALANCE 25GW/ALUMI WHEEL |
43225-50J10-000 |
US $3.57 |
||
|
14
|
14
43226-50J10-000 WEIGHT,WHEEL BALANCE 30GW/ALUMI WHEEL |
43226-50J10-000 |
US $3.79 |
||
|
14
|
14
43227-50J10-000 WEIGHT,WHEEL BALANCE 35GW/ALUMI WHEEL |
43227-50J10-000 |
US $4.01 |
||
|
14
|
14
43228-50J10-000 WEIGHT,WHEEL BALANCE 40GW/ALUMI WHEEL |
43228-50J10-000 |
US $4.23 |
||
|
14
|
14
43229-50J10-000 WEIGHT,WHEEL BALANCE 45GW/ALUMI WHEEL |
43229-50J10-000 |
US $4.45 |
||
|
15
|
15
43252-65D00-5PK CAP,WHEEL CENTERW/STEEL WHEEL |
43252-65D00-5PK |
from US $22.43 |
||
|
16
|
16
43250-54J50-D2W CAP ASSY,WHEEL CENTERW/ALUMI WHEEL |
43250-54J50-D2W |
US $56.30 |
||
|
17
|
17
79161-52D51-000
PLACARD,TIRE INFORMATION
04 MODEL:Canada |
79161-52D51-000 |
— | ||
|
17
|
17
79161-54J80-000
PLACARD,TIRE INFORMATION
05 MODEL,06 MODEL:Canada |
79161-54J80-000 |
— | ||
|
18
|
18
79161-54J50-000
PLACARD,TIRE INFORMATION
04 MODEL:California:2-ROW |
79161-54J50-000 |
— | ||
|
18
|
18
79161-54J71-000
Placard, tire information
05 MODEL,06 MODEL:California:2-ROW |
79161-54J71-000 |
— | ||
| replacement | |||||
|
18
|
18
79161-54J72-000
PLACARD,TIRE INFORMATION
05 MODEL,06 MODEL:California:2-ROW |
79161-54J72-000 |
— | ||
|
18
|
18
79161-54J40-000
PLACARD,TIRE INFORMATION
04 MODEL:California:3-ROW |
79161-54J40-000 |
— | ||
|
18
|
18
79161-54J61-000
Placard, tire information
05 MODEL,06 MODEL:California:3-ROW |
79161-54J61-000 |
— | ||
| replacement | |||||
|
18
|
18
79161-54J62-000
PLACARD,TIRE INFORMATION
05 MODEL,06 MODEL:California:3-ROW |
79161-54J62-000 |
— | ||
