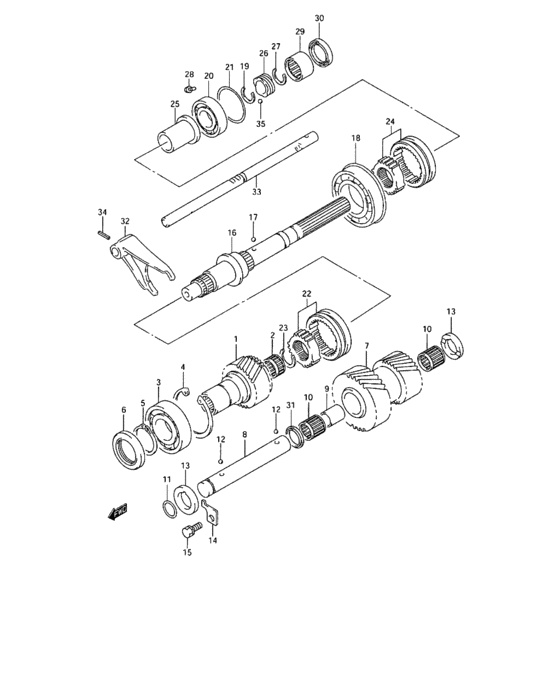

Transfer shaft (2WD:MT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29110-53J00-000
GEAR,T/F INPUT
|
29110-53J00-000 |
— | ||
|
2
|
2
09263-24022-000 BEARING(24X30X17) |
09263-24022-000 |
US $19.01 |
||
|
3
|
3
29112-68D01-000 BEARING,T/F INPUT |
29112-68D01-000 |
US $70.40 |
||
|
4
|
4
09381-72001-000 RING,SNAP |
09381-72001-000 |
from US $13.77 |
||
|
5
|
5
08331-31406-000
Circlip
|
08331-31406-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-31409-000 CIRCLIP |
08331-31409-000 |
from US $4.88 |
||
|
6
|
6
29113-68D00-000 SEAL,T/F INPUT GEAR |
29113-68D00-000 |
from US $10.42 |
||
|
7
|
7
29121-53J00-000
GEAR,T/F COUNTER
|
29121-53J00-000 |
— | ||
|
8
|
8
29131-60A02-000 SHAFT,T/F COUNTER |
29131-60A02-000 |
US $44.16 |
||
|
9
|
9
09180-26004-000 SPACER(26X31X33.7) |
09180-26004-000 |
from US $3.74 |
||
|
10
|
10
09263-25051-000 BEARING(25.4X33.3X31.7) |
09263-25051-000 |
US $25.60 |
||
|
11
|
11
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) |
09280-21008-000 |
from US $0.95 |
||
|
12
|
12
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
13
|
13
09166-25012-000 WASHER |
09166-25012-000 |
from US $9.77 |
||
|
14
|
14
29136-60A01-000 PLATE,T/F COUNTER SHAFT |
29136-60A01-000 |
US $2.08 |
||
|
15
|
15
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
16
|
16
29141-53J00-000
SHAFT,T/F OUTPUT RR
|
29141-53J00-000 |
— | ||
|
17
|
17
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
18
|
18
08173-62100-000 BEARING |
08173-62100-000 |
US $64.40 |
||
|
19
|
19
09380-30007-000 RING,SNAP |
09380-30007-000 |
US $21.70 |
||
|
20
|
20
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r |
09262-30077-000 |
from US $39.20 |
||
|
21
|
21
09181-62003-000 SHIM(62X71X0.1) |
09181-62003-000 |
from US $0.97 |
||
|
21
|
21
09181-62008-000 SHIM(62X71X0.2) |
09181-62008-000 |
from US $1.69 |
||
|
21
|
21
09181-62004-000 SHIM(62X71X0.3) |
09181-62004-000 |
from US $1.04 |
||
|
22
|
22
29230-60A01-000 HUB ASSY,REDUCTION |
29230-60A01-000 |
US $127.70 |
||
|
23
|
23
09380-34003-000 CIRCLIP |
09380-34003-000 |
US $27.20 |
||
|
24
|
24
29230-60A10-000 HUB ASSY,FR DRIVE |
29230-60A10-000 |
US $127.70 |
||
|
25
|
25
29222-53J00-000 BUSH,T/F SPROCKET |
29222-53J00-000 |
US $45.63 |
||
|
26
|
26
29411-50J10-000
Gear,speedometer drive
|
29411-50J10-000 |
— | ||
|
27
|
27
09380-30007-000 RING,SNAP |
09380-30007-000 |
US $21.70 |
||
|
28
|
28
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
28
|
28
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
29
|
29
09263-44001-000 BEARING(44X52X30) |
09263-44001-000 |
US $37.17 |
||
|
30
|
30
09283-44015-000 SEAL,OIL(44X60X9.5) |
09283-44015-000 |
from US $10.78 |
||
|
31
|
31
29133-60A00-000 RING,T/F COUNTER GEAR FRICTION |
29133-60A00-000 |
US $29.60 |
||
|
32
|
32
29321-60A11-000 FORK,T/F REDUCTION SHIFT |
29321-60A11-000 |
US $128 |
||
|
33
|
33
29332-60A10-000 SHAFT,T/F REDUCTION SHIFT |
29332-60A10-000 |
US $42.69 |
||
|
34
|
34
09205-05012-000 PIN,SPRING(5X25) |
09205-05012-000 |
US $1.22 |
||
|
35
|
35
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
