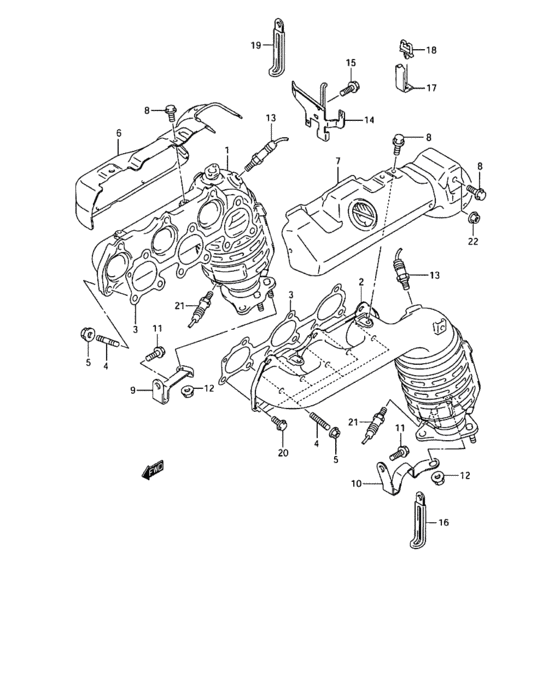

Exhaust manifold (EXHAUST MANIFOLD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-52D00-000
マニホールド,エキゾースト,ライト
04 MODEL,05 MODEL |
14110-52D00-000 |
— | ||
| replacements | |||||
|
1
|
1
14110-66J21-000 MANIFOLD,EXH,R04 MODEL,05 MODEL |
14110-66J21-000 |
US $1,561.60 |
||
|
1
|
1
09159-06077-000 NUT04 MODEL,05 MODEL |
09159-06077-000 |
US $1.28 |
||
|
1
|
1
14110-66J20-000
マニホールド,エキゾースト,ライト
06 MODEL |
14110-66J20-000 |
— | ||
| replacement | |||||
|
1
|
1
14110-66J21-000 MANIFOLD,EXH,R06 MODEL |
14110-66J21-000 |
US $1,561.60 |
||
|
2
|
2
14110-52D10-000
マニホールド,エキゾースト,レフト
04 MODEL,05 MODEL |
14110-52D10-000 |
— | ||
| replacements | |||||
|
2
|
2
14110-66J31-000 MANIFOLD,EXH,L04 MODEL,05 MODEL |
14110-66J31-000 |
US $876.48 |
||
|
2
|
2
09159-06077-000 NUT04 MODEL,05 MODEL |
09159-06077-000 |
US $1.28 |
||
|
2
|
2
14110-66J30-000
マニホールド,エキゾースト,レフト
06 MODEL |
14110-66J30-000 |
— | ||
| replacement | |||||
|
2
|
2
14110-66J31-000 MANIFOLD,EXH,L06 MODEL |
14110-66J31-000 |
US $876.48 |
||
|
3
|
3
14140-67D03-000 GASKET,EXH MANF |
14140-67D03-000 |
from US $25.38 |
||
|
4
|
4
14118-52D10-000
ボルト,エキゾーストマニホールドスタッド
|
14118-52D10-000 |
— | ||
| replacement | |||||
|
4
|
4
14118-77E03-000 STUD BOLT,EXH MANF |
14118-77E03-000 |
US $1.82 |
||
|
4
|
4
14118-77E02-000
スタッドボルト,エキゾーストマニホールド
JS3TX92V 54106824~,JS3TY92V 54106303~ |
14118-77E02-000 |
— | ||
| replacement | |||||
|
4
|
4
14118-77E03-000 STUD BOLT,EXH MANFJS3TX92V 54106824~,JS3TY92V 54106303~ |
14118-77E03-000 |
US $1.82 |
||
|
4
|
4
14118-77E03-000 STUD BOLT,EXH MANFJS3TX92V 54109390~,JS3TY92V 54106868~ |
14118-77E03-000 |
US $1.82 |
||
|
5
|
5
09159-08034-000 NUT |
09159-08034-000 |
from US $1.60 |
||
|
6
|
6
14120-52D00-000
カバー,エキゾーストマニホールド,ライト
04 MODEL,05 MODEL |
14120-52D00-000 |
— | ||
| replacement | |||||
|
6
|
6
14120-66J10-000 COVER,EXH MANF,RIGHT04 MODEL,05 MODEL |
14120-66J10-000 |
US $58.51 |
||
|
6
|
6
14120-66J00-000 COVER,EXH MANF,LEFT06 MODEL |
14120-66J00-000 |
US $48.58 |
||
|
7
|
7
14120-52D10-000
カバー,エキゾーストマニホールド,レフト
04 MODEL,05 MODEL |
14120-52D10-000 |
— | ||
| replacement | |||||
|
7
|
7
14120-66J00-000 COVER,EXH MANF,LEFT04 MODEL,05 MODEL |
14120-66J00-000 |
US $48.58 |
||
|
7
|
7
14120-66J10-000 COVER,EXH MANF,RIGHT06 MODEL |
14120-66J10-000 |
US $58.51 |
||
|
8
|
8
09103-06168-000 BOLT(6X10)04 MODEL,05 MODEL |
09103-06168-000 |
from US $1.01 |
||
|
9
|
9
14271-52D00-000 STIFFENER,EXH MANF,R |
14271-52D00-000 |
US $10.12 |
||
|
10
|
10
14271-52D10-000 STIFFENER,EXH MANF,L |
14271-52D10-000 |
US $10.12 |
||
|
11
|
11
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
12
|
12
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
13
|
13
18213-65D31-000
センサアッシ,オキシジェン
|
18213-65D31-000 |
— | ||
| replacement | |||||
|
13
|
13
18213-65D32-000 SENSOR,OXYGEN |
18213-65D32-000 |
US $320.72 |
||
|
14
|
14
18214-52D01-000 BRACKET,OXYGEN SENSOR |
18214-52D01-000 |
US $9.35 |
||
|
15
|
15
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
09404-12201-000
CLAMP(L:73)
|
09404-12201-000 |
— | ||
| replacement | |||||
|
16
|
16
09404-12203-000 Clamp(L:73) |
09404-12203-000 |
US $23.90 |
||
|
17
|
17
18214-67D00-000
BRACKET,OXYGEN SNSR
|
18214-67D00-000 |
— | ||
|
18
|
18
09403-11313-000 CLAMP |
09403-11313-000 |
from US $3.58 |
||
|
19
|
19
09404-10417-000 CLAMP(L:97) |
09404-10417-000 |
from US $3.71 |
||
|
20
|
20
14118-52D00-000 BOLT,EXH MANF |
14118-52D00-000 |
US $3.53 |
||
|
21
|
21
18213-65D42-000
Sensor, oxygen rr
|
18213-65D42-000 |
— | ||
| replacement | |||||
|
21
|
21
18213-65D43-000
SENSOR,OXYGEN
|
18213-65D43-000 |
— | ||
|
22
|
22
09159-06077-000 NUT06 MODEL |
09159-06077-000 |
US $1.28 |
||
