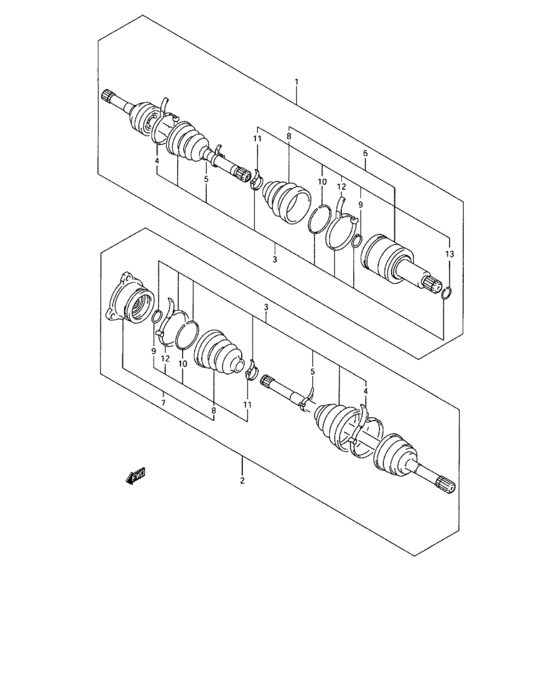

Front drive shaft (4WD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-54J00-000
シャフトアッシ,フロントドライブ,ライト
->44101-54J01,USED WITH 09283-40029 |
44101-54J00-000 |
— | ||
| replacements | |||||
|
1
|
1
44101-54J01-000 SHAFT ASSY,FRONT DRIVE,R->44101-54J01,USED WITH 09283-40029 |
44101-54J01-000 |
US $777.92 |
||
|
1
|
1
09283-40029-000 SEAL,OIL(40X62X8)->44101-54J01,USED WITH 09283-40029 |
09283-40029-000 |
from US $13.46 |
||
|
1
|
1
44101-54J01-000 SHAFT ASSY,FRONT DRIVE,RJS3TX92V 54109413~ |
44101-54J01-000 |
US $777.92 |
||
|
2
|
2
44102-54J00-000 SHAFT ASSY,FRONT DRIVE,L |
44102-54J00-000 |
US $647.68 |
||
|
3
|
3
44118-54J00-000
BOOT SET,WHEEL SIDE
|
44118-54J00-000 |
— | ||
| replacement | |||||
|
3
|
3
44118-54J01-000 BOOT SET,WHEEL SIDE |
44118-54J01-000 |
US $106.72 |
||
|
4
|
4
44122-54J00-000
CLAMP
|
44122-54J00-000 |
— | ||
|
5
|
5
44124-54J00-000
CLAMP
|
44124-54J00-000 |
— | ||
|
6
|
6
44114-54J00-000
ジョイントアッシ,ディファレンシャルサイド,ライト
->44114-54J01,USED WITH 09283-40029 |
44114-54J00-000 |
— | ||
| replacements | |||||
|
6
|
6
09283-40029-000 SEAL,OIL(40X62X8)->44114-54J01,USED WITH 09283-40029 |
09283-40029-000 |
from US $13.46 |
||
|
6
|
6
44114-54J02-000 JOINT ASSY,DIFF SIDE,R->44114-54J01,USED WITH 09283-40029 |
44114-54J02-000 |
US $457.60 |
||
|
6
|
6
44114-54J01-000
JOINT ASSY,DIFF SIDE,R
JS3TX92V 54109413~ |
44114-54J01-000 |
— | ||
| replacement | |||||
|
6
|
6
44114-54J02-000 JOINT ASSY,DIFF SIDE,RJS3TX92V 54109413~ |
44114-54J02-000 |
US $457.60 |
||
|
7
|
7
44115-54J00-000 JOINT ASSY,DIFF SIDE,L |
44115-54J00-000 |
US $397.44 |
||
|
8
|
8
44119-54J00-000
BOOT SET
|
44119-54J00-000 |
— | ||
| replacement | |||||
|
8
|
8
44119-54J01-000 BOOT SET |
44119-54J01-000 |
US $80.96 |
||
|
9
|
9
44111-54J50-000 RING,SNAP |
44111-54J50-000 |
US $3.72 |
||
|
10
|
10
44112-78E00-000 CIRCLIP |
44112-78E00-000 |
US $5.26 |
||
|
11
|
11
44121-54J00-000
CLAMP
|
44121-54J00-000 |
— | ||
|
12
|
12
44123-60A00-000 CLAMP,BOOTClamp, universal joint |
44123-60A00-000 |
from US $12.59 |
||
|
13
|
13
44111-65D00-000 RING,SNAP |
44111-65D00-000 |
from US $1.60 |
||
