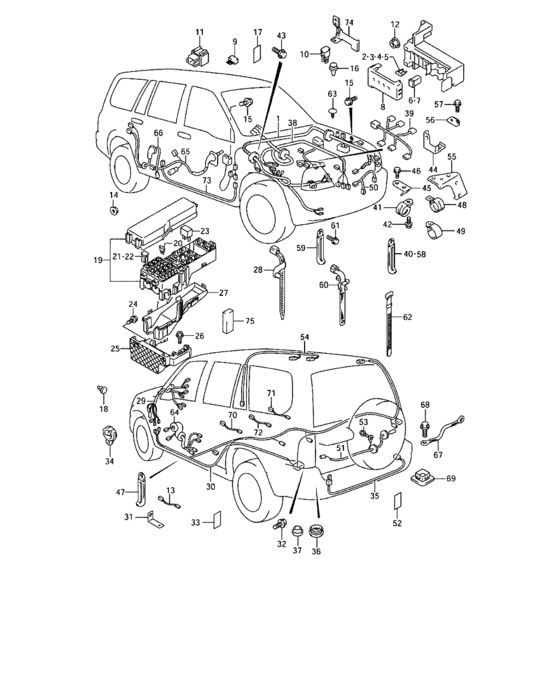

Wiring harness (WIRING HARNESS) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36607-54J00-000
HARNESS ASSY,MAIN
Canada:04 MODEL:AT |
36607-54J00-000 |
— | ||
|
1
|
1
36609-54JA0-000
HARNESS ASSY,MAIN
Canada:05 MODEL,06 MODEL:AT |
36609-54JA0-000 |
— | ||
|
2
|
2
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.06 |
||
|
3
|
3
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $3.25 |
||
|
4
|
4
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $2.28 |
||
|
5
|
5
09481-25501-000 FUSE(25A) |
09481-25501-000 |
from US $2.28 |
||
|
6
|
6
09481-30401-000 FUSE(30A) |
09481-30401-000 |
from US $5.96 |
||
|
7
|
7
09481-40401-000 FUSE(40A) |
09481-40401-000 |
from US $3.83 |
||
|
8
|
8
36717-50J00-000 COVER,FUSE BOX |
36717-50J00-000 |
US $8.13 |
||
|
9
|
9
33459-61B10-000 DIODE |
33459-61B10-000 |
US $15.57 |
||
|
10
|
10
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
11
|
11
38610-84F21-000 RELAY,TURN SIGNAL |
38610-84F21-000 |
US $59.62 |
||
|
12
|
12
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
36658-54J00-000
Wire comp,4wd mot
|
36658-54J00-000 |
— | ||
|
14
|
14
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
15
|
15
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
16
|
16
09148-05042-000 CLIP |
09148-05042-000 |
US $1.12 |
||
|
17
|
17
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
18
|
18
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
19
|
19
36740-52J01-000 BOX ASSY,MAIN FUSE |
36740-52J01-000 |
US $121.44 |
||
|
20
|
20
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
21
|
21
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $2.28 |
||
|
22
|
22
09481-60401-000 FUSE(60A) |
09481-60401-000 |
from US $3.92 |
||
|
23
|
23
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
24
|
24
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
25
|
25
36737-50J11-000 BRACKET,MAIN FUSE BOX,L |
36737-50J11-000 |
US $37.90 |
||
|
26
|
26
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
27
|
27
36749-50J00-000 COVER,MAIN FUSE BOX UNDER |
36749-50J00-000 |
US $30.73 |
||
|
28
|
28
36990-52D00-000 CLAMP,MAIN HARN |
36990-52D00-000 |
US $2.87 |
||
|
29
|
29
36620-54JE0-000
Harness assy,inp
4WD:04 MODEL:AT |
36620-54JE0-000 |
— | ||
|
29
|
29
36920-54J00-000
HARNESS ASSY,I/P
4WD:05 MODEL:AT |
36920-54J00-000 |
— | ||
|
29
|
29
36920-54J40-000
HARNESS ASSY,I/P
4WD:06 MODEL:AT |
36920-54J40-000 |
— | ||
|
30
|
30
36630-54JE0-000
HARNESS ASSY,FLOOR
04 MODEL |
36630-54JE0-000 |
— | ||
|
30
|
30
36930-54J00-000
HARNESS ASSY,FLOOR
05 MODEL,06 MODEL:Canada |
36930-54J00-000 |
— | ||
|
31
|
31
36737-80E00-000
BRACKET,HARN
|
36737-80E00-000 |
— | ||
|
32
|
32
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
32
|
32
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
33
|
33
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
34
|
34
09403-35301-000 CLAMP |
09403-35301-000 |
US $14 |
||
|
35
|
35
36840-65D60-000
WIRE,FUEL
N/ABS |
36840-65D60-000 |
— | ||
|
35
|
35
36840-52D20-000
Wire comp,fuel
W/ABS:04 MODEL |
36840-52D20-000 |
— | ||
|
35
|
35
36840-52D00-000
WIRE,FUEL
W/ABS:05 MODEL,06 MODEL |
36840-52D00-000 |
— | ||
|
36
|
36
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
37
|
37
09250-35003-000 CAP(OD:45)Cap, frame bridge |
09250-35003-000 |
from US $5.41 |
||
|
38
|
38
36950-54JB0-000
Harness assy,eng
4WD:04 MODEL:AT |
36950-54JB0-000 |
— | ||
|
38
|
38
36950-54JN0-000
HARNESS ASSY,ENGINE
4WD:05 MODEL,06 MODEL:AT |
36950-54JN0-000 |
— | ||
|
39
|
39
36670-52D01-000 HARNESS ASSY,INJ |
36670-52D01-000 |
US $159.71 |
||
|
40
|
40
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
| replacements | |||||
|
40
|
40
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
40
|
40
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
40
|
40
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
41
|
41
36649-50F60-000 CLAMP,HARN |
36649-50F60-000 |
US $4.34 |
||
|
42
|
42
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
42
|
42
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
43
|
43
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
43
|
43
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
44
|
44
36995-67D20-000
BRACKET,ENG HARN
|
36995-67D20-000 |
— | ||
|
45
|
45
36995-77E21-000 BRACKET,ENG HARN |
36995-77E21-000 |
US $1.69 |
||
|
46
|
46
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
46
|
46
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
46
|
46
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
47
|
47
09404-08420-000 CLAMP(L:120 T:1.0)AT |
09404-08420-000 |
from US $2.08 |
||
|
48
|
48
36649-70E00-000
CLAMP,MAIN HARNESS
|
36649-70E00-000 |
— | ||
|
49
|
49
09403-23402-000 CLAMP |
09403-23402-000 |
US $23.90 |
||
|
50
|
50
36895-52J00-000
WIRE,OIL PRESS SW
|
36895-52J00-000 |
— | ||
|
51
|
51
36845-65D01-000 WIRE,BACK DRW/CLEAR GLASS |
36845-65D01-000 |
US $132.48 |
||
|
51
|
51
36845-65D11-000
WIRE,BACK DR
W/DARK GLASS |
36845-65D11-000 |
— | ||
|
52
|
52
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
53
|
53
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
54
|
54
36820-54J10-000
WIRE,ROOM LAMP
AT |
36820-54J10-000 |
— | ||
|
55
|
55
36995-77E00-000 BRACKET,ENG HARN |
36995-77E00-000 |
US $5.74 |
||
|
56
|
56
36995-77E90-000 BRACKET,ENG HARN |
36995-77E90-000 |
US $2.83 |
||
|
57
|
57
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
57
|
57
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
57
|
57
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
59
|
59
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
| replacements | |||||
|
59
|
59
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
59
|
59
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
59
|
59
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
60
|
60
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
61
|
61
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
61
|
61
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
61
|
61
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
62
|
62
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
63
|
63
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
64
|
64
36756-52J01-000 WIRE,FR DR DRVRN/POWER MIRROR |
36756-52J01-000 |
US $176.64 |
||
|
64
|
64
36756-52J11-000 WIRE,FR DR DRVRW/POWER MIRROR |
36756-52J11-000 |
US $187.68 |
||
|
65
|
65
36757-52J00-000
WIRE,SUB DR
N/POWER MIRROR |
36757-52J00-000 |
— | ||
|
65
|
65
36757-52J10-000
WIRE,SUB DR
W/POWER MIRROR |
36757-52J10-000 |
— | ||
|
66
|
66
36751-52D00-000
WIRE,RR DR
|
36751-52D00-000 |
— | ||
|
67
|
67
39312-77E10-000 WIRE,HORN GND |
39312-77E10-000 |
US $6.92 |
||
|
68
|
68
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
68
|
68
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
69
|
69
75411-60A00-000 CAP,TAIL MEMBER LOWER |
75411-60A00-000 |
US $2.56 |
||
|
70
|
70
36611-50J00-000
WIRE,CONSOLE
|
36611-50J00-000 |
— | ||
|
71
|
71
36611-50J10-000
WIRE,CONSOLE
AT |
36611-50J10-000 |
— | ||
|
73
|
73
36695-52J00-000
WIRE,PRE-TENSIONER
|
36695-52J00-000 |
— | ||
|
74
|
74
36655-52J00-000
BRACKET,ENG HARN
|
36655-52J00-000 |
— | ||
|
75
|
75
76551-52D00-000 PAD |
76551-52D00-000 |
US $6.73 |
||
