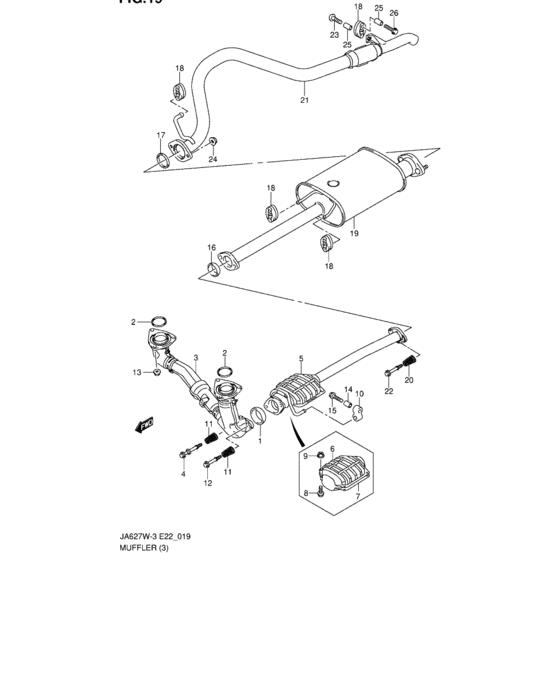

Muffler (Chile,Australia,Brazil,Saudi Arabia,China,India) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
2
|
2
14184-65D00-000 GASKET,EXH PIPE |
14184-65D00-000 |
from US $8.93 |
||
|
3
|
3
14190-67D05-000
パイプ,エキゾースト,NO.1
|
14190-67D05-000 |
— | ||
| replacement | |||||
|
3
|
3
14190-67DVV-000 PIPE SET,EXHAUST |
14190-67DVV-000 |
US $535.04 |
||
|
4
|
4
14193-77E00-000 BOLT,EXH PIPE |
14193-77E00-000 |
from US $13.68 |
||
|
5
|
5
14250-67D21-000
PIPE,EXH NO.2
|
14250-67D21-000 |
— | ||
|
6
|
6
14251-65D00-000
カバー,キャタリストケース,アッパ
|
14251-65D00-000 |
— | ||
| replacement | |||||
|
6
|
6
14251-65D0V-000 COVER,CATACASE UPPER |
14251-65D0V-000 |
US $41.60 |
||
|
7
|
7
14252-65D60-000
カバー,キャタリストケースロア
|
14252-65D60-000 |
— | ||
| replacement | |||||
|
7
|
7
14252-65D6V-000 COVER,CATACASE LOWER 65D-C02 |
14252-65D6V-000 |
US $20.42 |
||
|
8
|
8
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
8
|
8
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
9
|
9
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
14281-71C01-000 MOUNTING,MUF |
14281-71C01-000 |
from US $7.49 |
||
|
11
|
11
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
11
|
11
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
12
|
12
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
12
|
12
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
13
|
13
09159-10098-000 NUT |
09159-10098-000 |
from US $1.28 |
||
|
14
|
14
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
14
|
14
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
15
|
15
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
15
|
15
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
16
|
16
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
17
|
17
14184-67D00-000 GASKET,MUFFLER |
14184-67D00-000 |
from US $6.55 |
||
|
18
|
18
14281-58B01-000 MOUNTING,MUF |
14281-58B01-000 |
US $22.40 |
||
|
19
|
19
14300-52D21-000 MUFFLER |
14300-52D21-000 |
US $436.48 |
||
|
20
|
20
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
20
|
20
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
21
|
21
14630-52D11-000
Pipe, muf tail
Chile,India |
14630-52D11-000 |
— | ||
| replacement | |||||
|
21
|
21
14630-52D21-000 PIPE,TAILChile,India |
14630-52D21-000 |
US $200.56 |
||
|
21
|
21
14630-52D21-000 PIPE,TAILAustralia,Brazil,Saudi Arabia,China |
14630-52D21-000 |
US $200.56 |
||
|
22
|
22
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
22
|
22
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
23
|
23
09139-08019-000 SCREW(8X35) |
09139-08019-000 |
US $23.60 |
||
|
24
|
24
09159-10049-000
Nut
|
09159-10049-000 |
— | ||
| replacement | |||||
|
24
|
24
09159-10102-000 NUT |
09159-10102-000 |
from US $0.97 |
||
|
25
|
25
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
25
|
25
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
26
|
26
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
26
|
26
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
