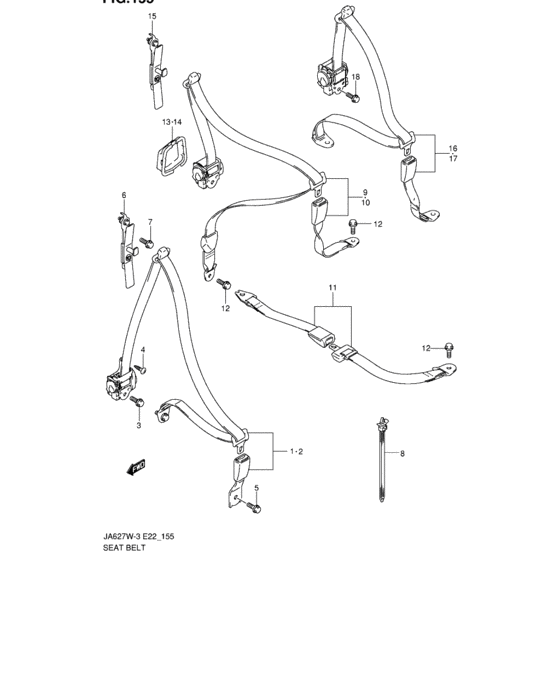

Seat belt (SEAT BELT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-52DM0-KK1
BELT ASSY,FR,R
,1,Taiwan |
84901-52DM0-KK1 |
— | ||
|
1
|
1
84901-52DL0-KK1
Belt assy, front rh
, |
84901-52DL0-KK1 |
— | ||
| replacement | |||||
|
1
|
1
84901-52DL1-KK1 BELT ASSY,FR,R, |
84901-52DL1-KK1 |
US $356.96 |
||
|
1
|
1
84901-52DQ0-KK1
Belt assy, front rh
Chile,Germany,Brazil,Saudi Arabia,China,Israel |
84901-52DQ0-KK1 |
— | ||
| replacements | |||||
|
1
|
1
84910-52D00-R8J
BUCKLE ASSY,FR BELT
Chile,Germany,Brazil,Saudi Arabia,China,Israel |
84910-52D00-R8J |
— | ||
|
1
|
1
84920-52DQ1-KK1 TONGUE ASSY,FR BELT,RChile,Germany,Brazil,Saudi Arabia,China,Israel |
84920-52DQ1-KK1 |
US $299.92 |
||
|
1
|
1
84901-52DP0-KK1
Belt assy, front rh
Australia,India |
84901-52DP0-KK1 |
— | ||
| replacements | |||||
|
1
|
1
84910-52D20-R8J
Buckle assy,fr belt(gray)
Australia,India |
84910-52D20-R8J |
— | ||
|
1
|
1
84920-52DL1-KK1
Tongue assy,fr belt r(gray)
Australia,India |
84920-52DL1-KK1 |
— | ||
|
1
|
1
84901-52DM0-R8H
BELT ASSY,FR,R
Taiwan |
84901-52DM0-R8H |
— | ||
|
2
|
2
84902-52DM0-KK1
BELT ASSY,FR,L
,1 |
84902-52DM0-KK1 |
— | ||
|
2
|
2
84902-52DL0-KK1
Belt assy, front lh
Chile,Germany,Brazil,China,Israel |
84902-52DL0-KK1 |
— | ||
| replacement | |||||
|
2
|
2
84902-52DL1-KK1 BELT ASSY,FR,LChile,Germany,Brazil,China,Israel |
84902-52DL1-KK1 |
US $393.76 |
||
|
2
|
2
84902-52DQ0-KK1
Belt assy, front lh
,,4,India |
84902-52DQ0-KK1 |
— | ||
| replacement | |||||
|
2
|
2
84902-52DQ1-KK1
Belt assy,fr l(gray)
,,4,India |
84902-52DQ1-KK1 |
— | ||
|
2
|
2
84902-52DN0-KK1
BELT ASSY,FR,L
Taiwan |
84902-52DN0-KK1 |
— | ||
|
2
|
2
84902-52DN0-R8H
Belt assy,fr,l
Taiwan |
84902-52DN0-R8H |
— | ||
|
2
|
2
84902-52DP0-KK1
Belt assy, front lh
Saudi Arabia |
84902-52DP0-KK1 |
— | ||
| replacement | |||||
|
2
|
2
84902-52DP1-KK1
BELT ASSY,FR,L
Saudi Arabia |
84902-52DP1-KK1 |
— | ||
|
3
|
3
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
4
|
4
03141-06103-000
Screw
|
03141-06103-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
5
|
5
09117-11001-000
Bolt (11x20)
|
09117-11001-000 |
— | ||
| replacement | |||||
|
5
|
5
09117-11002-000 BOLT(11X20) |
09117-11002-000 |
US $20.20 |
||
|
6
|
6
84990-65DB0-6GS ADJUSTER ASSY,FR SHLDR,,,0,1,2,4,Brazil,Taiwan,,Saudi Arabia,China,Israel,India |
84990-65DB0-6GS |
US $72.50 |
||
|
6
|
6
84990-65DB0-R8H
ADJUSTER ASSY,FR SHLDR
Taiwan |
84990-65DB0-R8H |
— | ||
|
7
|
7
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
8
|
8
09407-11402-000 CLAMP(L:90)Australia,Taiwan,Saudi Arabia,India |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
8
|
8
09407-17402-000 CLAMPAustralia,Taiwan,Saudi Arabia,India |
09407-17402-000 |
from US $1.98 |
||
|
9
|
9
84904-52DL0-KK1
Belt assy,rr,r(gray)
,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84904-52DL0-KK1 |
— | ||
| replacements | |||||
|
9
|
9
84950-52D00-R8J BUCKLE ASSY,RR BELT,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84950-52D00-R8J |
US $42.69 |
||
|
9
|
9
84960-52DL0-KK1 TONGUE ASSY,RR BELT,R,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84960-52DL0-KK1 |
US $115.55 |
||
|
9
|
9
84904-52DL0-R8H
Belt assy,rr,r
Taiwan |
84904-52DL0-R8H |
— | ||
| replacements | |||||
|
9
|
9
84950-52D00-R8H
BUCKLE ASSY,RR BELT
Taiwan |
84950-52D00-R8H |
— | ||
|
9
|
9
84960-52DL0-R8H
TONGUE ASSY,RR BELT,R
Taiwan |
84960-52DL0-R8H |
— | ||
|
9
|
9
84904-52DN0-KK1
Belt assy,rr,r
,2,Israel |
84904-52DN0-KK1 |
— | ||
| replacements | |||||
|
9
|
9
84950-52D00-R8J BUCKLE ASSY,RR BELT,2,Israel |
84950-52D00-R8J |
US $42.69 |
||
|
9
|
9
84960-52DN0-KK1 TONGUE ASSY,RR BELT,R,2,Israel |
84960-52DN0-KK1 |
US $115.55 |
||
|
10
|
10
84905-52DL0-KK1
Belt assy,rr,l(gray)
,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84905-52DL0-KK1 |
— | ||
| replacements | |||||
|
10
|
10
84950-52D00-R8J BUCKLE ASSY,RR BELT,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84950-52D00-R8J |
US $42.69 |
||
|
10
|
10
84980-52DL0-KK1 TONGUE ASSY,RR BELT,L,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84980-52DL0-KK1 |
US $115.55 |
||
|
10
|
10
84905-52DL0-R8H
Belt assy,rr,l
Taiwan |
84905-52DL0-R8H |
— | ||
| replacements | |||||
|
10
|
10
84950-52D00-R8H
BUCKLE ASSY,RR BELT
Taiwan |
84950-52D00-R8H |
— | ||
|
10
|
10
84980-52DL0-R8H
TONGUE ASSY,RR BELT,L
Taiwan |
84980-52DL0-R8H |
— | ||
|
10
|
10
84905-52DN0-KK1
Belt assy,rr,l(gray)
,2,Israel |
84905-52DN0-KK1 |
— | ||
| replacements | |||||
|
10
|
10
84950-52D00-R8J BUCKLE ASSY,RR BELT,2,Israel |
84950-52D00-R8J |
US $42.69 |
||
|
10
|
10
84980-52DN0-KK1 TONGUE ASSY,RR BELT,L,2,Israel |
84980-52DN0-KK1 |
US $115.55 |
||
|
11
|
11
84906-52DL0-KY3
Belt assy, rear center
,,General,2,4,Israel,India |
84906-52DL0-KY3 |
— | ||
| replacement | |||||
|
11
|
11
84906-52DL0-R8J
BELT ASSY,RR CENTER
,,General,2,4,Israel,India |
84906-52DL0-R8J |
— | ||
|
11
|
11
84906-52DA0-KY3
BELT ASSY,RR CENTER(GRAY)
Taiwan |
84906-52DA0-KY3 |
— | ||
|
11
|
11
84906-52DA0-JY4
ベルトアッシ,リヤ,センタ(ベージュ)
Taiwan |
84906-52DA0-JY4 |
— | ||
| replacement | |||||
|
11
|
11
84906-52DA0-R8H
BELT ASSY,RR CENTER
Taiwan |
84906-52DA0-R8H |
— | ||
|
12
|
12
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
13
|
13
84967-52DA0-000
COVER,RR ELR HOLE,R
|
84967-52DA0-000 |
— | ||
|
14
|
14
84977-52DA0-000 COVER,RR ELR HOLE,L |
84977-52DA0-000 |
US $19.69 |
||
|
15
|
15
84990-65DB0-6GS ADJUSTER ASSY,FR SHLDR,,,0,1,2,4,Brazil,Taiwan,,Saudi Arabia,China,Israel,India |
84990-65DB0-6GS |
US $72.50 |
||
|
15
|
15
84990-65DB0-R8H
ADJUSTER ASSY,FR SHLDR
Taiwan |
84990-65DB0-R8H |
— | ||
|
16
|
16
84904-52DQ0-KK1
Belt assy,3rd,r
,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84904-52DQ0-KK1 |
— | ||
| replacements | |||||
|
16
|
16
84950-52D00-R8J BUCKLE ASSY,RR BELT,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84950-52D00-R8J |
US $42.69 |
||
|
16
|
16
84960-52DL0-KK1 TONGUE ASSY,RR BELT,R,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84960-52DL0-KK1 |
US $115.55 |
||
|
16
|
16
84904-52DQ0-R8H
Belt assy,3rd,r
Taiwan |
84904-52DQ0-R8H |
— | ||
| replacements | |||||
|
16
|
16
84950-52D00-R8H
BUCKLE ASSY,RR BELT
Taiwan |
84950-52D00-R8H |
— | ||
|
16
|
16
84960-52DL0-R8H
TONGUE ASSY,RR BELT,R
Taiwan |
84960-52DL0-R8H |
— | ||
|
16
|
16
84904-52DR0-KK1
Belt assy,3rd,r(gray)
,2,Israel |
84904-52DR0-KK1 |
— | ||
| replacements | |||||
|
16
|
16
84950-52DR0-R8J BUCKLE ASSY,RR BELT,2,Israel |
84950-52DR0-R8J |
US $38.64 |
||
|
16
|
16
84960-52DR0-KK1 TONGUE ASSY,RR BELT,R,2,Israel |
84960-52DR0-KK1 |
US $104.88 |
||
|
17
|
17
84905-52DQ0-KK1
Belt assy,3rd,l(gray)
,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84905-52DQ0-KK1 |
— | ||
| replacements | |||||
|
17
|
17
84950-52D00-R8J BUCKLE ASSY,RR BELT,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84950-52D00-R8J |
US $42.69 |
||
|
17
|
17
84980-52DL0-KK1 TONGUE ASSY,RR BELT,L,,0,1,Australia,Brazil,Taiwan,Saudi Arabia,,China,India |
84980-52DL0-KK1 |
US $115.55 |
||
|
17
|
17
84905-52DQ0-R8H
Belt assy,3rd,l
Taiwan |
84905-52DQ0-R8H |
— | ||
| replacements | |||||
|
17
|
17
84950-52D00-R8H
BUCKLE ASSY,RR BELT
Taiwan |
84950-52D00-R8H |
— | ||
|
17
|
17
84980-52DL0-R8H
TONGUE ASSY,RR BELT,L
Taiwan |
84980-52DL0-R8H |
— | ||
|
17
|
17
84905-52DR0-KK1
Belt assy,3rd,l(gray)
,2,Israel |
84905-52DR0-KK1 |
— | ||
| replacements | |||||
|
17
|
17
84950-52DR0-R8J BUCKLE ASSY,RR BELT,2,Israel |
84950-52DR0-R8J |
US $38.64 |
||
|
17
|
17
84980-52DR0-KK1
TONGUE ASSY,RR BELT,L
,2,Israel |
84980-52DR0-KK1 |
— | ||
|
18
|
18
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
