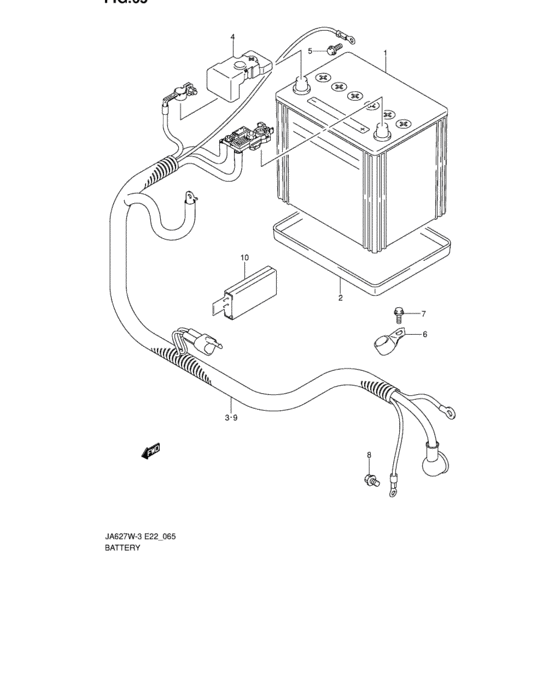

Battery (BATTERY) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-77E20-000
バッテリ,55D23LーMF,12V48AH/5HR,FB
|
33610-77E20-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-77EV8-000
BATTERY ASSY,75D23L (Cannot be supplied)
|
33610-77EV8-000 |
— | ||
|
1
|
1
33610-52DV0-000
Battery assy
|
33610-52DV0-000 |
— | ||
|
2
|
2
33660-65D20-000 TRAY,BATTERY |
33660-65D20-000 |
US $14.87 |
||
|
3
|
3
33800-52J00-000
Cable assy, battery
LHD |
33800-52J00-000 |
— | ||
| replacement | |||||
|
3
|
3
33800-52J20-000 CABLE ASSY,BTRYLHD |
33800-52J20-000 |
US $464.64 |
||
|
4
|
4
36694-50J00-000 COVER,BTRY TERMINAL |
36694-50J00-000 |
US $11.68 |
||
|
5
|
5
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
5
|
5
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
6
|
6
36649-67D00-000 CLAMP,BTRY CABLE |
36649-67D00-000 |
US $3.39 |
||
|
7
|
7
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
7
|
7
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
8
|
8
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
8
|
8
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
9
|
9
33800-52J10-000
Cable assy, battery
RHD |
33800-52J10-000 |
— | ||
| replacement | |||||
|
9
|
9
33800-52J30-000 CABLE ASSY,BTRYRHD |
33800-52J30-000 |
US $408.32 |
||
|
10
|
10
36992-65D20-000
PROTECTOR,BTRY CABLE
RHD |
36992-65D20-000 |
— | ||
