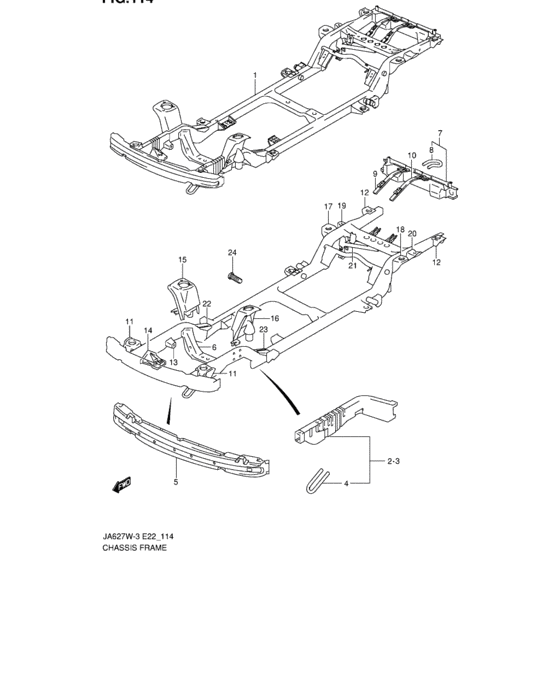

Chassis frame (CHASSIS FRAME) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-52D20-000
フレームアッシ
|
57000-52D20-000 |
— | ||
| replacement | |||||
|
1
|
1
57000-52D23-000
Frame assy
|
57000-52D23-000 |
— | ||
|
2
|
2
57110-52DV0-000 MEMBER,SIDE FRAME FR,R |
57110-52DV0-000 |
US $425.92 |
||
|
3
|
3
57160-52DV0-000
MEMBER,SIDE FRAME FR,L
|
57160-52DV0-000 |
— | ||
|
4
|
4
57164-52D00-000 HOOK,FR TOWING |
57164-52D00-000 |
US $31.46 |
||
|
5
|
5
57210-65DV1-000 MEMBER,FR BUMPER |
57210-65DV1-000 |
US $371.68 |
||
|
6
|
6
57220-52D00-000
クロスメンバ,セカンド
|
57220-52D00-000 |
— | ||
| replacement | |||||
|
6
|
6
57220-52D11-000 CROSSMEMBER,2ND |
57220-52D11-000 |
US $329.36 |
||
|
7
|
7
57260-52D00-000 CROSSMEMBER,TAIL |
57260-52D00-000 |
US $222.64 |
||
|
8
|
8
57263-52D00-000 HOOK,RR TOWING |
57263-52D00-000 |
US $29.81 |
||
|
9
|
9
57270-52D10-000 MEMBER,RR FRAME CTR,R |
57270-52D10-000 |
US $148.67 |
||
|
10
|
10
57280-52D10-000 MEMBER,RR FRAME CTR,L |
57280-52D10-000 |
US $148.67 |
||
|
11
|
11
57310-65D00-000 BRACKET,1ST MOUNTING |
57310-65D00-000 |
US $42.69 |
||
|
12
|
12
57371-65D00-000 BRACKET,4TH MOUNTING |
57371-65D00-000 |
US $50.78 |
||
|
13
|
13
57410-65D00-000 BRACKET,FR DIFF MOUNTING |
57410-65D00-000 |
US $51.52 |
||
|
14
|
14
57710-65D10-000 BRACKET,FR SUSPNSN FRAME |
57710-65D10-000 |
US $93.84 |
||
|
15
|
15
57730-52D00-000
BRACKET,FR STRUT,R
|
57730-52D00-000 |
— | ||
|
16
|
16
57740-52D00-000
BRACKET,FR STRUT,L
|
57740-52D00-000 |
— | ||
|
17
|
17
57810-52D00-000
Bracket,rr coil spring,r
|
57810-52D00-000 |
— | ||
|
18
|
18
57820-52D00-000
BRACKET,RR COIL SPRING,L
|
57820-52D00-000 |
— | ||
|
19
|
19
57831-52D00-000
ブラケット,リヤショックアブソーバ,ライト
|
57831-52D00-000 |
— | ||
| replacement | |||||
|
19
|
19
57830-52D00-000
BRACKET,RR SHOCK ABS,R
|
57830-52D00-000 |
— | ||
|
20
|
20
57841-52D00-000
ブラケット,リヤショックアブソーバ,レフト
|
57841-52D00-000 |
— | ||
| replacement | |||||
|
20
|
20
57840-52D00-000
BRACKET,RR SHOCK ABS,L
|
57840-52D00-000 |
— | ||
|
21
|
21
57870-52D00-000
Bracket,lateral rod
|
57870-52D00-000 |
— | ||
|
22
|
22
57881-52D00-000
GUSSET,SIDE FRAME FR END,R
|
57881-52D00-000 |
— | ||
|
23
|
23
57891-52D00-000
GUSSET,SIDE FRAME FR END,L
|
57891-52D00-000 |
— | ||
|
24
|
24
09119-05018-000 BOLT(8X35) |
09119-05018-000 |
US $9.60 |
||
