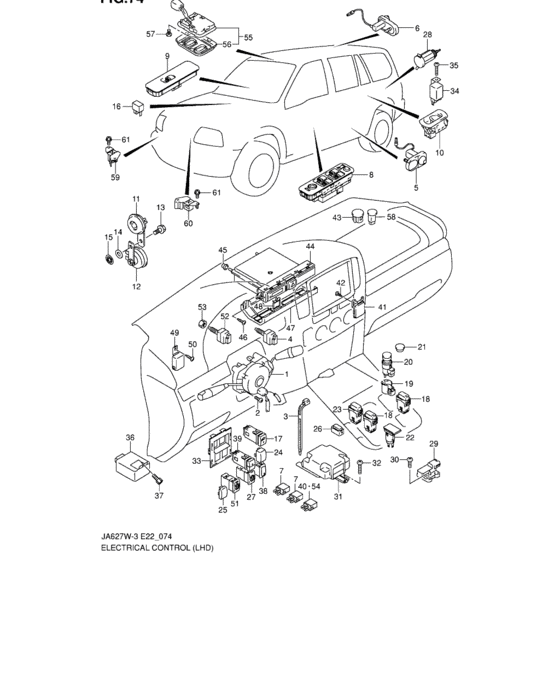

Electrical control (LHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-50J20-000 SWITCH ASSY,COMB,0,Brazil,Saudi Arabia,China |
37400-50J20-000 |
US $506.88 |
||
|
1
|
1
37400-50J10-000 SWITCH ASSY,COMBGermany,Israel:N/AUTO CRUISE,N/STEERING WHEEL AUDIO SWITCH |
37400-50J10-000 |
US $461.12 |
||
|
1
|
1
37400-50J90-000 SWITCH ASSY,COMBTaiwan |
37400-50J90-000 |
US $478.72 |
||
|
2
|
2
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
4
|
4
37740-75H20-000
スイッチアッシ,ストップランプ
N/AUTO CRUISE |
37740-75H20-000 |
— | ||
| replacement | |||||
|
4
|
4
37740-75H21-000 SWITCH ASSY,STOP LAMPN/AUTO CRUISE |
37740-75H21-000 |
from US $15.91 |
||
|
4
|
4
37740-73H10-000 SWITCH ASSY,STOP LAMPW/AUTO CRUISE |
37740-73H10-000 |
from US $23.02 |
||
|
5
|
5
37670-65D00-000
Switch assy,door
|
37670-65D00-000 |
— | ||
| replacement | |||||
|
5
|
5
37670-65D01-000 SWITCH ASSY,DOOR |
37670-65D01-000 |
from US $8.75 |
||
|
6
|
6
37670-65D00-000
Switch assy,door
|
37670-65D00-000 |
— | ||
| replacement | |||||
|
6
|
6
37670-65D01-000 SWITCH ASSY,DOOR |
37670-65D01-000 |
from US $8.75 |
||
|
7
|
7
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
8
|
8
37990-52J20-R9S SWITCH ASSY,P/W MAIN |
37990-52J20-R9S |
US $353.28 |
||
|
9
|
9
37995-50J00-R9S
SWITCH ASSY,P/W SUB
|
37995-50J00-R9S |
— | ||
|
10
|
10
37995-75F00-R8J SWITCH ASSY,P/W SUB |
37995-75F00-R8J |
from US $52 |
||
|
10
|
10
37995-75F00-R8H SWITCH ASSY,P/W SUB |
37995-75F00-R8H |
US $65.87 |
||
|
11
|
11
38500-65D20-000 HORN ASSY,HIGH PITCHED,Germany,Saudi Arabia,China,Israel |
38500-65D20-000 |
US $62.93 |
||
|
11
|
11
38500-65D30-000
ホーンアッシ,ハイピッチド
Chile,Brazil,Taiwan |
38500-65D30-000 |
— | ||
| replacement | |||||
|
11
|
11
38500-65D31-000 HORN ASSYChile,Brazil,Taiwan |
38500-65D31-000 |
US $44.16 |
||
|
12
|
12
38500-65D10-000
ホーンアッシ,ローピッチド
|
38500-65D10-000 |
— | ||
| replacement | |||||
|
12
|
12
38500-65D50-000 HORN ASSY,LOW PITCHED |
38500-65D50-000 |
US $73.97 |
||
|
13
|
13
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
13
|
13
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
14
|
14
09160-08501-000 WASHER(8.5X24X2.3)Washer |
09160-08501-000 |
from US $1.60 |
||
|
15
|
15
38570-65D00-000 STOPPER,HORN |
38570-65D00-000 |
US $1.62 |
||
|
16
|
16
38860-70E20-000 RELAY ASSY,HORN |
38860-70E20-000 |
US $29.60 |
||
|
17
|
17
37280-50J00-000 SWITCH ASSY,RR FOGGermany,China,Israel |
37280-50J00-000 |
US $87.58 |
||
|
18
|
18
37850-50J00-000
スイッチアッシ,シートヒータ
W/SEAT HEATER |
37850-50J00-000 |
— | ||
| replacement | |||||
|
18
|
18
37850-50J01-000 SWITCH ASSY,SEAT HEATERW/SEAT HEATER |
37850-50J01-000 |
US $55.20 |
||
|
19
|
19
39430-50J00-000 COVER,LIGHTERW/CIGARETTE LIGHTER |
39430-50J00-000 |
US $8.91 |
||
|
20
|
20
39400-50J00-000 LIGHTER ASSY,CIGARETTEW/CIGARETTE LIGHTER |
39400-50J00-000 |
US $30.40 |
||
|
21
|
21
39410-50J10-5PK SOCKET ASSYN/CIGARETTE LIGHTER |
39410-50J10-5PK |
US $19.87 |
||
|
22
|
22
39410-50J00-R8J SOCKET ASSY (GRAY) |
39410-50J00-R8J |
US $27.97 |
||
|
22
|
22
39410-50J00-R8H SOCKET ASSY (BEIGE) |
39410-50J00-R8H |
US $20.98 |
||
|
23
|
23
37865-50J00-000
スイッチアッシ,ATモード
AT |
37865-50J00-000 |
— | ||
| replacement | |||||
|
23
|
23
37865-50J02-000 SWITCH ASSY,AT MODEAT |
37865-50J02-000 |
US $43.06 |
||
|
24
|
24
37285-75F00-000 CAP,OPTION SW HOLE |
37285-75F00-000 |
US $2.28 |
||
|
25
|
25
37285-75F10-000 CAP,OPTION SW HOLE |
37285-75F10-000 |
US $2.80 |
||
|
26
|
26
37285-50J00-000
キャップ,オプションスイッチホール
|
37285-50J00-000 |
— | ||
| replacement | |||||
|
26
|
26
37285-50J01-000 CAP,OPTION SWITCH HOLE |
37285-50J01-000 |
US $3.35 |
||
|
27
|
27
35180-64G00-000 SWITCH ASSY,HEADLAMP LEVELINGGermany,Saudi Arabia,Israel |
35180-64G00-000 |
US $125.86 |
||
|
28
|
28
39410-60A01-000 SOCKET ASSY |
39410-60A01-000 |
US $33.60 |
||
|
29
|
29
33945-82C10-000 SENSOR ASSY,GW/ABS |
33945-82C10-000 |
US $283.36 |
||
|
30
|
30
09132-06010-000 SCREW(6X16)W/ABS |
09132-06010-000 |
from US $1.08 |
||
|
31
|
31
38910-54J10-000
CONTROLLER ASSY,A/B
W/AIR BAG:EXC/,Taiwan |
38910-54J10-000 |
— | ||
|
31
|
31
38910-54J00-000
CONTROLLER ASSY,A/B
W/AIR BAG:,Taiwan |
38910-54J00-000 |
— | ||
|
32
|
32
09115-06003-000 BOLT(6X16)W/AIR BAG |
09115-06003-000 |
US $10.70 |
||
|
33
|
33
37211-50J10-000 BRACKET,OPTION SW2 SWITCH HOLE |
37211-50J10-000 |
US $11.59 |
||
|
33
|
33
37211-50J00-000 BRACKET,OPTION SW4 SWITCH HOLE |
37211-50J00-000 |
US $4.89 |
||
|
34
|
34
38860-50J00-000 RELAY ASSY,RR WIPER |
38860-50J00-000 |
US $37.90 |
||
|
35
|
35
03141-05083-000
Screw
|
03141-05083-000 |
— | ||
| replacement | |||||
|
35
|
35
03141-0508A-000 SCREW |
03141-0508A-000 |
US $7.70 |
||
|
36
|
36
33970-50J00-000 CONTROLLER ASSY,IMMOBILIZERGermany,Saudi Arabia,Israel |
33970-50J00-000 |
US $335.46 |
||
|
37
|
37
02162-06103-000
Bolt
Germany,Saudi Arabia,Israel |
02162-06103-000 |
— | ||
| replacement | |||||
|
37
|
37
02162-0610A-000 SCREWGermany,Saudi Arabia,Israel |
02162-0610A-000 |
from US $0.64 |
||
|
38
|
38
37955-50J00-000 SWITCH ASSY,MIRROR HEATERW/MIRROR HEATER |
37955-50J00-000 |
US $50.05 |
||
|
39
|
39
37270-50J00-000 SWITCH ASSY,FR FOGW/FRONT FOG LAMP |
37270-50J00-000 |
US $85.60 |
||
|
40
|
40
38860-76F01-000 RELAY ASSYRelay, starting motor W/FRONT FOG LAMP |
38860-76F01-000 |
from US $24.91 |
||
|
41
|
41
74522-54J00-5PK CAP,4WD SWEXC/Taiwan |
74522-54J00-5PK |
US $6.81 |
||
|
42
|
42
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
42
|
42
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
43
|
43
74523-54J00-P4Z
Cap,auto light sensor(gray)
|
74523-54J00-P4Z |
— | ||
| replacement | |||||
|
43
|
43
74523-54J00-5PK CAP,AUTO LIGHT SNSR |
74523-54J00-5PK |
US $1.68 |
||
|
44
|
44
36770-50J21-000
CONTROLLER ASSY,BODY ELEC
Germany,Israel |
36770-50J21-000 |
— | ||
|
44
|
44
36770-51J91-000
CONTROLLER ASSY,BODY ELEC
AT:,0,Brazil,China |
36770-51J91-000 |
— | ||
|
44
|
44
36770-51J21-000
CONTROLLER ASSY,BODY ELEC
AT:Germany,Israel |
36770-51J21-000 |
— | ||
|
44
|
44
36770-51J71-000
CONTROLLER ASSY,BODY ELEC
AT:Saudi Arabia |
36770-51J71-000 |
— | ||
|
44
|
44
36770-51J30-000
Controller, body electoric
AT:Taiwan |
36770-51J30-000 |
— | ||
| replacement | |||||
|
44
|
44
36770-51J31-000
CONTROLLER ASSY,BODY ELECTRIC
AT:Taiwan |
36770-51J31-000 |
— | ||
|
45
|
45
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.40 |
||
|
46
|
46
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
46
|
46
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
47
|
47
36781-50J00-000 COVER,HARNESS |
36781-50J00-000 |
US $15.53 |
||
|
48
|
48
09403-23302-000 CLAMP |
09403-23302-000 |
US $19.10 |
||
|
49
|
49
37190-50J10-000 CONTROLLER ASSY,KEYLESSW/KEYLESS ENTRY |
37190-50J10-000 |
US $200.56 |
||
|
50
|
50
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
50
|
50
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
51
|
51
39600-50J00-000
CONTROLLER ASSY,ILLUM
Taiwan |
39600-50J00-000 |
— | ||
|
54
|
54
38860-76F01-000 RELAY ASSYRelay, starting motor AT:Saudi Arabia:W/AUTO CRUISE |
38860-76F01-000 |
from US $24.91 |
||
|
55
|
55
37880-50J00-6GS
SWITCH SET,SUN ROOF
W/SUN ROOF |
37880-50J00-6GS |
— | ||
|
55
|
55
37880-50J00-R8H
SWITCH SET,SUN ROOF
W/SUN ROOF |
37880-50J00-R8H |
— | ||
|
56
|
56
37882-50J00-6GS COVER,SUN ROOF SWW/SUN ROOF |
37882-50J00-6GS |
US $8.13 |
||
|
56
|
56
37882-50J00-R8H
COVER,SUN ROOF SW
W/SUN ROOF |
37882-50J00-R8H |
— | ||
|
57
|
57
03142-05103-000
Screw
W/SUN ROOF |
03142-05103-000 |
— | ||
| replacement | |||||
|
57
|
57
03142-0510B-000 SCREWW/SUN ROOF |
03142-0510B-000 |
US $0.80 |
||
|
58
|
58
38680-50J00-000 SENSOR ASSY,AUTO LIGHTTaiwan |
38680-50J00-000 |
US $72 |
||
|
59
|
59
38930-52D00-000
SENSOR ASSY,FORWARD,R
W/AIR BAG |
38930-52D00-000 |
— | ||
|
60
|
60
38930-52D10-000
SENSOR ASSY,FORWARD,L
W/AIR BAG |
38930-52D10-000 |
— | ||
|
61
|
61
09116-06174-000
BOLT(6X16)
W/AIR BAG |
09116-06174-000 |
— | ||
