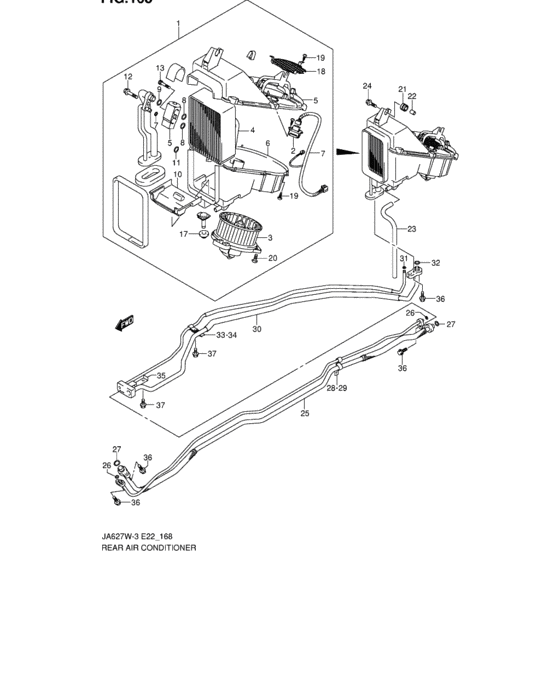

Rear air conditioner (W/DUAL AIR CON) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95400-54J00-000
COOLING ASSY,RR
|
95400-54J00-000 |
— | ||
|
2
|
2
74140-66D00-000 RESISTOR,BLOWER MOTOR |
74140-66D00-000 |
US $48.58 |
||
|
3
|
3
74250-60G00-000 MOTOR |
74250-60G00-000 |
US $464.64 |
||
|
4
|
4
95410-54J20-000 EVAPORATOR ASSY |
95410-54J20-000 |
US $464.64 |
||
|
5
|
5
95431-54J20-000 VALVE,EXPANSION |
95431-54J20-000 |
from US $95.15 |
||
|
6
|
6
95432-54J20-000
PIPE ASSY
|
95432-54J20-000 |
— | ||
|
7
|
7
95891-54J00-000 O-RING |
95891-54J00-000 |
US $1.60 |
||
|
8
|
8
95896-54J00-000 O-RING |
95896-54J00-000 |
from US $1.60 |
||
|
9
|
9
95896-54J00-000 O-RING |
95896-54J00-000 |
from US $1.60 |
||
|
10
|
10
95462-54J20-000
LINING
|
95462-54J20-000 |
— | ||
|
11
|
11
95897-54J00-000 O-RING |
95897-54J00-000 |
US $1.60 |
||
|
12
|
12
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
12
|
12
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
13
|
13
07130-05353-000
Bolt
|
07130-05353-000 |
— | ||
| replacement | |||||
|
13
|
13
07130-0535B-000 Bolt |
07130-0535B-000 |
from US $4.28 |
||
|
14
|
14
95421-66D00-000
CASE,EVAPO,UPPER
|
95421-66D00-000 |
— | ||
|
15
|
15
95422-66D00-000
CASE,EVAPO,LOWER
|
95422-66D00-000 |
— | ||
|
16
|
16
95537-54J00-000
HARNESS
|
95537-54J00-000 |
— | ||
|
17
|
17
95851-66D00-000
CUSHION
|
95851-66D00-000 |
— | ||
|
18
|
18
95861-66D00-000 FILTER |
95861-66D00-000 |
US $43.79 |
||
|
19
|
19
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
20
|
20
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
20
|
20
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
20
|
20
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
21
|
21
13877-65D00-000 COLLAR,7.6X10X19.3 |
13877-65D00-000 |
US $3.04 |
||
|
22
|
22
13878-65D00-000 CUSHION,12.5X22X19.5 |
13878-65D00-000 |
US $2.74 |
||
|
23
|
23
95481-66D00-000
HOSE,DRAIN
|
95481-66D00-000 |
— | ||
|
24
|
24
09116-06129-000 BOLT(6X30) |
09116-06129-000 |
US $1.44 |
||
|
25
|
25
95733-54J00-000
パイプ,リキッド,NO.2
|
95733-54J00-000 |
— | ||
| replacement | |||||
|
25
|
25
95733-54J01-000 PIPE,LIQUID NO.2 |
95733-54J01-000 |
US $281.52 |
||
|
26
|
26
95891-54J00-000 O-RING |
95891-54J00-000 |
US $1.60 |
||
|
27
|
27
95896-54J00-000 O-RING |
95896-54J00-000 |
from US $1.60 |
||
|
28
|
28
95772-54J00-000
CLIP
|
95772-54J00-000 |
— | ||
|
29
|
29
95773-54J00-000 CLIP |
95773-54J00-000 |
US $10.78 |
||
|
30
|
30
95734-54J00-000
パイプ,リキッド,NO.3
|
95734-54J00-000 |
— | ||
| replacement | |||||
|
30
|
30
95734-54J10-000 PIPE,LIQUID NO.3 |
95734-54J10-000 |
US $220.80 |
||
|
31
|
31
95891-54J00-000 O-RING |
95891-54J00-000 |
US $1.60 |
||
|
32
|
32
95896-54J00-000 O-RING |
95896-54J00-000 |
from US $1.60 |
||
|
33
|
33
95775-54J00-000
CLIP
|
95775-54J00-000 |
— | ||
|
34
|
34
95776-54J00-000
CLIP
|
95776-54J00-000 |
— | ||
|
35
|
35
95774-54J00-000
BRACKET
|
95774-54J00-000 |
— | ||
|
36
|
36
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
36
|
36
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
37
|
37
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
37
|
37
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
