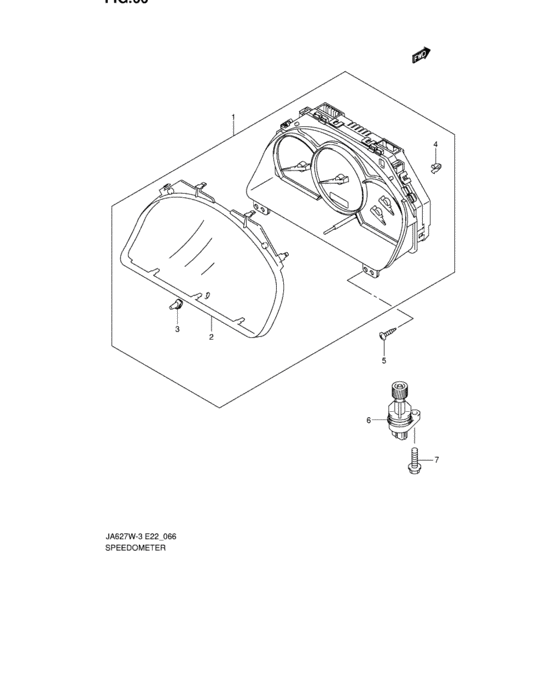

Speedometer (SPEEDOMETER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-52JD0-000
Speedometer assy
AT:,,,1 |
34100-52JD0-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-52JD2-000
SPEEDOMETER ASSY,COMB
AT:,,,1 |
34100-52JD2-000 |
— | ||
|
1
|
1
34100-52JR0-000
Speedometer assy
AT:,,,1 |
34100-52JR0-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-52JR1-000
SPEEDOMETER ASSY,COMB
AT:,,,1 |
34100-52JR1-000 |
— | ||
|
1
|
1
34100-52J10-000
スピードメータアッシ,コンビネーション
AT:Australia,Taiwan,Saudi Arabia |
34100-52J10-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-52J12-000
SPEEDOMETER ASSY,COMB
AT:Australia,Taiwan,Saudi Arabia |
34100-52J12-000 |
— | ||
|
2
|
2
34112-50J00-000 GLASS,SPEEDOMETER |
34112-50J00-000 |
US $35.73 |
||
|
3
|
3
34145-65D00-000 COVER,TRIP KNOB |
34145-65D00-000 |
US $7.68 |
||
|
4
|
4
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
5
|
5
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
5
|
5
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
6
|
6
34910-65D00-000
Sensor assy,speed
AT |
34910-65D00-000 |
— | ||
| replacement | |||||
|
6
|
6
34910-65D01-000 SENSOR ASSY,SPEEDAT |
34910-65D01-000 |
US $182.40 |
||
|
7
|
7
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
7
|
7
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
