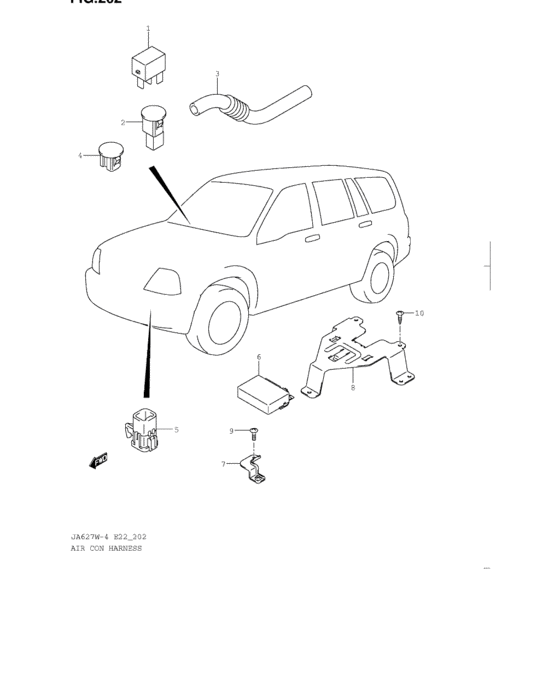

Air con harness (AIR CON HARNESS) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
2
|
2
95642-54J00-000
センサ,サンライト
W/AUTO AIR CON |
95642-54J00-000 |
— | ||
| replacement | |||||
|
2
|
2
95642-54J01-000 SENSOR,SUN LIGHTW/AUTO AIR CON |
95642-54J01-000 |
from US $32 |
||
|
3
|
3
95647-54J00-000 DUCT,ROOM TEMP SNSRW/AUTO AIR CON |
95647-54J00-000 |
US $25.39 |
||
|
4
|
4
74523-54J00-P4Z
Cap,auto light sensor(gray)
|
74523-54J00-P4Z |
— | ||
| replacement | |||||
|
4
|
4
74523-54J00-5PK CAP,AUTO LIGHT SNSR |
74523-54J00-5PK |
US $1.68 |
||
|
4
|
4
74523-54J00-R8R CAP,SUN LIGHT SNSR |
74523-54J00-R8R |
US $3.90 |
||
|
5
|
5
95643-65D00-000 SENSOR,OUTSIDE TEMPW/AUTO AIR CON |
95643-65D00-000 |
from US $26.31 |
||
|
6
|
6
95510-64G00-000
CONTROLLER,A/C
JA420WD |
95510-64G00-000 |
— | ||
|
7
|
7
33924-50J10-000 BRACKET,EPI CONTLHD:JA420WD |
33924-50J10-000 |
US $5.59 |
||
|
7
|
7
33924-50J20-000
BRACKET,EPI CONT
RHD:JA420WD |
33924-50J20-000 |
— | ||
|
8
|
8
95591-53J00-000
BRACKET,A/C CONTROLLER
JA420WD |
95591-53J00-000 |
— | ||
|
9
|
9
02142-05103-000
Screw 5x10
JA420WD |
02142-05103-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0510B-000 SCREWBolt JA420WD |
02142-0510B-000 |
from US $0.76 |
||
|
10
|
10
03541-05123-000
Screw
JA420WD |
03541-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0512B-000 SCREWJA420WD |
03541-0512B-000 |
from US $0.76 |
||
