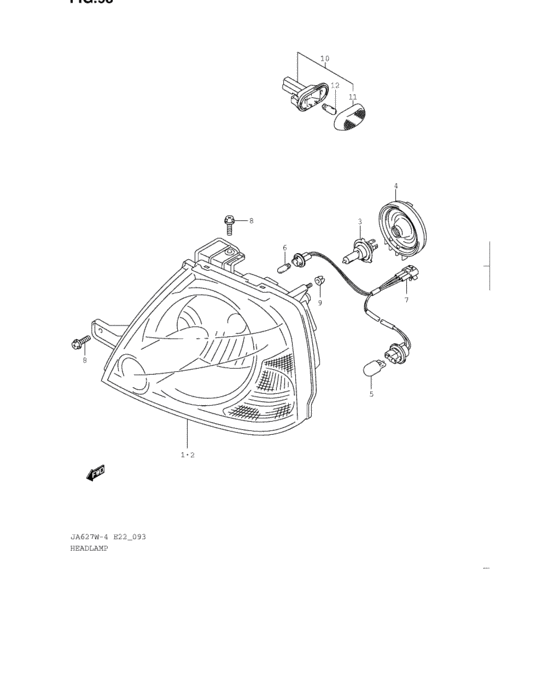

Front lamp (FRONT LAMP) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-50J40-000 UNIT,HEADLAMP,R,0,Brazil,China,Guatemala |
35120-50J40-000 |
US $349.60 |
||
|
1
|
1
35120-50J30-000
UNIT,HEADLAMP,R
|
35120-50J30-000 |
— | ||
|
1
|
1
35120-50J10-000
UNIT,HEADLAMP,R
,General,Australia,Trinidad and Tobago |
35120-50J10-000 |
— | ||
|
1
|
1
35120-50J20-000 UNIT,HEADLAMP,RGermany,Saudi Arabia,Israel |
35120-50J20-000 |
from US $326.79 |
||
|
1
|
1
35120-50J00-000 UNIT,HEADLAMP,RTaiwan |
35120-50J00-000 |
US $290.72 |
||
|
2
|
2
35320-50J40-000 UNIT,HEADLAMP,L,0,Brazil,China,Guatemala |
35320-50J40-000 |
US $349.60 |
||
|
2
|
2
35320-50J30-000
UNIT,HEADLAMP,L
|
35320-50J30-000 |
— | ||
|
2
|
2
35320-50J10-000
UNIT,HEADLAMP,L
,General,Australia,Trinidad and Tobago |
35320-50J10-000 |
— | ||
|
2
|
2
35320-50J20-000 UNIT,HEADLAMP,LGermany,Saudi Arabia,Israel |
35320-50J20-000 |
US $429.44 |
||
|
2
|
2
35320-50J00-000 UNIT,HEADLAMP,LTaiwan |
35320-50J00-000 |
US $349.60 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4),,,0,1,2,4,Brazil,,Saudi Arabia,China,Israel,India,Trinidad and Tobago,Guatemala |
09471-12182-000 |
from US $26.98 |
||
|
3
|
3
09471-12183-000 BULB(12V60/55W HB2)Taiwan |
09471-12183-000 |
US $507.80 |
||
| replacement | |||||
|
3
|
3
09471-12183-CDN
Headlight bulb 9003l
Taiwan |
09471-12183-CDN |
— | ||
|
4
|
4
35179-64G00-000 COVER,SOCKET |
35179-64G00-000 |
from US $12.64 |
||
|
5
|
5
09471-12202-000 BULB(12V21W/WY21W,AMBER),,,0,1,2,4,Brazil,,Saudi Arabia,China,Israel,India,Trinidad and Tobago,Guatemala |
09471-12202-000 |
from US $5.76 |
||
|
5
|
5
09471-12192-000 BULB(12V21/5W)Taiwan |
09471-12192-000 |
from US $3.19 |
||
|
6
|
6
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
7
|
7
35618-50J10-000
SOCKET&CORD ASSY
,,,0,1,2,4,Brazil,,Saudi Arabia,China,Israel,India,Trinidad and Tobago,Guatemala |
35618-50J10-000 |
— | ||
|
7
|
7
35618-50J00-000
SOCKET&CORD ASSY
Taiwan |
35618-50J00-000 |
— | ||
|
8
|
8
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
35153-60G00-000 GROMMET,LAMP |
35153-60G00-000 |
from US $1.60 |
||
|
10
|
10
36410-75F01-000 LAMP ASSY,SIDE TURN SIG,,,0,1,2,4,Brazil,,Saudi Arabia,China,Israel,India,Trinidad and Tobago,Guatemala |
36410-75F01-000 |
from US $15.21 |
||
|
11
|
11
36412-75F00-000 LENS,SIDE TURN,,,0,1,2,4,Brazil,,Saudi Arabia,China,Israel,India,Trinidad and Tobago,Guatemala |
36412-75F00-000 |
from US $4.03 |
||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) ,,,0,1,2,4,Brazil,,Saudi Arabia,China,Israel,India,Trinidad and Tobago,Guatemala |
09471-12216-000 |
from US $2.84 |
||
