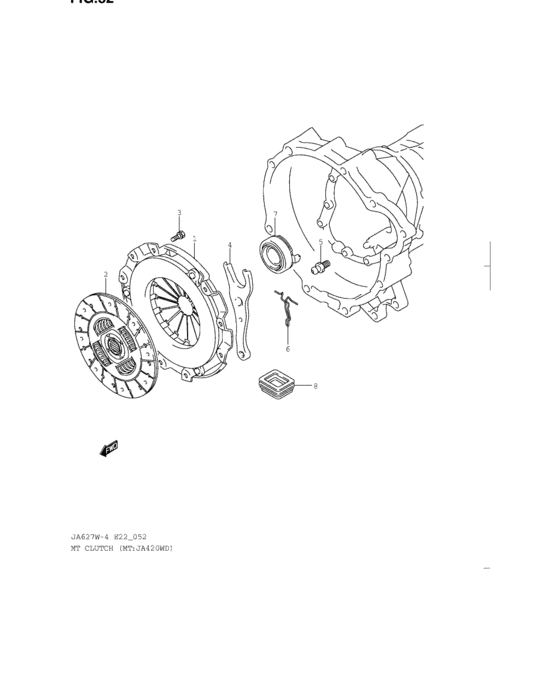

Mt clutch (MT:JA420WD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-68D20-000 COVER ASSY,CLUTCH |
22100-68D20-000 |
US $213.44 |
||
|
1
|
1
22100-68D40-000 COVER ASSY,CLUTCHJSAHTX83V00310780~ |
22100-68D40-000 |
US $213.44 |
||
|
2
|
2
22400-68D20-000 DISC,CLUTCH |
22400-68D20-000 |
US $294.40 |
||
|
2
|
2
22400-68D40-000
DISC,CLUTCH
JSAHTX83V00310780~ |
22400-68D40-000 |
— | ||
| replacement | |||||
|
2
|
2
22400-68D41-000 DISC,CLUTCHJSAHTX83V00310780~ |
22400-68D41-000 |
US $294.40 |
||
|
3
|
3
09117-08096-000 BOLT(8X16) |
09117-08096-000 |
US $1.28 |
||
|
4
|
4
23211-85F01-000 FORK,CLUTCH RELEASE |
23211-85F01-000 |
US $56.80 |
||
|
5
|
5
23221-78A00-000 SUPPORT,CLUTCH RELEASE FORK |
23221-78A00-000 |
US $9.12 |
||
|
6
|
6
23241-50F00-000 CLIP,CLUTCH RELEASE FORK |
23241-50F00-000 |
US $4.80 |
||
|
7
|
7
23265-65D00-000 BEARING,CLUTCH RELEASE |
23265-65D00-000 |
US $130.40 |
||
|
8
|
8
23268-50F01-000 BOOT,CLUTCH RELEASE FORK |
23268-50F01-000 |
US $8.80 |
||
