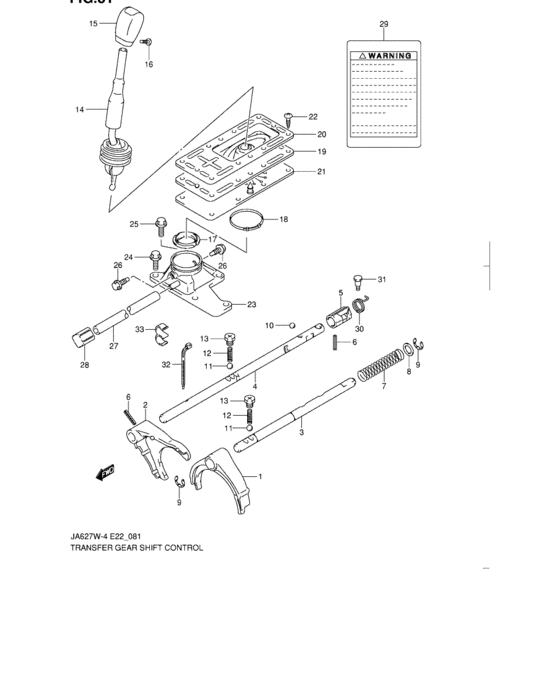

Transfer gear shifting (TRANSFER GEAR SHIFTING) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29311-85F42-000 FORK,T/F FR DRIVE SHF |
29311-85F42-000 |
US $128 |
||
|
2
|
2
29321-60A11-000 FORK,T/F REDUCTION SHIFT |
29321-60A11-000 |
US $128 |
||
|
3
|
3
29331-82D30-000
SHAFT,T/F FRONT DRIVE SHIFT
|
29331-82D30-000 |
— | ||
|
4
|
4
29332-78E01-000 SHAFT,T/F REDUCTION SHIFT |
29332-78E01-000 |
US $35.33 |
||
|
5
|
5
29339-78E00-000
YOKE,REDUCTION SHIFT SFT
|
29339-78E00-000 |
— | ||
|
6
|
6
09205-05012-000 PIN,SPRING(5X25) |
09205-05012-000 |
US $1.22 |
||
|
7
|
7
09440-18028-000 SPRING |
09440-18028-000 |
US $27.20 |
||
|
8
|
8
09181-14167-000 SHIM(14X22X1)Washer, gear shift rh |
09181-14167-000 |
from US $1.60 |
||
|
9
|
9
09383-10002-000 E RING |
09383-10002-000 |
US $18.40 |
||
|
10
|
10
06111-12004-000 BALL |
06111-12004-000 |
from US $1.12 |
||
|
11
|
11
06111-10003-000 BALL |
06111-10003-000 |
from US $0.80 |
||
|
12
|
12
29415-60A00-000 SPRING,T/F GEAR SHF SFT LCTG |
29415-60A00-000 |
US $2.72 |
||
|
13
|
13
09128-10002-000 BOLT(10X9) |
09128-10002-000 |
from US $1.28 |
||
|
14
|
14
29300-50J32-000
LEVER ASSY,T/F GEAR SHF CONT
|
29300-50J32-000 |
— | ||
|
15
|
15
29344-50J00-KN1
KNOB,T/F GR SHF CONT LVR
|
29344-50J00-KN1 |
— | ||
| replacement | |||||
|
15
|
15
29344-50J01-KN1 KNOB,T/F GR SHF CONT LVR |
29344-50J01-KN1 |
US $45.63 |
||
|
15
|
15
29344-50JK0-KN1
KNOB,T/F GR SHF CONT LVR
LIMITED |
29344-50JK0-KN1 |
— | ||
|
16
|
16
09125-06114-000 SCREW(6X15) |
09125-06114-000 |
US $21.70 |
||
|
17
|
17
29535-60A00-000 SEAT,T/F GEAR SHF LEVER |
29535-60A00-000 |
US $2.58 |
||
|
18
|
18
09401-57901-000 CLAMP |
09401-57901-000 |
US $7.84 |
||
|
19
|
19
29346-50J00-000 BOOT,T/F GR SHF LEVER NO.2 |
29346-50J00-000 |
US $25.39 |
||
|
20
|
20
29347-50J00-000 COVER,T/F LVR BOOT |
29347-50J00-000 |
US $16.67 |
||
|
21
|
21
29349-60A11-000 SHEET,T/F GEAR SHIFT LEVER |
29349-60A11-000 |
US $27.36 |
||
|
22
|
22
03141-06203-000
Screw
|
03141-06203-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0620A-000 SCREW |
03141-0620A-000 |
US $0.80 |
||
|
23
|
23
29750-78E00-000
CASE,T/F LEVER
|
29750-78E00-000 |
— | ||
|
24
|
24
01550-08203-000
Bolt
JA627W |
01550-08203-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0820B-000 BoltJA627W |
01550-0820B-000 |
from US $0.91 |
||
|
24
|
24
01550-0820A-000 BOLTBolt, funnel bracket JA627W |
01550-0820A-000 |
from US $0.96 |
||
|
25
|
25
01550-08253-000
Bolt, rear
JA420WD |
01550-08253-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0825B-000 BOLTJA420WD |
01550-0825B-000 |
from US $0.96 |
||
|
25
|
25
01550-0825A-000 BOLTJA420WD |
01550-0825A-000 |
from US $1.06 |
||
|
26
|
26
09103-08384-000 BOLT(8X18.4) |
09103-08384-000 |
US $19.10 |
||
|
27
|
27
09352-70113-00B
HOSE(7X11X2000)
MT,L:2000->880 |
09352-70113-00B |
— | ||
| replacement | |||||
|
27
|
27
09352-70119-00B Hose(7X11X2000)MT,L:2000->880 |
09352-70119-00B |
from US $22.40 |
||
|
29
|
29
28381-50J00-000 EMBLEM,T/F GEAR SHIFT,,,0,1,2,4,Brazil,,Taiwan,Israel,India,Trinidad and Tobago |
28381-50J00-000 |
US $5.59 |
||
|
29
|
29
28381-50J90-000
EMBLEM,T/F GEAR SHIFT
Saudi Arabia |
28381-50J90-000 |
— | ||
|
29
|
29
28381-50J40-000
EMBLEM,T/F GEAR SHIFT
China |
28381-50J40-000 |
— | ||
|
30
|
30
29338-78E00-000 SPRING,T/F SELECT RETURN |
29338-78E00-000 |
US $3.61 |
||
|
31
|
31
09111-06068-000 BOLT(6X18.5)Bolt, front (6x18.5) |
09111-06068-000 |
from US $2.89 |
||
|
32
|
32
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap MT |
09407-14403-000 |
from US $2.08 |
||
