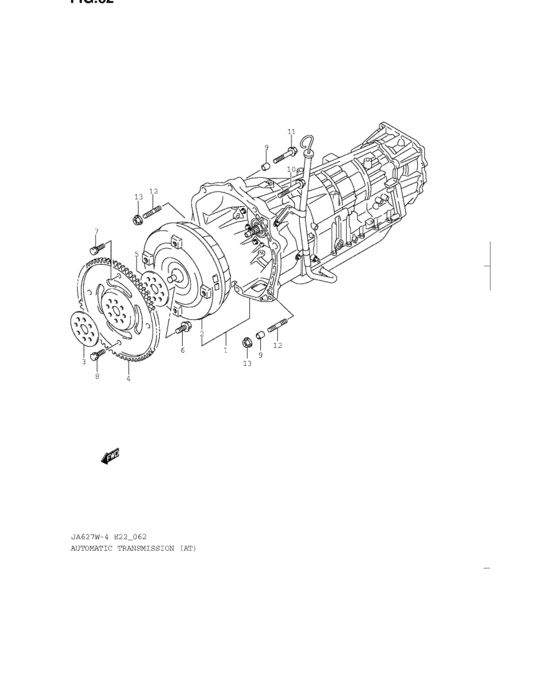

Automatic transmission (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-54JV2-000
トランスミッションアッシ,オートマチック
->21000-54JV4,USED WITH 22950-54J11 |
21000-54JV2-000 |
— | ||
| replacements | |||||
|
1
|
1
21000-54JV6-000 T/M ASSY,AUTOMATIC->21000-54JV4,USED WITH 22950-54J11 |
21000-54JV6-000 |
US $7,103.60 |
||
|
1
|
1
22950-54J11-000 GAUGE ASSY,OIL->21000-54JV4,USED WITH 22950-54J11 |
22950-54J11-000 |
US $30.73 |
||
|
1
|
1
21000-54JV4-000
トランスミッションアッシ,オートマチック
JSAHTX92V00206732~,JS3TX92V 54200494~,JSAHTX92V44200052~,JSAHTX92V40200064~ |
21000-54JV4-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-54JV6-000 T/M ASSY,AUTOMATICJSAHTX92V00206732~,JS3TX92V 54200494~,JSAHTX92V44200052~,JSAHTX92V40200064~ |
21000-54JV6-000 |
US $7,103.60 |
||
|
2
|
2
22700-54J10-000 CONVERTER,TORQUE |
22700-54J10-000 |
US $1,486.08 |
||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FR |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-85FA0-000 PLATE,TC DRIVE |
22620-85FA0-000 |
US $366.40 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RR |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5) |
09103-10282-000 |
US $2.08 |
||
|
7
|
7
09103-10286-000 BOLT(10X12) |
09103-10286-000 |
US $19.10 |
||
|
8
|
8
09103-10340-000 BOLT(10X12) |
09103-10340-000 |
US $15.10 |
||
|
9
|
9
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
US $1.92 |
||
|
10
|
10
01550-12653-000
ボルト
|
01550-12653-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1265B-000 Bolt |
01550-1265B-000 |
US $1.76 |
||
|
11
|
11
01550-12753-000
ボルト
|
01550-12753-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1275A-000 BOLT |
01550-1275A-000 |
US $1.92 |
||
|
12
|
12
09108-12007-000
Bolt,stud
|
09108-12007-000 |
— | ||
| replacement | |||||
|
12
|
12
09108-12012-000 BOLT,STUD |
09108-12012-000 |
US $2.72 |
||
|
13
|
13
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
14
|
14
24700-54JT0-000
OVERHAUL KIT,AT
NOT ILLUSTRATED |
24700-54JT0-000 |
— | ||
