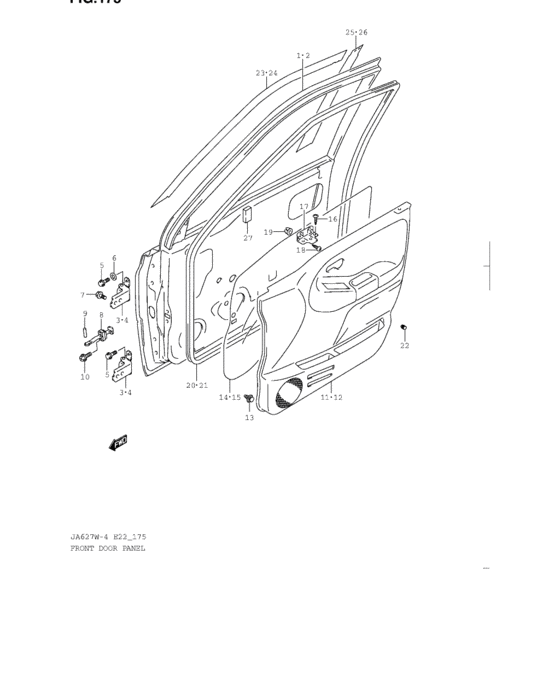

Front door panel (FRONT DOOR PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-52811-000 PANEL ASSY,FRONT DOOR,R |
68001-52811-000 |
US $739.20 |
||
|
2
|
2
68002-52811-000 PANEL ASSY,FRONT DOOR,L |
68002-52811-000 |
US $739.20 |
||
|
3
|
3
69310-65D00-000 HINGE,FR DOOR,NO.1UPPER RH,LOWER LH |
69310-65D00-000 |
US $41.95 |
||
|
4
|
4
69320-65D00-000 HINGE,FR DOOR,NO.2UPPER LH,LOWER RH |
69320-65D00-000 |
US $41.95 |
||
|
5
|
5
09103-08389-000 BOLT(8X24) |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
69480-65D00-000
Washer
|
69480-65D00-000 |
— | ||
|
7
|
7
01551-08203-000
Bolt
|
01551-08203-000 |
— | ||
| replacement | |||||
|
7
|
7
01551-0820A-000 BOLT |
01551-0820A-000 |
from US $0.96 |
||
|
8
|
8
81810-65D00-000 STOP,FRONT DOOR OPEN |
81810-65D00-000 |
US $37.24 |
||
|
9
|
9
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
10
|
10
02162-06203-000
Bolt
|
02162-06203-000 |
— | ||
| replacement | |||||
|
10
|
10
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.80 |
||
|
11
|
11
83710-65DL1-KL1
TRIM,FRONT DOOR,R
N/SPEAKER |
83710-65DL1-KL1 |
— | ||
|
11
|
11
83710-65DL1-KS5
Trim,front door,r
N/SPEAKER:,,2,Israel,India,:LIMITED |
83710-65DL1-KS5 |
— | ||
|
11
|
11
83710-65DL1-KS2
TRIM,FRONT DOOR,R
N/SPEAKER:Taiwan:,BODY COLOR:ZA4,ZA5,ZJ3,Z2T,Z5K,,ZDK,ZY8 |
83710-65DL1-KS2 |
— | ||
|
11
|
11
83710-65DK1-KL1
TRIM,FRONT DOOR,R
W/SPEAKER |
83710-65DK1-KL1 |
— | ||
|
11
|
11
83710-65DK1-KL2
TRIM,FRONT DOOR,R
W/SPEAKER,Saudi Arabia:JS3TX92V 54200153~ |
83710-65DK1-KL2 |
— | ||
|
11
|
11
83710-65DK1-KS5
Trim,front door,r
W/SPEAKER:,,Chile,2,4,Saudi Arabia,,Israel,India,Guatemala:LIMITED |
83710-65DK1-KS5 |
— | ||
| replacement | |||||
|
11
|
11
83710-65DK2-KS5
TRIM,FR DR,R
W/SPEAKER:,,Chile,2,4,Saudi Arabia,,Israel,India,Guatemala:LIMITED |
83710-65DK2-KS5 |
— | ||
|
11
|
11
83710-65DK1-KS2
Trim,front door,r
W/SPEAKER:Taiwan,China:,BODY COLOR:ZA4,ZA5,ZJ3,Z2T,Z5K,,ZDK,ZY8 |
83710-65DK1-KS2 |
— | ||
|
12
|
12
83720-65DL1-KL1
TRIM,FRONT DOOR,L
N/SPEAKER |
83720-65DL1-KL1 |
— | ||
|
12
|
12
83720-65DL1-KS5
Trim,front door,l
N/SPEAKER:,,2,Israel,India,:LIMITED |
83720-65DL1-KS5 |
— | ||
|
12
|
12
83720-65DL1-KS2
TRIM,FRONT DOOR,L
N/SPEAKER:Taiwan:,BODY COLOR:ZA4,ZA5,ZJ3,Z2T,Z5K,,ZDK,ZY8 |
83720-65DL1-KS2 |
— | ||
|
12
|
12
83720-65DK1-KL1
TRIM,FRONT DOOR,L
W/SPEAKER |
83720-65DK1-KL1 |
— | ||
|
12
|
12
83720-65DK1-KL2
Trim,front door,l
W/SPEAKER,Saudi Arabia:JS3TX92V 54200153~ |
83720-65DK1-KL2 |
— | ||
| replacement | |||||
|
12
|
12
83720-65DK2-KL2
TRIM,FR DR,L
W/SPEAKER,Saudi Arabia:JS3TX92V 54200153~ |
83720-65DK2-KL2 |
— | ||
|
12
|
12
83720-65DK1-KS5
TRIM,FRONT DOOR,L
W/SPEAKER:,,Chile,2,4,Saudi Arabia,,Israel,India,Guatemala:LIMITED |
83720-65DK1-KS5 |
— | ||
|
12
|
12
83720-65DK1-KS2
TRIM,FRONT DOOR,L
W/SPEAKER:Taiwan,China:,BODY COLOR:ZA4,ZA5,ZJ3,Z2T,Z5K,,ZDK,ZY8 |
83720-65DK1-KS2 |
— | ||
|
13
|
13
09409-08320-000 CLIP |
09409-08320-000 |
US $1.67 |
||
|
14
|
14
83911-65D01-000 COVER,FR DR SEALING,R |
83911-65D01-000 |
US $13.87 |
||
|
15
|
15
83912-65D01-000 COVER,FR DR SEALING,L |
83912-65D01-000 |
US $13.87 |
||
|
16
|
16
03142-04163-000
Screw
|
03142-04163-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0416A-000 SCREW |
03141-0416A-000 |
from US $0.80 |
||
|
17
|
17
84482-65D00-000 BRACKET,DR INSIDE PULL HANDLE |
84482-65D00-000 |
US $4.16 |
||
|
18
|
18
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
19
|
19
09148-06007-000 NUT |
09148-06007-000 |
US $0.91 |
||
|
20
|
20
84641-52D00-000 WEATHERSTRIP,FR DR OPNG,R |
84641-52D00-000 |
US $99.57 |
||
|
21
|
21
84651-52D00-000 WEATHERSTRIP,FR DR OPNG,L |
84651-52D00-000 |
US $99.57 |
||
|
22
|
22
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower |
82711-56B00-000 |
US $2.88 |
||
|
23
|
23
83921-65D00-0CB
Tape,front door sash,r(black)
BODY COLOR:ZA4,ZA5,ZY4,Z2J,Z2S,,Z2T,Z2U,Z5K,ZDK,ZY8,,ZCW |
83921-65D00-0CB |
— | ||
| replacement | |||||
|
23
|
23
83921-65D10-0CB TAPE,FR DOOR SASH ROOF,RBODY COLOR:ZA4,ZA5,ZY4,Z2J,Z2S,,Z2T,Z2U,Z5K,ZDK,ZY8,,ZCW |
83921-65D10-0CB |
US $57.78 |
||
|
24
|
24
83922-65D00-0CB
Tape,front door sash,l(black)
BODY COLOR:ZA4,ZA5,ZY4,Z2J,Z2S,,Z2T,Z2U,Z5K,ZDK,ZY8,,ZCW |
83922-65D00-0CB |
— | ||
| replacement | |||||
|
24
|
24
83922-65D10-0CB TAPE,FR DOOR SASH ROOF,LBODY COLOR:ZA4,ZA5,ZY4,Z2J,Z2S,,Z2T,Z2U,Z5K,ZDK,ZY8,,ZCW |
83922-65D10-0CB |
US $57.78 |
||
|
25
|
25
83923-65D00-0CB
Tape,front door pillar,r(black
BODY COLOR:ZA4,ZA5,ZY4,Z2J,Z2S,,Z2T,Z2U,Z5K,ZDK,ZY8,,ZCW |
83923-65D00-0CB |
— | ||
| replacement | |||||
|
25
|
25
83923-65D10-0CB TAPE,FR DOOR SASH PLR RBODY COLOR:ZA4,ZA5,ZY4,Z2J,Z2S,,Z2T,Z2U,Z5K,ZDK,ZY8,,ZCW |
83923-65D10-0CB |
US $30.18 |
||
|
26
|
26
83924-65D00-0CB
Tape,front door pillar,l(black
BODY COLOR:ZA4,ZA5,ZY4,Z2J,Z2S,,Z2T,Z2U,Z5K,ZDK,ZY8,,ZCW |
83924-65D00-0CB |
— | ||
| replacement | |||||
|
26
|
26
83924-65D10-0CB TAPE,FR DOOR SASH PLR,LBODY COLOR:ZA4,ZA5,ZY4,Z2J,Z2S,,Z2T,Z2U,Z5K,ZDK,ZY8,,ZCW |
83924-65D10-0CB |
US $30.18 |
||
|
27
|
27
11182-75F01-000 PAD,FR SASH BRKT INR |
11182-75F01-000 |
US $1.91 |
||
