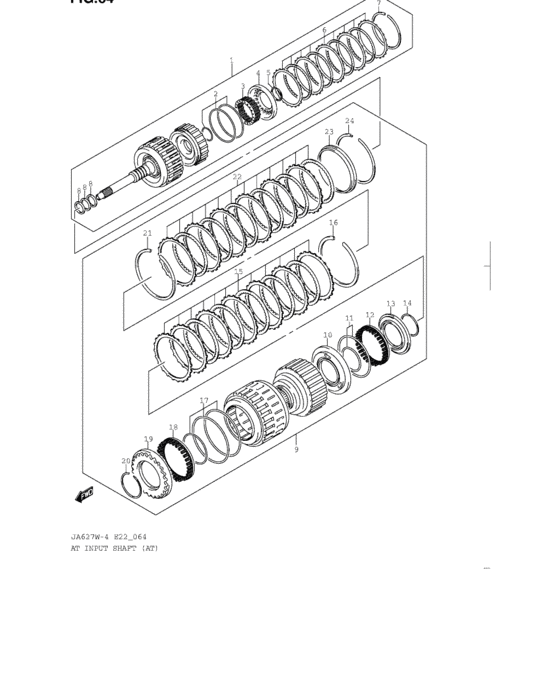

At input shaft (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24100-54J10-000
Clutch assy,forward
|
24100-54J10-000 |
— | ||
| replacement | |||||
|
1
|
1
24100-54J11-000
CLUTCH ASSY,FORWARD
|
24100-54J11-000 |
— | ||
|
2
|
2
26615-54JT0-000
O-RING SET,FWD CL PISTON
|
26615-54JT0-000 |
— | ||
|
3
|
3
26613-54J10-000
SPRING,FWD CLUTCH RETURN
|
26613-54J10-000 |
— | ||
|
4
|
4
26614-54J10-000
BALANCER,FWD CLUTCH
|
26614-54J10-000 |
— | ||
|
5
|
5
26619-54J10-000
CIRCLIP,FWD CL BALANCER
|
26619-54J10-000 |
— | ||
|
6
|
6
26616-54JT0-000 DISC SET,FORWARD CLUTCH |
26616-54JT0-000 |
US $263.12 |
||
|
7
|
7
26619-54J30-000
CIRCLIP,FWD CLUTCH PLATE
|
26619-54J30-000 |
— | ||
|
8
|
8
24161-54J10-000 RING,INPUT SHAFT OIL SEAL |
24161-54J10-000 |
from US $4.70 |
||
|
9
|
9
26600-54J11-000
クラッチアッシ,ダイレクト/リバース
|
26600-54J11-000 |
— | ||
| replacement | |||||
|
9
|
9
26600-64J10-000
CLUTCH ASSY,DIRECT&REVERSE
|
26600-64J10-000 |
— | ||
|
10
|
10
26622-54J10-000
PISTON,DIRECT CLUTCH
|
26622-54J10-000 |
— | ||
|
11
|
11
26625-54JT0-000
O-RING SET,DIRECT CL PSTN
|
26625-54JT0-000 |
— | ||
|
12
|
12
26623-54J10-000
SPRING,DIR CLUTCH RETURN
|
26623-54J10-000 |
— | ||
|
13
|
13
26624-54J10-000
BALANCER,DIRECT CLUTCH
|
26624-54J10-000 |
— | ||
|
14
|
14
26629-54J10-000
CIRCLIP,DIR CL RTN SPRING
|
26629-54J10-000 |
— | ||
|
15
|
15
26626-54JT0-000 DISC SET,DIRECT CLUTCH |
26626-54JT0-000 |
US $263.12 |
||
|
16
|
16
26629-54J30-000
CIRCLIP,DIR CLUTCH PLATE
|
26629-54J30-000 |
— | ||
|
17
|
17
26635-54JT0-000
O-RING SET,REV CLUTCH PISTON
|
26635-54JT0-000 |
— | ||
|
18
|
18
26633-54J10-000
SPRING,REV CLUTCH RETURN
|
26633-54J10-000 |
— | ||
|
19
|
19
26634-54J10-000
BALANCER,REVERSE CLUTCH
|
26634-54J10-000 |
— | ||
|
20
|
20
26639-54J10-000
CIRCLIP,REV CLUTCH BALANCER
|
26639-54J10-000 |
— | ||
|
21
|
21
26629-54J30-000
CIRCLIP,DIR CLUTCH PLATE
|
26629-54J30-000 |
— | ||
|
22
|
22
26636-54JT0-000 DISC SET,REV CLUTCH |
26636-54JT0-000 |
US $322 |
||
|
23
|
23
26631-54J10-000
SLEEVE,REV CLUTCH
|
26631-54J10-000 |
— | ||
|
24
|
24
26639-54J50-000
CIRCLIP,REV CL SLEEVE
|
26639-54J50-000 |
— | ||
