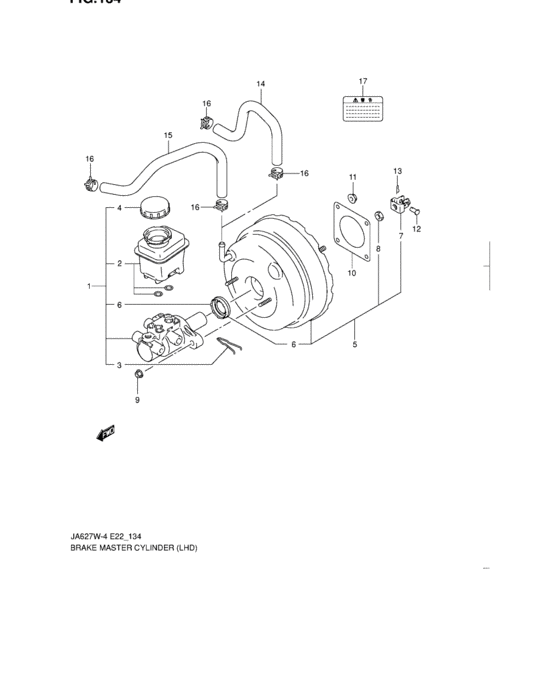

Brake master cylinder (LHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-52D30-000 CYLINDER ASSY,BRAKE MASTER,0,Germany,Brazil,Taiwan,China,Israel,Guatemala |
51100-52D30-000 |
US $325.68 |
||
|
1
|
1
51100-52D10-000 CYLINDER ASSY,BRAKE MASTERSaudi Arabia |
51100-52D10-000 |
US $325.68 |
||
|
2
|
2
51200-52D00-000 RESERVOIR ASSY,MASTER CYLINDER |
51200-52D00-000 |
US $107.82 |
||
|
3
|
3
51233-52D00-000
RETAINER,RESERVOIR
|
51233-52D00-000 |
— | ||
|
4
|
4
51290-52D10-000
CAP ASSY,RESERVOIR
|
51290-52D10-000 |
— | ||
|
5
|
5
51300-52D10-000 BOOSTER ASSY,BRAKE MASTER |
51300-52D10-000 |
US $587.84 |
||
|
6
|
6
51311-52D00-000 SEAL SET |
51311-52D00-000 |
US $16.93 |
||
|
7
|
7
51182-52D00-000
CLEVIS,MA CYL PUSH ROD
|
51182-52D00-000 |
— | ||
|
8
|
8
51349-52D00-000
NUT,MA CYL PUSH ROD
|
51349-52D00-000 |
— | ||
|
9
|
9
51313-52D00-000
NUT,BOOSTER
|
51313-52D00-000 |
— | ||
|
10
|
10
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
11
|
11
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
11
|
11
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
12
|
12
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
13
|
13
09385-10006-000 PIN,SNAPPin |
09385-10006-000 |
from US $1.60 |
||
|
14
|
14
51020-65D30-000
HOSE,BRAKE VACUUM
JA420WD |
51020-65D30-000 |
— | ||
|
15
|
15
51020-65D10-000
HOSE,BRAKE VACUUM
JA627W |
51020-65D10-000 |
— | ||
|
16
|
16
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
17
|
17
79231-65J00-000 EMBLEM,BRAKE FLUIDChina |
79231-65J00-000 |
US $2.76 |
||
