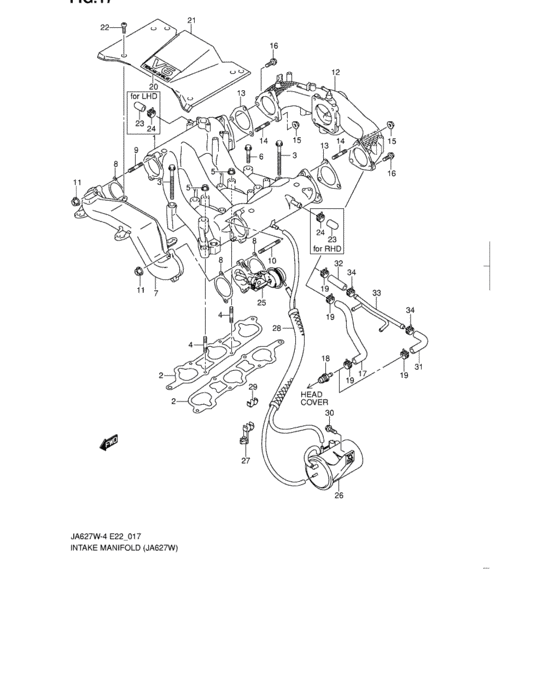

Intake manifold (JA627W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-52D10-000
MANIFOLD,INTK
|
13110-52D10-000 |
— | ||
|
2
|
2
13119-77E00-000 GASKET,INTK MANF |
13119-77E00-000 |
from US $13.91 |
||
|
3
|
3
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
US $1.76 |
||
|
4
|
4
01421-08853-000
Stud bolt
|
01421-08853-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0885A-000 BOLT,STUD |
01421-0885A-000 |
from US $6.46 |
||
|
5
|
5
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
01550-08453-000
Bolt,cylinder h
|
01550-08453-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0845B-000 BOLT |
01550-0845B-000 |
from US $1.06 |
||
|
6
|
6
01550-0845A-000 BOLTBolt, oil pump (s) |
01550-0845A-000 |
US $5.03 |
||
|
7
|
7
13131-67D10-000 PIPE,SURGE TANK |
13131-67D10-000 |
US $104.88 |
||
|
8
|
8
13139-67D00-000 GASKET,SURGE TANK PIPE |
13139-67D00-000 |
from US $2.72 |
||
|
9
|
9
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
10
|
10
01421-08403-000
Stud bolt (l:40)
|
01421-08403-000 |
— | ||
| replacement | |||||
|
10
|
10
01421-0840A-000 BOLT,STUDStud bolt (8x40) |
01421-0840A-000 |
from US $4.13 |
||
|
11
|
11
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
13140-52D00-000
COLLECTOR,INTAKE
|
13140-52D00-000 |
— | ||
|
13
|
13
13122-67D00-000 GASKET,COLLECTOR |
13122-67D00-000 |
from US $5.47 |
||
|
14
|
14
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
14
|
14
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
15
|
15
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
16
|
16
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
16
|
16
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
17
|
17
11190-77820-000 HOSE&PIPE SET,PCV H27~JSAHTX92V00207549,~JSAHTX92V50200056,~JSAHTX92V44200055,~JS3TX92V 54200752 |
11190-77820-000 |
US $42.69 |
||
|
18
|
18
18118-65D00-000 VALVE,PCV |
18118-65D00-000 |
from US $32.47 |
||
|
19
|
19
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
|
20
|
20
11965-77E11-000 LABEL,V6 |
11965-77E11-000 |
US $10.56 |
||
|
21
|
21
13170-77E02-000 COVER,SURGE TANK |
13170-77E02-000 |
from US $49.28 |
||
|
22
|
22
09125-06105-000 SCREW(6X20) |
09125-06105-000 |
from US $1.60 |
||
|
23
|
23
09251-09003-000 PLUG |
09251-09003-000 |
US $21.70 |
||
|
24
|
24
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
|
25
|
25
13460-52D00-000 VALVE,INTAKE CONTROL |
13460-52D00-000 |
US $244.80 |
||
|
26
|
26
13480-67D00-000
TANK ASSY,VACUUM
|
13480-67D00-000 |
— | ||
|
27
|
27
13482-52D00-000
CLIP,VACUUM HOSE
|
13482-52D00-000 |
— | ||
|
28
|
28
13481-52D00-000
HOSE,VACUUM
|
13481-52D00-000 |
— | ||
|
29
|
29
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
30
|
30
09118-06106-000 BOLT(6X16) |
09118-06106-000 |
from US $1.15 |
||
|
31
|
31
11193-77E10-000 HOSE,PCV NO.1JSAHTX92V00207550~,JSAHTX92V50200057~,JSAHTX92V44200056~,JS3TX92V 54200753~ |
11193-77E10-000 |
US $8.35 |
||
|
32
|
32
11194-77E10-000 HOSE,PCV NO.2JSAHTX92V00207550~,JSAHTX92V50200057~,JSAHTX92V44200056~,JS3TX92V 54200753~ |
11194-77E10-000 |
US $7.40 |
||
|
33
|
33
11195-77E10-000
PIPE,PCV
JSAHTX92V00207550~,JSAHTX92V50200057~,JSAHTX92V44200056~,JS3TX92V 54200753~ |
11195-77E10-000 |
— | ||
|
34
|
34
09401-13414-000 CLIPClip, pcv hose JSAHTX92V00207550~,JSAHTX92V50200057~,JSAHTX92V44200056~,JS3TX92V 54200753~ |
09401-13414-000 |
from US $1.60 |
||
